Cloning and Functional Analysis of GhNAC1 in Upland Cotton Involved in Verticillium Wilt Resistance

doi:10.13304/j.nykjdb.2022.0280

Abstract

Abstract:

Verticillium wilt is one of the important reasons for cotton quality and yield decline.It is of great significance to explore the resistance mechanism of cotton for promoting the sustainable development of ecological agriculture. A plant-specific NAC transcription factor gene related to Verticillium wilt resistance was identified and named as GhNAC1 in the full-length cDNA library of upland cotton ND601 root stressed by Verticillium dahliae. The cDNA sequence was 1 213 bp with an open reading frame of 840 bp， encoding 279 amino acids. GhNAC1 had no signal peptide and transmembrane structure， and was located in the nucleus. qRT-PCR analysis showed that GhNAC1 was specifically and significantly upregulated in root under V. dahliae， and the expression level in resistant cultivars was observably higher than in susceptible cultivars. Silencing GhNAC1 decreased cotton resistance to Verticillium wilt， and the expression levels of salicylic acid pathway marker genes （PAD4， NDR1， NPR1 and PR1） weakened. These results suggested that GhNAC1 might positively regulated Verticillium wilt resistance in cotton via salicylic acid signal pathway.

Key words: cotton, NAC transcription factor, Verticillium wilt resistance, VIGS, gene function

摘要：

黄萎病是造成棉花品质与产量下降的重要原因之一，探索棉花抗病机制对推动生态农业的可持续发展具有深远意义。在黄萎病菌胁迫的陆地棉ND601根组织全长cDNA文库中，筛选到1个与黄萎病胁迫相关的植物特异NAC转录因子基因，将其命名为GhNAC1。该基因cDNA序列全长1 213 bp，开放阅读框840 bp，编码279个氨基酸。GhNAC1没有信号肽和跨膜结构，定位在细胞核。qRT-PCR分析结果表明，GhNAC1受黄萎病菌胁迫后在根部特异表达，显著上调，表达量在抗性品种中显著高于感病品种。GhNAC1沉默后棉花对黄萎病抗性降低，水杨酸路径标志基因（PAD4、NDR1、NPR1和PR1）表达量降低，以上结果表明GhNAC1可能通过调控水杨酸信号通道参与棉花黄萎病抗性。

关键词: 棉花, NAC转录因子, 黄萎病抗性, 病毒诱导的基因沉默, 基因功能

CLC Number:

S562

Man ZHANG, Jin ZHANG, Xinyu ZHANG, Guoning WANG, Xingfen WANG, Yan ZHANG. Cloning and Functional Analysis of GhNAC1 in Upland Cotton Involved in Verticillium Wilt Resistance[J]. Journal of Agricultural Science and Technology, 2023, 25(10): 35-44.

张曼, 张进, 张新雨, 王国宁, 王省芬, 张艳. 陆地棉GhNAC1基因的克隆及抗黄萎病功能分析[J]. 中国农业科技导报, 2023, 25(10): 35-44.

Figures/Tables 6

Table 1 Primers used in this experiment

引物名称 Primer name	引物序列 Primer sequence（5’-3’）	用途 Utilization
NAC1-F	ATGAGCTACCAATCAAACC	基因克隆Gene cloning
NAC1-R	TTAAAAGTTGAGGATATTAGC	基因克隆Gene cloning
NAC1-RT-F	GAACACATCTCTTCCTTCATCATCTT	实时定量PCR Real-time PCR
NAC1-RT-R	AGTTGTCCCATATTTTCATTGCCTA	实时定量PCR Real-time PCR
NAC1-V-F	GAATTCGGTTGAACTTCCTGGCTTTA	载体构建Vector construction
NAC1-V-R	GGTACCGCAAAGTAGCATCAGGGAG	载体构建Vector construction
NAC1-G-F	GGGGACAAGTTTGTACAAAAAAGCAGGCTTCATGA GCTACCAATCAAACC	载体构建Vector construction
NAC1-G-R	GGGGACCACTTTGTACAAGAAAGCTGGGTGAAAGTT GAGGATATTAGC	载体构建Vector construction
GhUBQ14-F	CAACGCTCCATCTTGTCCTT	实时定量PCR Real-time PCR
GhUBQ14-R	TAGTCGTCTTTCCCGTAAGC	实时定量PCR Real-time PCR
GhNDR1-F	CCCGTAACCAAGGAGGCTGT	实时定量PCR Real-time PCR
GhNDR1-R	CTGCTAAGGGAAGGCAAGGATAG	实时定量PCR Real-time PCR
GhNPR1-F	GTCTGGCTGATGTCAATCTGCG	实时定量PCR Real-time PCR
GhNPR1-R	TCCTTCCCTTGCTCTGTCTTGG	实时定量PCR Real-time PCR
GhPR1-F	GGCACAGAACTACGCTAATCAACG	实时定量PCR Real-time PCR
GhPR1-R	GCTTTACCCTCTCACTAACCCACAT	实时定量PCR Real-time PCR
GhPAD4-F	GGATGGAAGAATGGAAAGAAATGAA	实时定量PCR Real-time PCR
GhPAD4-R	GAACTAGGAAAGCAGACTAAGGAACCA	实时定量PCR Real-time PCR

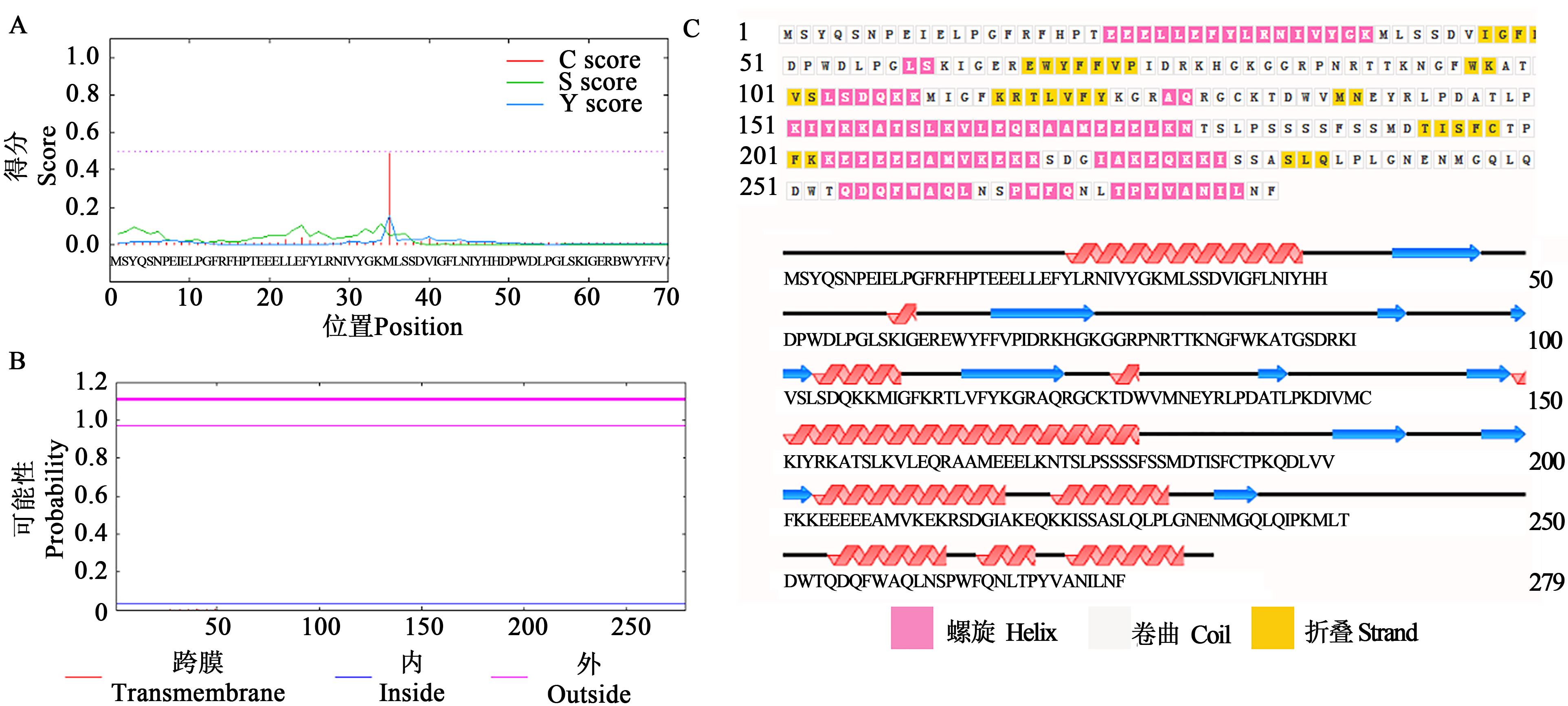

Fig. 2 Structure analysis of GhNAC1 proteinA： Prediction result of GhNAC1 signal peptide； B： Prediction result of GhNAC1 transmembrane domain； C： Prediction of secondary structure of GhNAC1 protein

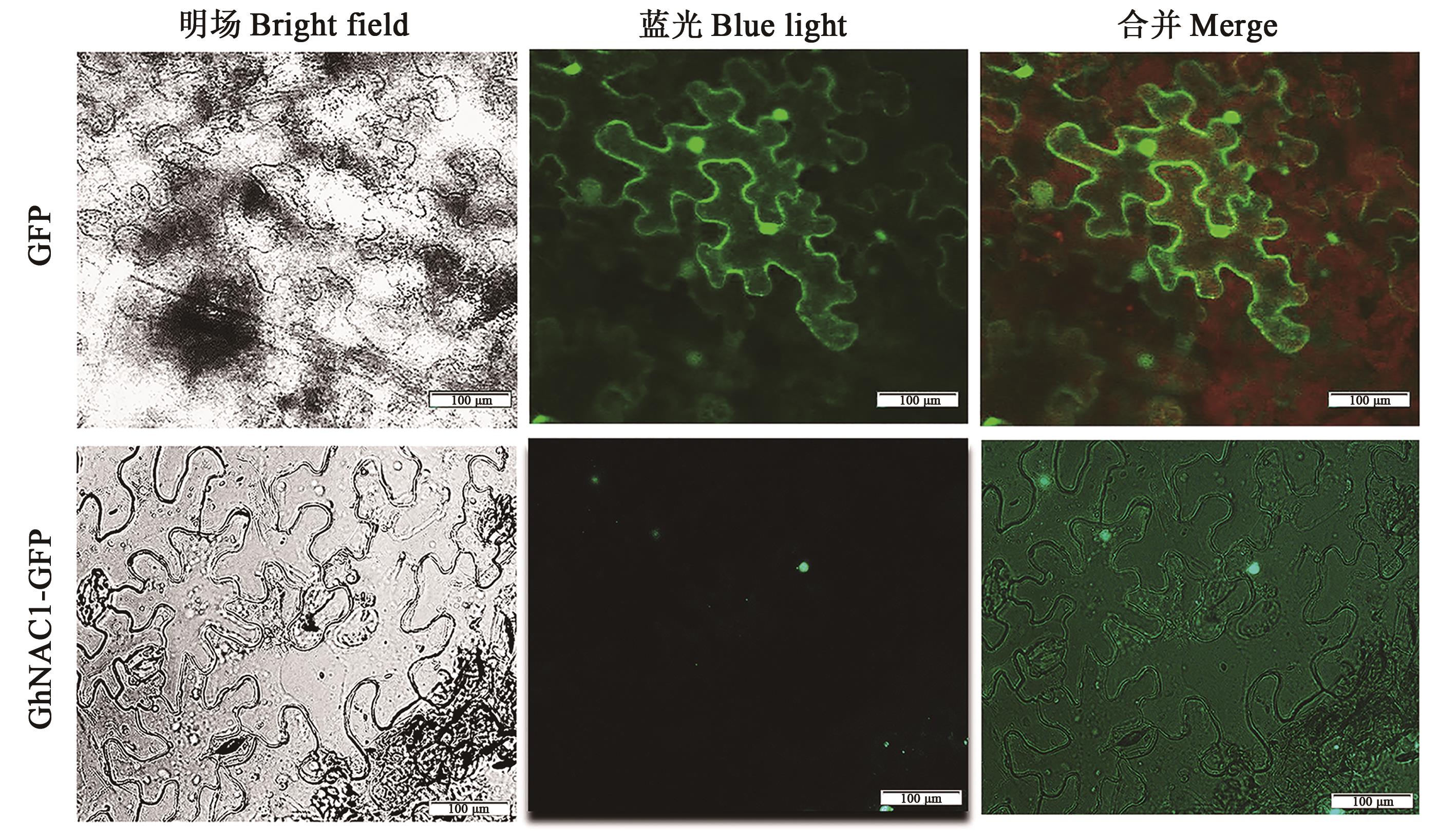

Fig. 2 Subcellular localization of GhNAC1

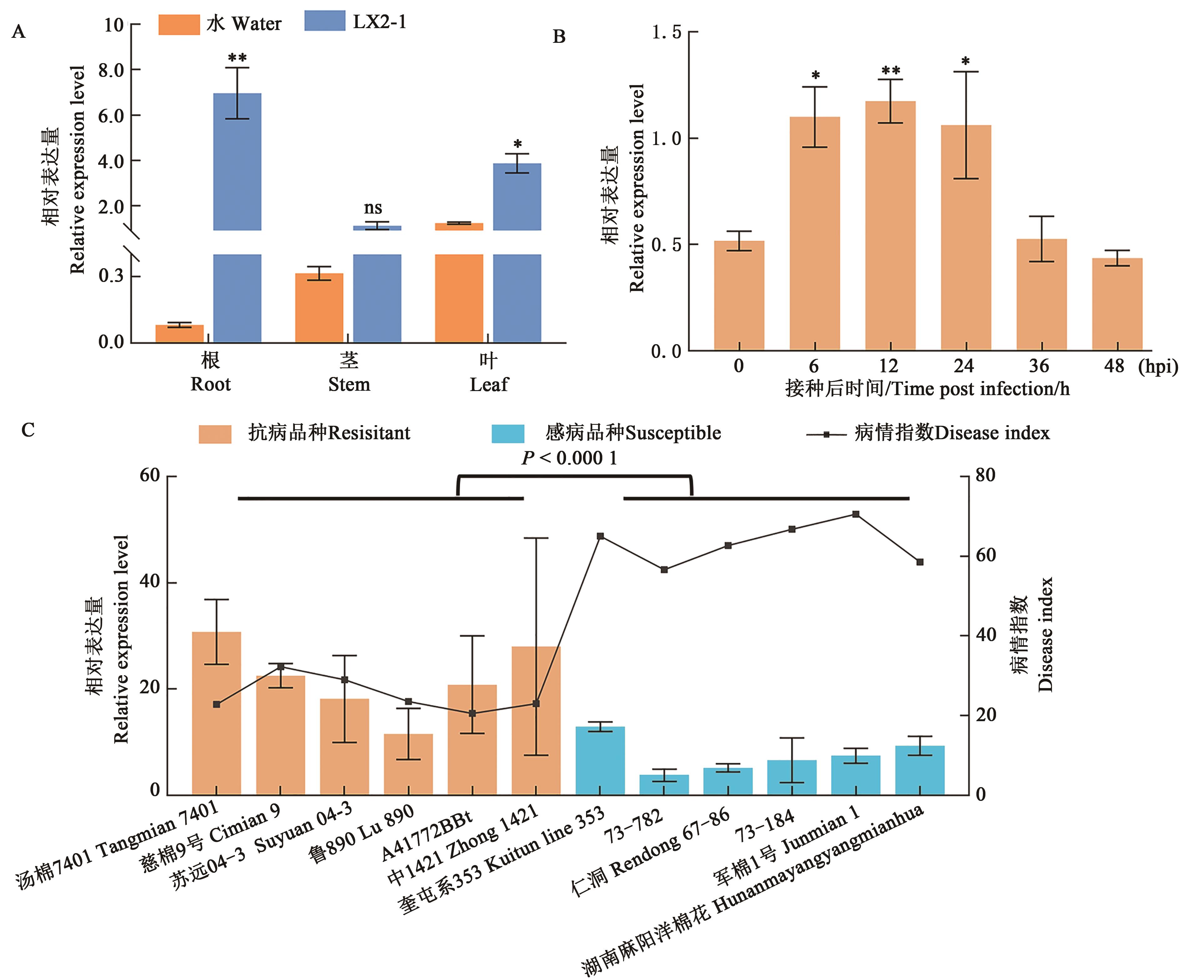

Fig. 3 Expression pattern of GhNAC1A： Expression analysis of GhNAC1 in different tissues and organs of ND601； B： Expression analysis of GhNAC1 in ND601 roots under Verticillium wilt stress； C： Expression analysis of GhNAC1 in roots of 12 different resistant cultivars under Verticillium wilt stress； * and ** indicate significant differences compared with 0 h at P < 0.05 and P < 0.01 levels， respectively

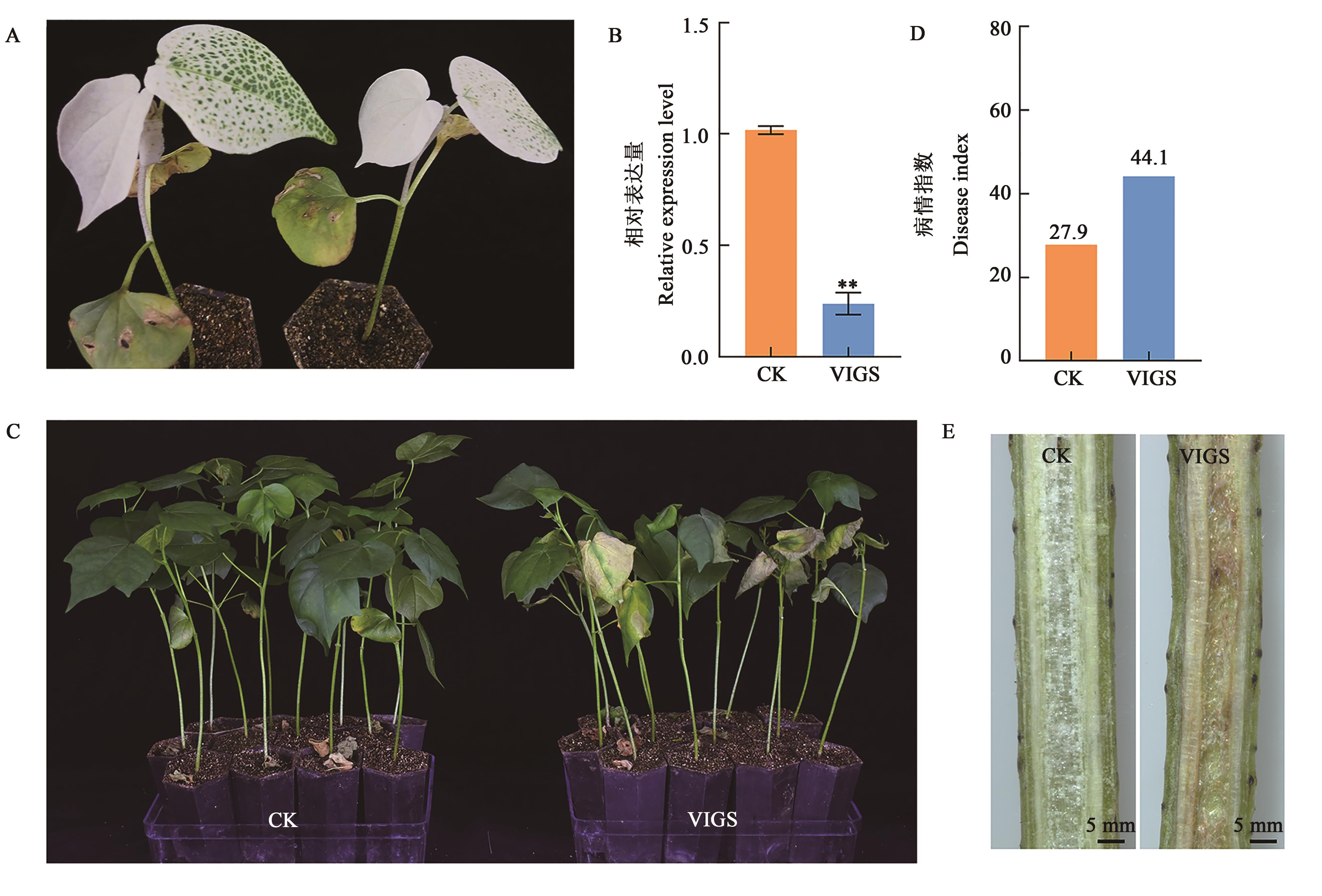

Fig. 4 Silencing GhNAC1 reduced the resistance to V. dahliae in cottonA： CLA1 gene was used as a positive control with an albino phenotype on leave after VIGS in cotton； B： Relative expression levels of GhNAC1 in WT and GhNAC1-silenced plants 7 d after hand-infiltration； C： Disease manifestations of control plants and silent plants at 20 dpi； D： Disease index； E： Phenotype of stem infected by V. dahliae. CK stands for control group， VIGS stands for silent group； ** indicates significant difference compared with CK at P < 0.01 level

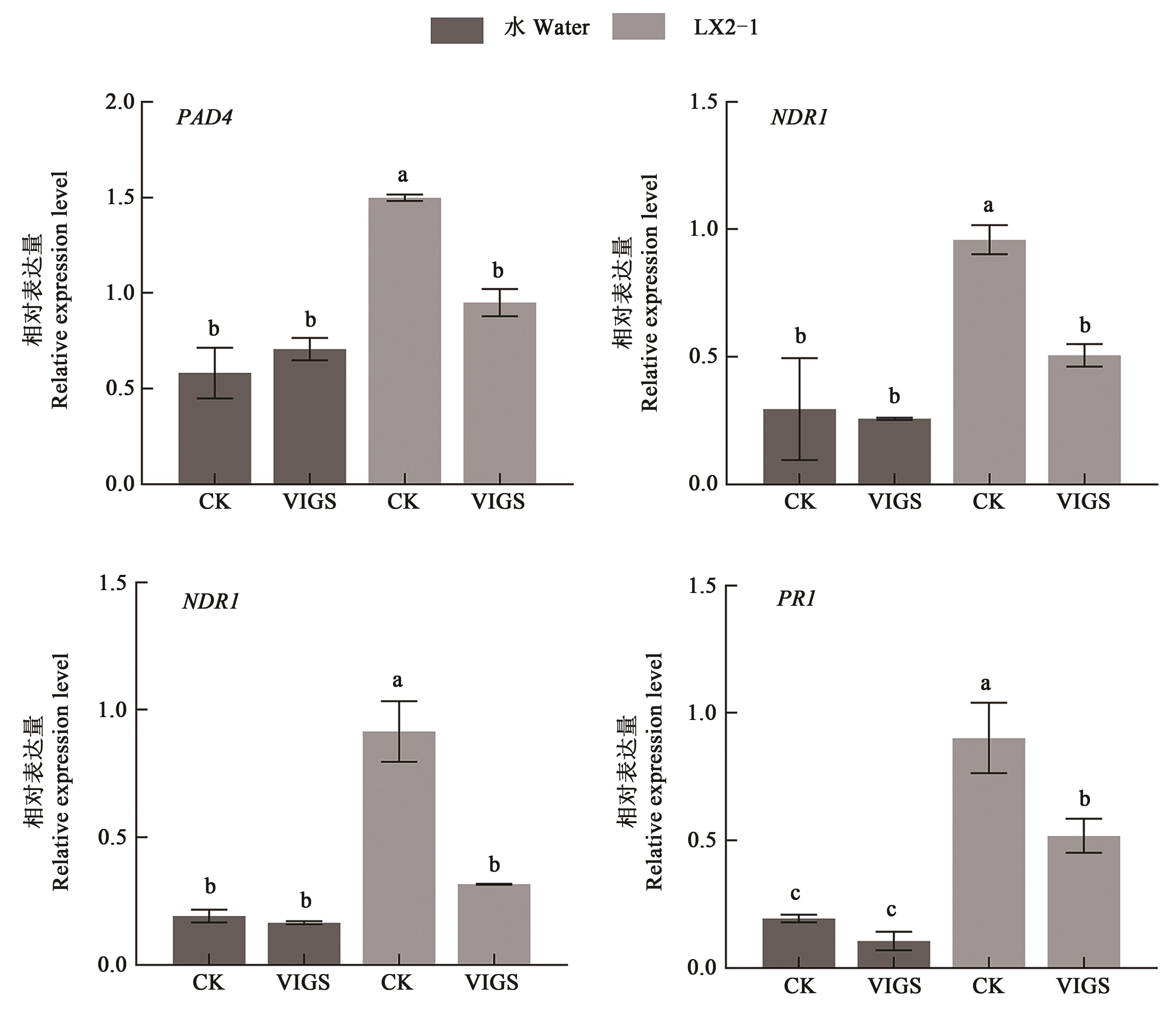

Fig. 5 Analysis of gene expression of salicylic acid pathway in GhNAC1 silenced cotton after inoculationNote：Different lowercase letters represent significant differences at P < 0.05 level.

References 43

1	KLOSTERMAN S J, ATALLAH Z K, VALLAD G E, et al.. Diversity, pathogenicity and management of Verticillium species [J]. Annu. Rev. Phytopathol., 2009, 47(1): 39-62.
2	VALLAD G E, SU B B, ARAO K V. Colonization of resistant and susceptible lettuce cultivars by a green fluorescent protein-tagged isolate of Verticillium dahliae [J/OL]. Phytopathology, 2008, 98(8): 871 [2022-03-19]. .
3	CHEN J Y, KLOSTERMAN S J, HU X P, et al.. Key insights and research prospects at the dawn of the population genomics era for Verticillium dahliae [J]. Annu. Rev. Phytopathol., 2021, 59(1): 31-51.
4	SONG R, LI Y S, XIE H Y, et al.. An overview of the molecular genetics of plant resistance to the Verticillium wilt pathogen Verticillium dahliae [J/OL]. Int. J. Mol. Sci., 2020, 21(3): 1120 [2022-03-21]. .
5	朱荷琴,李志芳,冯自力,等.我国棉花黄萎病研究十年回顾及展望[J].棉花学报, 2017, 29(z1): 37-50.
	ZHU H Q, LI Z F, FENG Z L, et al.. Review and prospect of cotton Verticillium wilt research in ten years in China [J]. Cotton Sci., 2017, 029(z1): 37-50.
6	GAO W, LONG L, ZHU L F, et al.. Proteomic and virus-induced gene silencing (VIGS) analyses reveal that gossypol, brassinosteroids, and jasmonic acid contribute to the resistance of cotton to Verticillium dahliae [J]. Mol. Cell Proteomics, 2013, 12(12): 3690-3703.
7	YANG J, MA Q, ZHANG Y, et al.. Molecular cloning and functional analysis of GbRVd, a gene in Gossypium barbadense that plays an important role in conferring resistance to Verticillium wilt [J]. Gene, 2016, 575(2): 687-694.
8	ZHANG Y, WU L, WANG X, et al.. The cotton laccase gene GhLAC15 enhances Verticillium wilt resistance via an increase in defence-induced lignification and lignin components in the cell walls of plants [J]. Mol. Plant Pathol., 2019, 20(3): 309-322.
9	CHEN B, ZHANG Y, YANG J, et al.. The G-protein α subunit GhGPA positively regulates Gossypium hirsutum resistance to Verticillium dahliae via induction of SA and JA signaling pathways and ROS accumulation [J]. Crop J., 2021, 9(4): 823-833.
10	CHEN B, ZHANG Y, SUN Z W, et al.. Tissue-specific expression of GhnsLTPs identified via GWAS sophisticatedly coordinates disease- and insect-resistance by regulating metabolic flux redirection in cotton [J]. Plant J., 2021, 107(3): 831-846.
11	安汶铠,常丹,杨艺,等.利用VIGS技术沉默GhBES1基因对棉花幼苗生理指标的影响[J].分子植物育种, 2016, 14(9): 1055-1061.
	AN W K, CHANG D, YANG Y, et al.. Effects of GhBES1 gene silencing by VIGS technique on physiological indexes of cotton seedlings [J]. Mol. Plant Breeding, 2016, 14(9): 1055-1061.
12	AIDA M, ISHIDA T, FUKAKI H, et al.. Genes involved in organ separation in Arabidopsis: an analysis of the cup-shaped cotyledon mutant [J]. Plant Cell, 1997, 9(6): 841-857.
13	孙利军,李大勇,张慧娟,等.NAC转录因子在植物抗病和抗非生物胁迫反应中的作用[J].遗传, 2012, 34(8): 993-1002.
	SUN L J, LI D Y, ZHANG H J, et al.. Functions of NAC transcription factors in biotic and abiotic stress responses in plants [J]. Hereditas, 2012, 34(8): 993-1002.
14	ZHONG R, LEE C, HAGHIGHAT M, et al.. Xylem vessel-specific SND5 and its homologs regulate secondary wall biosynthesis through activating secondary wall NAC binding elements [J]. New Phytol., 2021, 231(4): 1496-1509.
15	FU B L, WANG W Q, LIU X F, et al.. An ethylene-hypersensitive methionine sulfoxide reductase regulated by NAC transcription factors increases methionine pool size and ethylene production during kiwifruit ripening [J]. New Phytol., 2021,231(1): 237-251.
16	曲潇玲,焦裕冰,罗健达,等.本氏烟NbNAC062的克隆及对马铃薯Y病毒侵染的抑制作用[J].中国农业科学, 2021, 54(19):84-94.
	QU X L, JIAO Y B, LUO J D, et al.. Cloning of tobacco NbNAC062 and its inhibition on potato virus Y infection [J]. Sci. Agric. Sin., 2021, 54(19): 84-94.
17	叶鸿鹰,梅双双,戎伟. ATAF2正调控拟南芥对橡胶树白粉菌的抗病性[J].热带生物学报, 2020, 11(1): 61-65.
	YE H Y, MEI S S, RONG W. ATAF2 positively contributes to the disease resistance against Oidium heveae in Arabidopsis [J]. J. Trop. Biol., 2020, 11(1): 61-65.
18	CAI W, YANG S, WU R, et al.. Pepper NAC-type transcription factor NAC2c balances the trade-off between growth and defense responses [J]. Plant Physiol., 2021, 186(4): 4.
19	王国宁,赵贵元,岳晓伟,等.河北省棉花黄萎病菌致病性与ISSR遗传分化[J].棉花学报, 2012, 24(4): 348-357.
	WANG G N, ZHAO G Y, YUE X W, et al.. Pathogenicity and ISSR genetic differentiation of Verticillium dahliae isolates from cotton growing areas of Hebei province [J]. Cotton Sci., 2012, 24(4): 348-357.
20	SPARKES I A, RUNIONS J, KEARNS A, et al.. Rapid, transient expression of fluorescent fusion proteins in tobacco plants and generation of stably transformed plants [J]. Nature Protoc., 2006, 1(4):2019-2025.
21	ZHANG M， WANG X F， YANG J， et al.. GhENODL6 isoforms from the phytocyanin gene family regulate Verticillium wilt resistance in cotton ［J］. Int. J. Mol. Sci.， 2022， 23（6）：2913-2921.
22	ZHANG Y, WANG X F, DING Z G, et al.. Transcriptome profiling of Gossypium barbadense inoculated with Verticillium dahliae provides a resource for cotton improvement [J/OL]. BMC Genomics, 2013, 14(1): 637 [2022-03-21]. .
23	YANG J, MA Q, ZHANG Y, et al.. Molecular cloning and functional analysis of GbRvd, a gene in Gossypium barbadense that plays an important role in conferring resistance to Verticillium wilt [J]. Gene, 2016, 575(2016): 687-694.
24	李宝笃,沈崇尧. Hoaglands营养液栽苗法快速鉴定甜椒疫霉病菌致病性及对杀菌剂敏性研究初报[J].植物病理学报, 1993, 23(3): 243-244.
	LI B D, SHEN C Y. Preliminary report on the rapid identification of pathogenicity and fungicide sensitivity of phytophthora capsicum by Hoaglands nutrient solution seedling method [J]. Acta Phytopathol. Sin., 1993, 23(3): 243-244.
25	唐永凯, 贾永义.荧光定量PCR数据处理方法的探讨[J].生物技术, 2008, 18(3): 91-93.
	TANG Y K, JIA Y Y. Discussion on data processing method of fluorescence quantitative PCR [J]. Biotechnology, 2008, 18(3):91-93.
26	ZHANG B, YANG Y, CHEN T, et al.. Island cotton Gbve1 gene encoding a receptor-like protein confers resistance to both defoliating and non-defoliating isolates of Verticillium dahliae [J/OL]. PLoS One, 2012, 7(12): e51091 [2022-03-21]. .
27	JYOTHISHWARAN G, KOTRESHA D, SELVARAJ T, et al.. A modified freeze-thaw method for efficient transformation of Agrobacterium tumefaciens [J]. Curr. Sci., 2007, 93(6): 770-772.
28	GAO X, BRITT R C, SHAN L, et al.. Agrobacterium-mediated virus-induced gene silencing assay in cotton [J/OL]. J. Vis. Exp., 2011, 54(54): e2938 [2022-03-21]. .
29	LOAKE G, GRANT M. Salicylic acid in plant defence-the players and protagonists [J]. Curr. Opin. Plant Biol., 2007, 10(5): 466-472.
30	MARQUES D N, REIS S D, SOUZA C D. Plant NAC transcription factors responsive to abiotic stresses [J]. Plant Gene, 2017, 11: 170-179.
31	PURANIK S, SAHU P P, SRIVASTAVA P S, et al.. NAC proteins: regulation and role in stress tolerance [J/OL]. Trends Plant Sci., 2012, 17(6): 369-381 [2022-03-21]. .
32	SHEN H, YIN Y, CHEN F, et al.. A bioinformatic analysis of NAC genes for plant cell wall development in relation to lignocellulosic bioenergy production [J/OL]. Bioenergy Res., 2009, 2(4): 217 [2022-03-21].
33	WANG X, BASNAYAKE B, ZHANG H, et al.. The Arabidopsis ATAF1, a NAC transcription factor, is a negative regulator of defense responses against necrotrophic fungal and bacterial pathogens [J]. Mol. Plant Microbe., 2009, 22(10): 1227-1238.
34	NAKASHIMA K, TRAN L S P, NGUYEN D V, et al.. Functional analysis of a NAC-type transcription factor OsNAC6 involved in abiotic and biotic stress-responsive gene expression in rice [J]. Plant J., 2010, 51(4): 617-630.
35	SANG R P, KIM H S, LEE K S, et al.. Overexpression of rice NAC transcription factor OsNAC58 on increased resistance to bacterial leaf blight [J]. J. Plant Biochem. Biot., 2017, 44(2): 149-155.
36	ZHANG X M, ZHANG Q, PEI C L, et al.. TaNAC2 is a negative regulator in the wheat-stripe rust fungus interaction at the early stage [J]. Physiol. Mol. Plant Pathol., 2018, 102: 144-153.
37	LIU B, OUYANG Z, ZHANG Y, et al.. Tomato NAC transcription factor SlSRN1 positively regulates defense response against biotic stress but negatively regulates abiotic stress response [J]. PloS One, 2014, 9(7): e102067 [2022-03-21]. .
38	CHANG Y, YU R, FENG J, et al.. NAC transcription factor involves in regulating bacterial wilt resistance in potato [J]. Funct. Plant Biol., 2020, 47: 925-936.
39	SHIRASU K, NAKAJIMA H, LAMB D C, et al.. Salicylic acid potentiates an agonist-dependent gain control that amplifies pathogen signals in the activation of defense mechanisms [J]. Plant Cell, 1997, 9: 261-270.
40	LONG L, XU F C, ZHAO J R, et al.. GbMPK3 overexpression increases cotton sensitivity to Verticillium dahliae by regulating salicylic acid signaling [J/OL]. Plant Sci., 2020, 292: 110374 [2022-03-21]. .
41	MÉTRAUX J. Recent breakthroughs in the study of salicylic acid biosynthesis [J]. Trends Plant Sci., 2002, 7(8): 332-334.
42	CHEN Z, ZHENG Z, HUANG J, et al.. Biosynthesis of salicylic acid in plants [J]. Plant Signal. Behav., 2009, 4(6): 493-496.
43	ZHENG X Y, SPIVEY N, ZENG W, et al.. Coronatine promotes Pseudomonas syringae virulence in plants by activating a signaling cascade that inhibits salicylic acid accumulation [J]. Cell Host Microbe, 2012, 11(6): 587-596.
