Effects of Water and Air Interaction on Physiological Growth and Yield of Maize Under Mulched Drip Irrigation

doi:10.13304/j.nykjdb.2022.0963

Abstract

Abstract:

In order to investigate the effects of water and air interaction on physiological growth and yield of maize under mulched drip irrigation and to explore the suitable water and air combination mode of maize under mulched drip irrigation， a field experiment was conducted with ‘Xinyu 66’ as material. 4 irrigation levels including 3 375（W1）， 4 500（W2）， 5 625（W3）， 6 750 m³?hm^-2（W4） and 2 irrigation methods including aerated drip irrigation（A） and non-aerated drip irrigation（C） were set up， and the changes of physiological growth and yield of drip irrigation maize under different water and air interaction treatments were analyzed. The results showed that with the increase of irrigation amount， the net photosynthetic rate， stomatal conductance， transpiration rate， aboveground dry matter mass and yield of maize increased first and then decreased， the intercellular CO₂ concentration and irrigation water use efficiency decreased， and the yield was the highest under W3 level. The aerated drip irrigation increased the plant height， stem diameter and leaf area index of maize compared with the non-aerated drip irrigation. Under aerated drip irrigation， the net photosynthetic rate was significantly increased by 5.39%~10.09% （P<0.05）， stomatal conductance was significantly increased by 10.64%~18.40% （P<0.05）， transpiration rate was significantly increased by 7.07%~15.27% （P<0.05）， dry matter weight was significantly increased by 5.53% ~7.76% （P<0.05）， with the highest growth rate under W3 irrigation. Aerated drip irrigation increased maize yield and irrigation water use efficiency by 3.58%~6.64% and 3.36%~6.63% on average， and the effect was more significant under W3 irrigation level （P<0.05）. The maximum yield of AW3 treatment was 14 629 kg?hm^-2. Above results showed that AW3 treatment could promote the growth of maize and increase the yield when the irrigation amount was 5 625 m³?hm^-2 under aerated drip irrigation. Above results provided theoretical basis and technical guidance for maize production in arid oasis of Xinjiang.

Key words: aerated irrigation, mulched drip irrigation, maize, physiological growth, yield

摘要：

为研究水气互作对膜下滴灌玉米生理生长及产量的影响，探寻膜下滴灌玉米适宜的水气组合模式，以‘新玉66’为试验材料，设置3 375（W1）、4 500（W2）、5 625（W3）、6 750 m³?hm^-2（W4）4个灌溉水平和加气滴灌（A）与不加气滴灌（C）2种灌水方式，分析不同水、气处理下滴灌玉米生理生长和产量的变化。结果表明，随着灌水量增加，玉米的净光合速率、气孔导度、蒸腾速率、地上部干物质量及产量先增大后降低，胞间CO₂浓度和灌溉水分利用效率降低，W3水平下产量最大。加气滴灌较不加气处理提高了玉米的株高、茎粗、叶面积指数；加气滴灌下玉米净光合速率显著增加5.39%~10.09%（P<0.05），气孔导度显著提高10.64%~18.40%（P<0.05），蒸腾速率显著增加7.07%~15.27%（P<0.05），干物质量显著增加5.53%~7.76%（P<0.05），在W3灌溉水平下增长率最大。加气滴灌使玉米产量和灌溉水分利用效率平均提高3.58%~6.64%和3.36%~6.63%，在W3灌溉水平下的影响更显著（P<0.05），AW3处理玉米产量达到最大，为14 629 kg?hm^-2。以上结果表明，AW3处理即加气滴灌下、灌水量为5 625 m³?hm^-2时，可促进膜下滴灌玉米生长，提高产量。以上研究结果可为新疆干旱绿洲区玉米生产提供理论基础及技术指导。

关键词: 加气灌溉, 膜下滴灌, 玉米, 生理生长, 产量

CLC Number:

S513

Mei WU, Jinzhu ZHANG, Zhenhua WANG, Jian LIU, Yue WEN, Xuanzhi LI. Effects of Water and Air Interaction on Physiological Growth and Yield of Maize Under Mulched Drip Irrigation[J]. Journal of Agricultural Science and Technology, 2024, 26(8): 189-200.

吴梅, 张金珠, 王振华, 刘健, 温越, 李宣志. 水气互作对膜下滴灌玉米生理生长及产量的影响[J]. 中国农业科技导报, 2024, 26(8): 189-200.

Figures/Tables 12

References 37

1	CHE Z, WANG J, LI J S. Effects of water quality, irrigation amount and nitrogen applied on soil salinity and cotton production under mulched drip irrigation in arid Northwest China [J/OL]. Agric. Water Manage., 2021, 247: 106738 [2022-10-10]. .
2	NING S R, ZHOU B B, SHI J C, et al.. Soil water/salt balance and water productivity of typical irrigation schedules for cotton under film mulched drip irrigation in northern Xinjiang [J/OL]. Agric. Water Manage., 2021,245: 106651[2022-10-10]. .
3	王振华, 陈学庚, 郑旭荣, 等. 关于我国大田滴灌未来发展的思考[J].干旱地区农业研究,2020,38(4): 1-9, 38.
	WANG Z H, CHEN X G, ZHENG X R, et al.. Discussion of the future development of field drip irrigation in China [J]. Agric. Res. Arid Areas, 2020, 38(4): 1-9, 38.
4	国家统计局. 中国统计年鉴[M]. 北京: 中国统计出版社, 2021: 395-397.
5	SHAHZAD K, BARY A I, COLLINS D P, et al.. Carbon dioxide and oxygen exchange at the soil-atmosphere boundary as affected by various mulch materials [J/OL]. Soil Tillage Res., 2019, 194: 104335 [2022-10-10]. .
6	NAN W G, YUE S C, HUANG H Z, et al.. Effects of plastic film mulching on soil greenhouse gases (CO₂, CH₄ and N₂O) concentration within soil profiles in maize fields on the Loess Plateau, China [J]. J. Integr. Agric., 2016, 15(2): 451-464.
7	ZHU Y, CAI H J, SONG L B, et al.. Aerated irrigation of different irrigation levels and subsurface dripper depths affects fruit yield, quality and water use efficiency of greenhouse tomato [J]. Sustainability, 2020, 12(7): 1-19.
8	LI Y, NIU W Q, ZHANG M Z, et al.. Artificial soil aeration increases soil bacterial diversity and tomato root performance under greenhouse conditions [J]. Land Degrad. Dev., 2020, 31(12): 1443-1461.
9	朱艳, 蔡焕杰, 宋利兵, 等. 加气灌溉改善温室番茄根区土壤通气性[J]. 农业工程学报, 2017, 33(21): 163-172.
	ZHU Y, CAI H J, SONG L B, et al.. Oxygation improving soil aeration around tomato root zone in greenhouse [J]. Trans. Chin. Soc. Agric. Eng., 2017, 33(21): 163-172.
10	李江, 潘艳川, 缴锡云, 等. 加气灌溉对麦秸秆还田后土壤还原性与水稻生长的影响[J]. 农业机械学报, 2021, 52(9): 250-259.
	LI J, PAN Y C, JIAO X Y, et al.. Effects of aerated irrigation on rice growth and soil reducibility under wheat straw returning conditions [J]. Trans. Chin. Soc. Agric. Mach., 2021, 52(9): 250-259.
11	LI Y, NIU W Q, DYCK M, et al.. Yields and nutritional of greenhouse tomato in response to different soil aeration volume at two depths of subsurface drip irrigation [J/OL]. Sci. Rep., 2016, 6(1): 39307 [2022-10-10]. .
12	BEN-NOAH I, FRIEDMAN S P. Aeration of clayey soils by injecting air through subsurface drippers: lysimetric and field experiments [J]. Agric. Water Manage., 2016, 176:222-233.
13	PENDERGAST L, BHATTARAI S P, MIDMORE D J. Evaluation of aerated subsurface drip irrigation on yield, dry weight partitioning and water use efficiency of a broad-acre chickpea (Cicer arietinum L.) in a vertosol [J]. Agric. Water Manage., 2019, 217: 38-46.
14	曹雪松, 李和平, 郑和祥, 等. 加气灌溉对根区土壤肥力质量与作物生长的影响[J].干旱地区农业研究, 2020, 38(1): 183-189.
	CAO X S, LI H P, ZHENG H X, et al.. Effect of aerated irrigation on crop growth and soil fertility quality in root zone [J]. Agric. Res. Arid Areas, 2020, 38(1): 183-189.
15	庞婕, 韩其晟, 周爽, 等. 水气互作对温室番茄生长、产量和水分利用效率的影响[J].灌溉排水学报,2022,41(1):87-94.
	PANG J, HAN Q S, ZHOU S, et al.. The Integrative effects of irrigation and aeration on growth and water use efficiency of greenhouse tomato [J]. J. Irrig. Drain., 2022,41(1):87-94.
16	杨海军, 仵峰, 方海平, 等. 基于加气水滴灌的土壤环境调节机理研究[J].物理学报, 2019, 68(1): 94-106.
	YANG H J, WU F, FANG H P, et al.. Mechanism of soil environmental regulation by aerated drip irrigation [J]. Acta Phys. Sin., 2019, 68(1): 94-106.
17	翟超, 周和平, 赵健. 北疆膜下滴灌玉米年际需水量及耗水规律[J]. 中国农业科学, 2017, 50(14): 2769-2780.
	ZHAI C, ZHOU H P, ZHAO J. Experimental study on inter-annual water requirement and water consumption of drip irrigation maize in north of Xinjiang [J]. Sci. Agric. Sin., 2017, 50(14): 2769-2780.
18	孟玉, 王振华, 李文昊, 等. 降解膜覆盖对滴灌玉米土壤水温变化及其生长的影响[J]. 西北农业学报, 2021, 30(2): 192-202.
	MENG Y, WANG Z H, LI W H, et al.. Effects of degradable film mulching on soil hydrothermal variation and growth of maize under drip irrigation [J]. Acta Agric. Bor-Occid. Sin., 2021, 30(2): 192-202.
19	BU L D, LIU J L, ZHU L, et al.. The effects of mulching on maize growth, yield and water use in a semi-arid region [J]. Agric. Water Manage., 2013, 123: 71-78.
20	吴梅, 张金珠, 王振华, 等. 加气滴灌和可降解膜覆盖对玉米生长发育及水分利用的影响[J].中国生态农业学报, 2022, 30(9): 1425-1438.
	WU M, ZHANG J Z, WANG Z H, et al.. Effects of aerated drip irrigation and degradable film mulching on growth and water use of maize [J]. Chin. J. Ecol. Agric., 2022, 30(9): 1425-1438.
21	王鹏勃, 李建明, 丁娟娟, 等. 水肥耦合对温室袋培番茄品质、产量及水分利用效率的影响[J]. 中国农业科学, 2015, 48(2): 314-323.
	WANG P B, LI J M, DING J J, et al.. Effect of water and fertilizer coupling on quality, yield and water use efficiency of tomato cultivated by organic substrate in bag [J]. Sci. Agric. Sin., 2015, 48(2): 314-323.
22	胡建强, 赵经华, 马英杰, 等. 不同灌水定额对膜下滴灌玉米的生长、产量及水分利用效率的影响[J].水资源与水工程学报, 2018, 29(5): 249-254.
	HU J Q, ZHAO J H, MA Y J, et al.. Effects of different irrigation quota on growth, yield and water use efficiency of drip irrigation maize under mulch [J]. J. Water Resour. Water Eng., 2018, 29(5): 249-254.
23	雷宏军, 肖哲元, 肖让, 等. 水、肥、气耦合滴灌对温室番茄生长和品质的影响[J].干旱地区农业研究,2020,38(5):168-175.
	LEI H J, XIAO Z Y, XIAO R, et al.. Effect of water-fertilizer-gas coupled drip irrigation on greenhouse tomato growth and fruit quality [J]. Agric. Res. Arid Areas, 2020,38(5):168-175.
24	ABUARAB M, MOSTAFA E, IBRAHIM M. Effect of air injection under subsurface drip irrigation on yield and water use efficiency of corn in a sandy clay loam soil [J]. J. Adv. Res., 2013, 4(6): 493-499.
25	于珍珍. 水肥气耦合调控土壤环境对玉米生长影响的研究[D]. 大庆: 黑龙江八一农垦大学, 2020.
	YU Z Z. Study on the effect of water, fertilizer and gas coupling on soil growth and control of maize growth [D]. Daqing: Heilongjiang Bayi Agricultural University, 2020.
26	郑孟静, 翟立超, 申海平, 等. 种植密度对河北夏玉米生理成熟后茎秆抗倒能力及产量的影响[J]. 核农学报, 2022, 36(7): 1434-1445.
	ZHENG M J, ZHAI L C, SHEN H P, et al.. Effects of planting density on stem lodging resistance and grain yield of summer maize after physiological maturity in Hebei [J]. J. Nucl. Agric. Sci., 2022, 36(7): 1434-1445.
27	DU Y, ZHANG Q, CUI B, et al.. Aerated irrigation improves tomato yield and nitrogen use efficiency while reducing nitrogen application rate [J/OL]. Agric. Water Manage., 2020, 235: 106152 [2022-10-10]. .
28	ENNAHLI S, EARL H J. Physiological limitations to photosynthetic carbon assimilation in cotton under water stress [J]. Crop Sci., 2005, 45(6):2374-2382.
29	张健利, 王振华, 宗睿, 等. 水气互作对滴灌加工番茄生长及品质的影响[J]. 江苏农业学报, 2022, 38(2): 453-461.
	ZHANG J L, WANG Z H, ZONG R, et al.. Effects of water and air interaction on growth and quality of drip-irrigated processing tomato [J]. Jiangsu J. Agric. Sci., 2022, 38(2): 453-461.
30	OUYANG Z, TIAN J C, YAN X F, et al.. Effects of different concentrations of dissolved oxygen on the growth,photosynthesis, yield and quality of greenhouse tomatoes and changes in soil microorganism [J/OL]. Agric. Water Manage., 2021, 245: 106579 [2022-10-10]. .
31	徐晨, 李前, 赵洪祥, 等. 灌溉定额对半干旱区春玉米生长发育的影响[J]. 西北农林科技大学学报(自然科学版), 2019, 47(10): 41-51, 62.
	XU C, LI Q, ZHAO H X, et al.. Effects of irrigation quota on growth of spring maize with drip irrigation in semi-arid region [J]. J. Northwest A&F Univ. (Nat.Sci.), 2019, 47(10): 41-51, 62.
32	李元, 牛文全, 吕望, 等. 加气灌溉改善大棚番茄光合特性及干物质积累[J]. 农业工程学报, 2016, 32(18): 125-132.
	LI Y, NIU W Q, LYU W, et al.. Aerated irrigation improving photosynthesis characteristics and dry matter accumulation of greenhouse tomato [J]. Trans. Chin. Soc. Agric. Eng., 2016, 32(18): 125-132.
33	刘健, 姚宁, 吝海霞, 等. 冬小麦物候期对土壤水分胁迫的响应机制与模拟[J].农业工程学报, 2016, 32(21): 115-124.
	LIU J, YAO N, LIN H X, et al.. Response mechanism and simulation of winter wheat phenology to soil water stress [J]. Trans. Chin. Soc. Agric. Eng., 2016, 32(21): 115-124.
34	张美桃, 杨培岭, 任树梅, 等. 灌溉水盐分及灌水量对土壤水盐分布与春玉米生长的影响[J]. 水土保持学报, 2022, 36(4): 290-298.
	ZHANG M T, YANG P L, REN S M, et al.. Effects of irrigation water salinity and irrigation amount on soil water and salt distribution and spring maize growth [J]. J. Soil Water Conserv., 2022, 36(4): 290-298.
35	王风姣, 王振华, 李文昊. 灌水量及可降解膜覆盖对滴灌玉米土壤呼吸及产量的影响[J]. 干旱地区农业研究, 2019, 37(5): 1-8, 21.
	WANG F J, WANG Z H, LI W H. Effects of irrigation amount and degradable membrane mulching on soil respiration and yield of drip-irrigated corn [J]. Agric. Res. Arid Areas, 2019, 37(5): 1-8, 21.
36	于珍珍, 王宏轩, 邹华芬, 等. 加气灌溉下红壤土呼吸速率变化及其与土壤水氧的关系[J]. 热带作物学报, 2022, 43(1): 110-118.
	YU Z Z, WANG H X, ZOU H F, et al.. Changes of red soil respiration rate under aerated irrigation and its relationship with soil water and oxygen [J]. Chin. J. Trop. Crops, 2022, 43(1): 110-118.
37	MBONIMPA M, AUBERTIN M, AACHIB M, et al.. Diffusion and consumption of oxygen in unsaturated cover materials [J]. Can. Geotech. J., 2003, 40: 916-932.

处理Treatment	灌水方式Irrigation method	灌水量Irrigation amount/（m³∙hm^-2）
AW1	加气滴灌Aerated drip irrigation	3 375
AW2	加气滴灌Aerated drip irrigation	4 500
AW3	加气滴灌Aerated drip irrigation	5 625
AW4	加气滴灌Aerated drip irrigation	6 750
CW1	不加气滴灌Non-aerated drip irrigation	3 375
CW2	不加气滴灌Non-aerated drip irrigation	4 500
CW3	不加气滴灌Non-aerated drip irrigation	5 625
CW4	不加气滴灌Non-aerated drip irrigation	6 750

处理Treatment	灌水方式Irrigation method	灌水量Irrigation amount/（m³∙hm^-2）
AW1	加气滴灌Aerated drip irrigation	3 375
AW2	加气滴灌Aerated drip irrigation	4 500
AW3	加气滴灌Aerated drip irrigation	5 625
AW4	加气滴灌Aerated drip irrigation	6 750
CW1	不加气滴灌Non-aerated drip irrigation	3 375
CW2	不加气滴灌Non-aerated drip irrigation	4 500
CW3	不加气滴灌Non-aerated drip irrigation	5 625
CW4	不加气滴灌Non-aerated drip irrigation	6 750

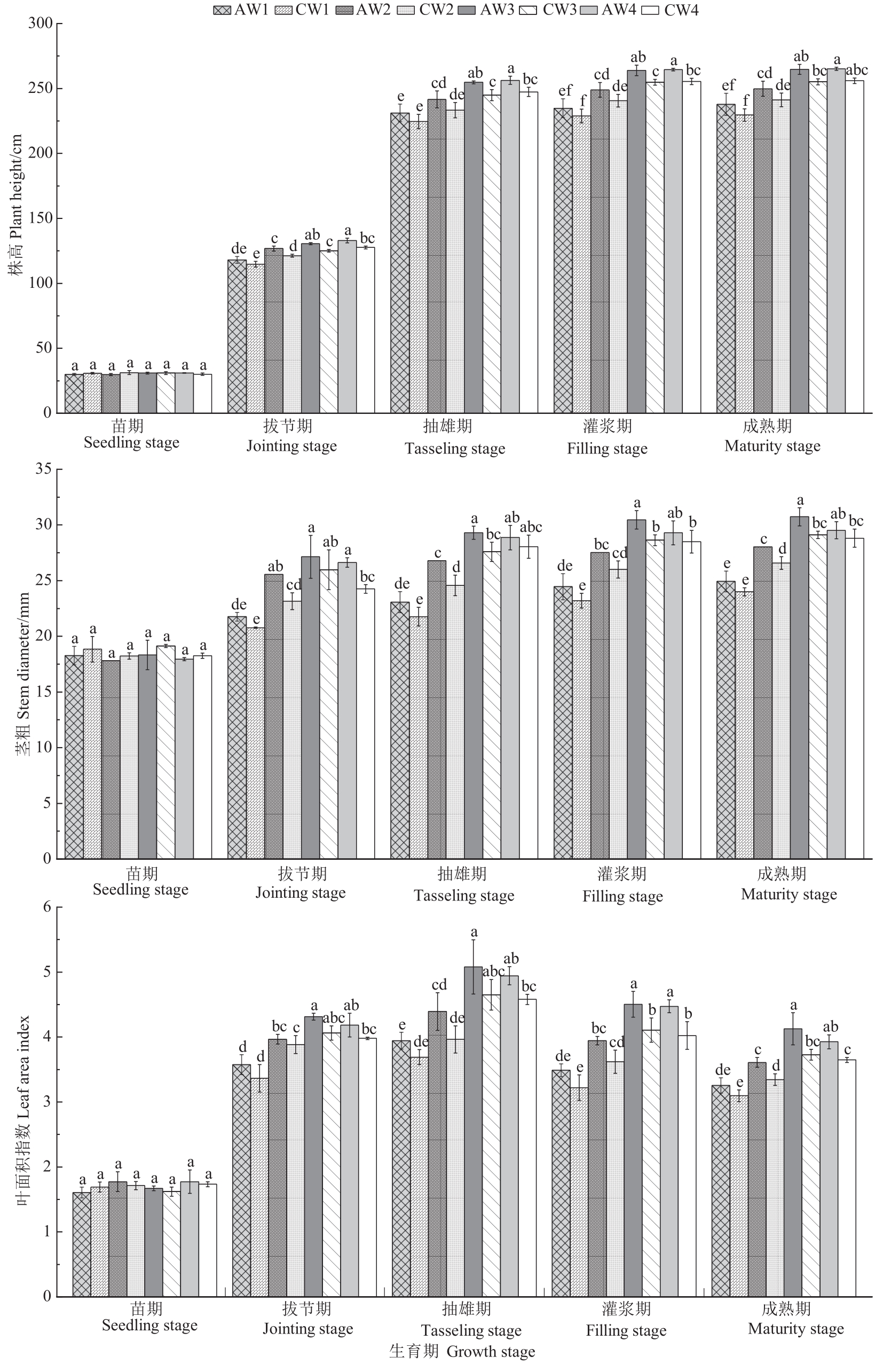

指标 Index	处理 Treatment	苗期 Seedling stage	拔节期 Jointing stage	抽雄期 Tasseling stage	灌浆期 Filling stage	成熟期 Maturity stage
株高 Plant height	W	2.364	79.350^**	30.847^**	53.001^**	43.632^**
	AC	0.043	51.218^**	18.652^*	19.512^**	20.720^**
	W×AC	0.689	0.691	0.133	0.170	0.026
茎粗 Stem diameter	W	1.387	24.403^**	60.512^**	51.643^**	77.642^**
	AC	3.333	14.007^*	17.009^**	14.105^**	18.019^*
	W×AC	0.143	0.684	0.651	0.369	0.594
叶面积指数 Leaf area index	W	2.094	34.377^**	38.051^**	45.001^**	46.526^**
	AC	0.149	11.731^*	23.200^**	29.208^**	31.186^**
	W×AC	0.705	0.435	0.403	0.368	1.049

指标 Index	处理 Treatment	苗期 Seedling stage	拔节期 Jointing stage	抽雄期 Tasseling stage	灌浆期 Filling stage	成熟期 Maturity stage
株高 Plant height	W	2.364	79.350^**	30.847^**	53.001^**	43.632^**
	AC	0.043	51.218^**	18.652^*	19.512^**	20.720^**
	W×AC	0.689	0.691	0.133	0.170	0.026
茎粗 Stem diameter	W	1.387	24.403^**	60.512^**	51.643^**	77.642^**
	AC	3.333	14.007^*	17.009^**	14.105^**	18.019^*
	W×AC	0.143	0.684	0.651	0.369	0.594
叶面积指数 Leaf area index	W	2.094	34.377^**	38.051^**	45.001^**	46.526^**
	AC	0.149	11.731^*	23.200^**	29.208^**	31.186^**
	W×AC	0.705	0.435	0.403	0.368	1.049

处理 Treatment	干物质量/（g·株^-1） Dry matter accumulation/（g·plant^-1）
处理 Treatment	茎 Stem	叶 Leaf	穗 Spike	总 Total
AW1	41.80±1.20 ef	22.92±1.22 de	197.31±3.79 de	262.02±3.75 de
AW2	45.66±0.83 d	27.15±1.02 bc	216.20±5.68 c	289.01±5.63 c
AW3	51.82±0.74 a	30.72±1.22 a	235.80±7.53 a	318.34±6.89 a
AW4	50.09±1.58 ab	29.26±1.50 ab	230.53±6.71 ab	309.89±9.64 ab
CW1	40.32±1.42 f	21.67±1.08 e	186.29±6.53 e	248.29±8.70 e
CW2	43.33±1.87 e	24.87±1.65 cd	202.21±8.00 d	270.41±11.24 d
CW3	48.19±1.62 bc	28.00±1.05 b	219.21±3.93 bc	295.40±5.72 bc
CW4	47.52±0.90 cd	27.77±0.99 b	217.88±7.95 bc	293.17±8.85 c
W	57.296^**	39.452^**	38.325^**	53.463^**
AC	21.259^**	14.678^*	26.447^**	31.153^**
W×AC	0.668	0.458	0.200	0.357
