Study of Volcanic Rock Deposition on the Running of Aquaponics

doi:10.13304/j.nykjdb.2022.0074

Abstract

Abstract:

In an aquaponics， excessive accumulation of fish excreta and bait residues on the bottom of the pond may cause further pollution of the water， so the experiment was conducted to investigate the effect of volcanic rocks on the growth of fish and vegetables， water purification and nitrogen and phosphorus utilization efficiency of the Aquaponics. 4 treatments were set up for this experiment： farming carp （F）， farming carp and adding volcanic rocks to the bottom of the pond （Fv）， planting lettuce on the pond of Fv （Fvs） and planting lettuce on the pond of F （Fs）. The results of the 45 d trial showed that the addition of volcanic rocks effectively reduced nitrite nitrogen concentrations and contributed to the accumulation of nitrate nitrogen， and had no effect on fish production， but significantly increased lettuce production by 33.95%（P<0.05）； the integrated aquaponics culture system with volcanic rocks （Fvs） had the highest nitrogen and phosphorus utilization efficiency （NUE， PUE）， up to 36.80% and 26.14% respectively. In conclusion， it was concluded that the addition of volcanic rocks to an integrated aquaponics could effectively reduce the concentration of nitrite nitrogen， decrease the accumulation of toxic substances in the water， promote the accumulation of nitrate nitrogen and then increase lettuce production， and enhance the utilization efficiency of nitrogen and phosphorus， which could provide a theoretical basis for the effective operation of aquaponics systems.

Key words: integrated aquaponics, volcanic rock, production, purification, nitrogen and phosphorus utilization efficiency

摘要：

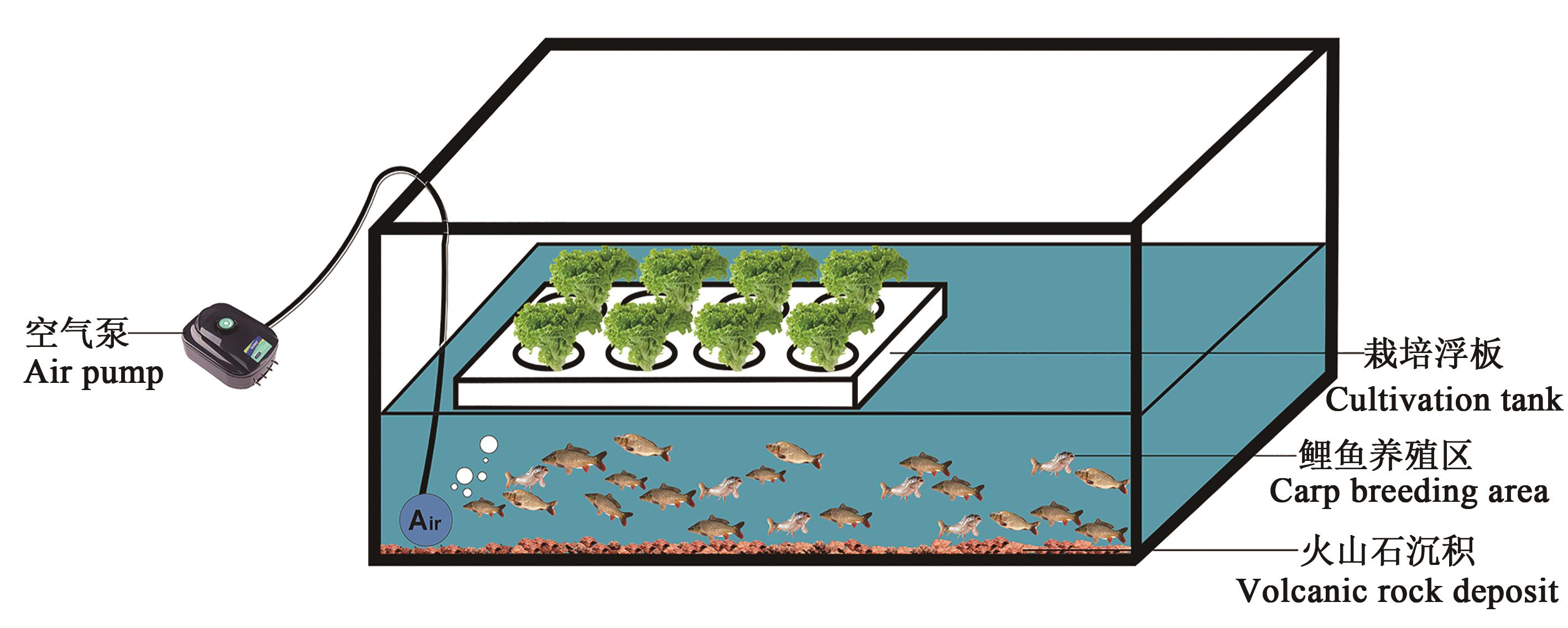

在一体化鱼菜共生系统中，由于鱼类排泄物和残饵过量累积于池底易引起水质的进一步污染，在池底放置火山石，探究其对鱼菜生长、水质净化和系统氮磷利用率的影响。试验设置4个处理，分别是养殖鲤鱼（F），养殖鲤鱼并在鱼池底部添加火山石（Fv），养殖鲤鱼、在鱼池底部添加火山石并在上部种植生菜（Fvs），只养殖鲤鱼和种植生菜（Fs）。45 d的试验结果表明，添加火山石有效降低了亚硝酸盐氮含量，有助于硝酸盐氮的累积，对鱼的产量无影响，但生菜产量显著（P<0.05）提高了33.95%；添加火山石的一体化鱼菜种养殖系统（Fvs）氮利用率（NUE）和磷利用率（PUE）最高，分别为36.80%和26.14%。综上，在一体化鱼菜共生系统中添加火山石可以有效降低亚硝酸盐氮的含量，减少水中有毒物质的累积，促进硝酸盐氮的累积，为植物生长提供更多的营养物质，并能提高氮与磷的利用效率以及生菜产量，结果可为鱼菜共生系统的有效运行提供理论依据。

关键词: 一体化鱼菜共生系统, 火山石, 产量, 净化作用, 氮磷利用率

CLC Number:

S965

Denglong CHEN, Yuxiang ZHANG, Jiajia SONG, Pengyu CHEN, Xiangzhen WEN, Yaling LI. Study of Volcanic Rock Deposition on the Running of Aquaponics[J]. Journal of Agricultural Science and Technology, 2023, 25(7): 207-214.

陈登龙, 张雨翔, 宋佳佳, 陈鹏宇, 温祥珍, 李亚灵. 火山石沉积对鱼菜共生系统运行的探究[J]. 中国农业科技导报, 2023, 25(7): 207-214.

Figures/Tables 7

References 36

1	NAYLOR R L, GOLDBURG R J, PRIMAVERA J H, et al.. Effect of aquaculture on world fish supplies [J]. Nature, 2000, 405(6790): 1017-1024.
2	GHALlY A E, KAMAL M, MAHMOUD N S. Phytoremediation of aquaculture wastewater for water recycling and production of fish feed [J]. Environ. Int., 2005, 31(1): 1-13.
3	SUMETH W, POPP B N, KUMAR K S. Nitrogen recovery and nitrous oxide (N₂O) emissions from aquaponic systems: influence of plant species and dissolved oxygen [J]. Int. Biodeterior. Biodegradation, 2018, 134: 117-126.
4	BOSMA R H, LACAMBRA L, LANDSTRA Y, et al.. The financial feasibility of producing fish and vegetables through aquaponics [J]. Aquac. Eng., 2017,78: 146-154.
5	AMANE K, KIMURA Y, TAKAHASHI K, et al.. The growth of leaf lettuce and bacterial communities in a closed aquaponics system with catfish [J]. Sci. Hortic., 2021, 7(8): 70-80.
6	章海鑫, 余智杰, 张燕萍, 等. 养殖模式对草鱼池塘底泥微生物群落结构影响的分析[J].淡水渔业, 2021,51(2): 3-12.
	ZHANG H X, YU Z J, ZHANG Y P, et al.. Effect of culture modes on microbial community structure of sediments in grass carp Ctenopharyngodon idellus ponds [J]. Freshwater Fisheries, 2021, 51(2): 3-12.
7	HU Z, LEE J W, CHANDRAN K, et al.. Nitrogen transformations in intensive aquaculture system and its implication to climate change through nitrous oxide emission [J]. Bioresour. Technol., 2013, 130: 314-320.
8	DEDIU L, CRISTEA V, DOCAN A, et al.. Evaluation of condition and technological performance of hybrid bester reared in standard and aquaponic system [J]. AACL, 2011, 4(4): 490-498.
9	WONGKIEW S, ZHEN H, CHANDRAN K, et al.. Nitrogen transformations in aquaponic systems: a review [J]. Aquac. Eng., 2017, 76:9-19.
10	姚延丹, 李谷, 陶玲, 等. 复合池塘循环水养殖系统微生物群落结构分析[J]. 中国水产科学, 2011, 18(2): 407-415.
	YAO Y D, LI G, TAO L, et al.. Analysis of microbial community structure in an integrated pond recirculating aquaculture system [J]. J. Fishery Sci. China, 2011, 18(2): 407-415.
11	PETREA S M, CRISTER V, DEDIU L, et al.. A Study of nitrogen cycle in an integrated aquaponic system with different plant densities [J]. Anim. Sci. Biotechnol., 2013,70(1): 55-64.
12	邱楚雯, 王韩信, 施永海. 鱼菜共生系统中植物根系微生物及氮转化影响因素研究进展[J]. 复旦学报(自然科学版), 2021, 60(1): 124-132.
	QIU C W, WANG H X, SHI Y H. Research progress on the plant root microbiota and factors affecting nitrogen transformations in the aquaponics system [J]. J. Fudan Univ. (Nat. Sci.), 2021, 60(1): 124-132.
13	FRINCU M, DUMITRACHE C, CIMPEANU P D C, et al.. Study regarding nitrification in experimental aquaponic system [J]. J. Young Sci., 2016, 4: 27-32.
14	王华, 刘长发, 秦传新. 用火山石载体生物膜和角叉菜去除水中氮和磷的效果[J]. 大连水产学院学报, 2007,22(6): 421-425.
	WANG H, LIU C F, QIN C X. Effects of nitrogen and phosphorus removal in water using volcanic stone carrier biofilm and carragee [J]. J. Dalian Ocean Univ., 2007,22(6): 421-425.
15	王冰, 张凯, 华向美, 等. 鱼菜共生系统矿物元素对蔬菜生长的影响[J]. 安徽农业科学, 2019, 47(13): 76-77, 81.
	WANG B, ZHANG K, HUA X M, et al.. Effects of mineral elements on vegetable growth in aquaponics system [J]. J. Anhui Agric. Sci., 2019, 47(13): 76-77, 81.
16	国家环境保护总局《水和废水监测分析方法》编委会.水和废水监测分析方法[M]. 第四版. 北京: 中国环境科学出版社, 2002: 243-284.
17	RIDHA M T, CRUZ E M. Effect of biofilter media on water quality and biological performance of the Nile tilapia Oreochromis niloticus L. reared in a simple recirculating system [J]. Aquac. Eng., 2001, 24(2): 157-166.
18	CRAB R, AVNIMELECH Y, DEFOIRDT T, et al.. Nitrogen removal techniques in aquaculture for a sustainable production [J]. Aquaculture, 2007, 270: 1-14.
19	邹艺娜. 鱼菜共生系统中氮素迁移转化及N₂O释放初步研究[D]. 济南:山东大学, 2017.
	ZOU Y N. Nitrogen transformations and N₂O emission in aquaponics [D]. Jinan: Shandong University, 2017.
20	高攀, 李晓东, 翟旭亮, 等. 主养罗非鱼鱼菜共生池塘水质指标的变化规律和氮磷收支[J]. 渔业研究, 2021, 43(2): 167-174.
	GAO P, LI X D, ZHAI X L, et al.. Effect of water quality and utilization of nitrogen and phosphorus by Oreochroms mossambcus-ipomoea aquatica symbiosis system [J]. Fishery Res., 2021, 43(2): 167-174.
21	THYRSTON R V, RUSSO R C, VINOGRADOV G A. Ammonia toxicity to fishes. effect of pH on the toxicity of the unionized ammonia species [J]. Environ. Sci. Technol., 1981, 15(7): 837-840.
22	LIANG J Y, CHIEN Y H. Effects of feeding frequency and photoperiod on water quality and crop production in a tilapia–water spinach raft aquaponics system [J]. Int. Biodeterior. Biodegradation, 2013, 85: 693-700.
23	MCLAMEY W O, TODD J. Walton two: a compleat guide to backyard fish farming [J]. New Alchemists., 1974, 2: 77-119.
24	THANGAM Y. Effect of acute and sublethal toxicity of nitrite to fresh water fish Cirrhinus mrigala [J]. Int. J. Sci. Eng. Res., 2014, 5(5): 789-795.
25	刘爽, 安诗琦, 严子微, 等. 现代鱼菜共生技术研究进展与展望[J]. 中国农业科技导报, 2020, 22(3): 160-166.
	LIU S, AN S Q, YAN Z W, et al.. Progress and prospect of aquaponics technology [J]. J. Agric. Sci. Technol., 2020, 22(3): 160-166.
26	何文祥, 杨扬, 乔永民, 等. 火山石生物滤床对微囊藻毒素的去除[J]. 环境工程学报, 2015, 9(6): 2607-2613.
	HE W X, YANG Y, QIAO Y M, et al.. Removal of microcystins from volcanic stone biological filter bed [J]. Chin. J. Environ. Eng., 2015, 9(6): 2607-2613.
27	GRABER A, JUNGE R. Aquaponic systems: nutrient recycling from fish wastewater by vegetable production [J]. Desalination, 2009, 246(1-3): 147-156.
28	SNOW A M, GHALY A E. Use of barley for the purification of aquaculture wastewater in a hydroponics system [J]. J. Environ. Sci., 2008, 4(2): 89-102.
29	ENDUT A, JUSOH A, ALI N, et al.. A study on the optimal hydraulic loading rate and plant ratios in recirculation aquaponic system [J]. Bioresour. Technol., 2010, 101(5): 1511-1517.
30	马云曦, 张智玮, 李倩儒, 等. 麦饭石对鱼菜共生系统的影响试验[J]. 农业工程, 2021, 11(11): 121-126.
	MA Y X, ZHANG Z W, LI Q R, et al.. Effect of maifanite on aquaponic system [J]. Agric. Eng., 2021, 11(11): 121-126.
31	RAKOCY J E. Integration of vegetable hydroponics with fish culture: a review [J]. Tech. Mod-aquacul., 1993, 6(21-23): 112-136.
32	SCHNEIDER O, SERETI V, EDING E H, et al.. Analysis of nutrient flows in integrated intensive aquaculture systems [J]. Aquac. Eng., 2005, 32(3-4): 379-401.
33	ZOU Y, HU Z, ZHANG J, et al.. Attempts to improve nitrogen utilization efficiency of aquaponics through nitrifies addition and filler gradation [J]. Environ. Sci. Poll. Res. Int., 2016, 23(7): 6671-6679.
34	HU Z, LEE J W, CHANDRAN K, et al.. Effect of plant species on nitrogen recovery in aquaponics [J]. Bioresour. Technol., 2015, 188: 92-98.
35	SEAWRIGHT D E, STICKNEY R R, WALKER R B. Nutrient dynamics in integrated aquaculture-hydroponics systems [J]. Aquaculture, 1998, 160(3-4): 215-237.
36	CEROZI B S, FITZSIMMONS K. Phosphorus dynamics modeling and mass balance in an aquaponics system [J]. Agric. Syst., 2017, 153: 94-100.

指标 Index
指标 Index	F	Fv	Fvs	Fs
水温Water temperature/℃	14.85±1.50	14.97±1.48	14.82±1.51	15.04±1.43
溶解氧DO/（mg·L^-1）	6.41±0.63	6.37±0.60	6.02±0.68	5.96±0.64
pH	8.22±0.09	8.23±0.12	8.23±0.11	8.21±0.10
盐度EC/（mS·cm^-1）	0.63±0.02	0.64±0.02	0.63±0.02	0.63±0.02

指标 Index
指标 Index	F	Fv	Fvs	Fs
水温Water temperature/℃	14.85±1.50	14.97±1.48	14.82±1.51	15.04±1.43
溶解氧DO/（mg·L^-1）	6.41±0.63	6.37±0.60	6.02±0.68	5.96±0.64
pH	8.22±0.09	8.23±0.12	8.23±0.11	8.21±0.10
盐度EC/（mS·cm^-1）	0.63±0.02	0.64±0.02	0.63±0.02	0.63±0.02

处理 Treatment	鱼 Fish				生菜 Lettuce
处理 Treatment	特定增长率 Specific growth rate/%	饲料转化率 Feed conversion rate/%	存活率 Survival rate/%	产量增长率 Production growth rate/%	产量/（g·株^-1） Yield /（g·plant^-1）	小区产量 Cell yield/g
F	1.00 a	1.38 a	100	56.82 a	—	—
Fv	1.02 a	1.36 a	100	58.61 a	—	—
Fvs	0.97 a	1.47 a	100	54.86 a	38.75 a	1 239.79 a
Fs	0.96 a	1.47 a	100	56.02 a	28.92 b	925.55 b

处理 Treatment	鱼 Fish				生菜 Lettuce
处理 Treatment	特定增长率 Specific growth rate/%	饲料转化率 Feed conversion rate/%	存活率 Survival rate/%	产量增长率 Production growth rate/%	产量/（g·株^-1） Yield /（g·plant^-1）	小区产量 Cell yield/g
F	1.00 a	1.38 a	100	56.82 a	—	—
Fv	1.02 a	1.36 a	100	58.61 a	—	—
Fvs	0.97 a	1.47 a	100	54.86 a	38.75 a	1 239.79 a
Fs	0.96 a	1.47 a	100	56.02 a	28.92 b	925.55 b
