Cloning of Hexokinase Gene from Strongylocentrotus intermedius and Its Expression Response to High Temperature-acidification Stress

doi:10.13304/j.nykjdb.2021.1020

Abstract

Abstract:

In order to clarify the sequence information and expression pattern of hexokinase （HK）in Strongylocentrotus intermedius， and preliminarily understand the effects of high temperature-acidification stress on its expression and activity， Strongylocentrotus intermedius was as material. The full-length cDNA of SiHK in Strongylocentrotus intermedius was cloned and characterized usingcDNA ends rapid amplification （RACE） technology and bioinformatics software. And the expression and enzyme activity of SiHK were analyzed in different tissues.The results showed that the total cDNA length of SiHK gene was 2 041 bp， encoding 476 amino acids. The theoretical isoelectric point （pI） and molecular weight of SiHK protein were 6.44 and 52.72 kD， respectively. The bioinformatics analysis showed that the amino acid sequence of SiHK protein was the most similar to that of Strongylocentrotus purpuratus HK. The results of qRT-PCR showed that SiHK was expressed in all examined tissues with an obvious tissue specifity， which the relative expression levels in intestine and gonad were higher and the total enzyme activities of SiHK in coelomic fluid and tube feet were higher. Compared with CK， the relative expression of SiHK gene and total enzyme activity of SiHK in intestine and gonad of S. intermedius were changed after high temperature-acidification stress 60 d， which suggested that high temperature-acidification stress might affect metabolism of sea urchins by regulating the expression and enzyme activity of key enzymes of glucose metabolism.

Key words: Strongylocentrotus intermedius, hexokinase, gene cloning, high temperature-acidification stress, expression pattern, enzyme activity

摘要：

为明确中间球海胆己糖激酶的序列信息和表达规律，了解高温-酸化胁迫对其表达和生物活性的影响，以中间球海胆为研究对象，利用cDNA末端快速扩增技术获得中间球海胆已糖激酶基因的全长cDNA序列（SiHK），并利用生物信息学软件分析其序列特征，分析高温-酸化胁迫下中间球海胆肠和性腺组织中SiHK基因的表达及其酶活力变化。结果表明，SiHK基因的cDNA全长2 041 bp，编码476个氨基酸，SiHK蛋白的理论等电点为6.44，蛋白质分子质量52.72 kD。生物信息学分析显示，SiHK蛋白氨基酸序列与紫球海胆HK氨基酸序列相似最高。实时荧光定量PCR结果显示，SiHK基因的表达具有组织特异性，其中，肠和性腺组织中SiHK基因的相对表达量较高，而在体腔液和管足中SiHK酶活力较高。高温-酸化胁迫处理60 d后，与对照组相比，处理组中间球海胆的肠和性腺组织中SiHK基因的相对表达量和SiHK酶活性均发生改变。由此表明，高温-酸化胁迫可能通过调控糖代谢关键酶活性对海胆的物质代谢过程产生影响。

关键词: 中间球海胆, 己糖激酶, 基因克隆, 高温-酸化胁迫, 表达模式, 酶活力

CLC Number:

Q781

Boqiong WU, Dongyao CUI, Renhe JIAO, Jian SONG, Yaoyao ZHAN, Yaqing CHANG. Cloning of Hexokinase Gene from Strongylocentrotus intermedius and Its Expression Response to High Temperature-acidification Stress[J]. Journal of Agricultural Science and Technology, 2022, 24(7): 205-217.

武博琼, 崔东遥, 焦仁和, 宋坚, 湛垚垚, 常亚青. 中间球海胆己糖激酶基因克隆及高温-酸化胁迫对其表达影响的初步研究[J]. 中国农业科技导报, 2022, 24(7): 205-217.

Figures/Tables 9

Table1 Seawater parameters of each treatment

处理 Treatment	温度 Temperature/℃	pH_NBS	盐度 Salinaty/PPT	总碱度 TA/（µmol·kg^-1）	二氧化碳分压 pCO₂/kPa
CK	20.10±0.30	8.10±0.03	31.21±0.20	2 360.45±24.18	53.44±2.55
HC	23.20±0.30	8.10±0.03	31.33±0.21	2 363.32±25.34	54.35±3.26
LO	20.30±0.30	7.62±0.04	31.25±0.12	2 360.88±20.33	179.87±5.44
HO	23.00±0.30	7.61±0.03	31.18±0.13	2 349.54±26.42	189.17±7.00

Table 2 Primers used in this study

引物名称 Primer name	引物序列 Primer sequences（5’-3’）	用途 Application	退火温度Temperature/℃
SiHK-F1	AATGCCTGGCGAACAAAATACAG	SiHK-1	54
SiHK-R1	ATCACTGCTACTATGTCAACTCG	SiHK-1	54
SiHK-F2	ATTCCCCTCGGTTTCACCTTTTC	SiHK-2	60
SiHK-R2	ATACCCGAGGCAATCAGTCTGGC	SiHK-2	60
SiHK-F3	GCCAGACTGATTGCCTCGGGTAT	SiHK-3	57
SiHK-R3	GTACGTCCTTACAGTCCAGCAGA	SiHK-3	57
SiHK-5-out	TCACCCACATCACACGGAAGTTG	5’RACE	60
SiHK-5-in	GCATTGAGAGCAGCCTTCAGACC	5’RACE	61
SiHK-3-out	CAATACAACCATCTGCTGGACTG	3’RACE	56
SiHK-3-in	TTCAATAAGCAAGAACATCAGGC	3’RACE	53
UPM	CTAATACGACTCACTATAGGGCAAGCAGTGGTAACAACGCAGAGT	RACE	67
NUP	CTAATACGACTCACTATAGGGC	RACE	52
SiHK-F	ACTCCATCGTCTCCGAATGC	qPCR	60
SiHK-R	CAACGCCTGCTACATGGAAG	qPCR	60
β-actin-F	ACAGGGAAAAGATGGCACAGA	qPCR	60
β-actin-R	AGAGGCGTAGAGGGAAAGCAC	qPCR	60

Fig. 1 Nucleotide and deduced amino acid sequence of SiHK in Strongylocentrotus intermediusNote：Letter in the frame is the starting codon （ATG）； * indicates the terminating codon （TGA）； underline represents the amino acid sequence encoded by the SiHK protein； grey region represents the COG5026 domain； double underlined area （ AATAA） is the unstable factor in 3’-UTR.

Fig. 2 Secondary structure prediction and comparison of hexokinase betweenA：Predicted secondary structure of SiHK in Strongylocentrotus intermedius； B：Comparison of HK secondary structure among S. intermedius （SiHK）， Strongylocentrotus purpuratus （SpHK） and Apostichopus japonicus （AjHK）

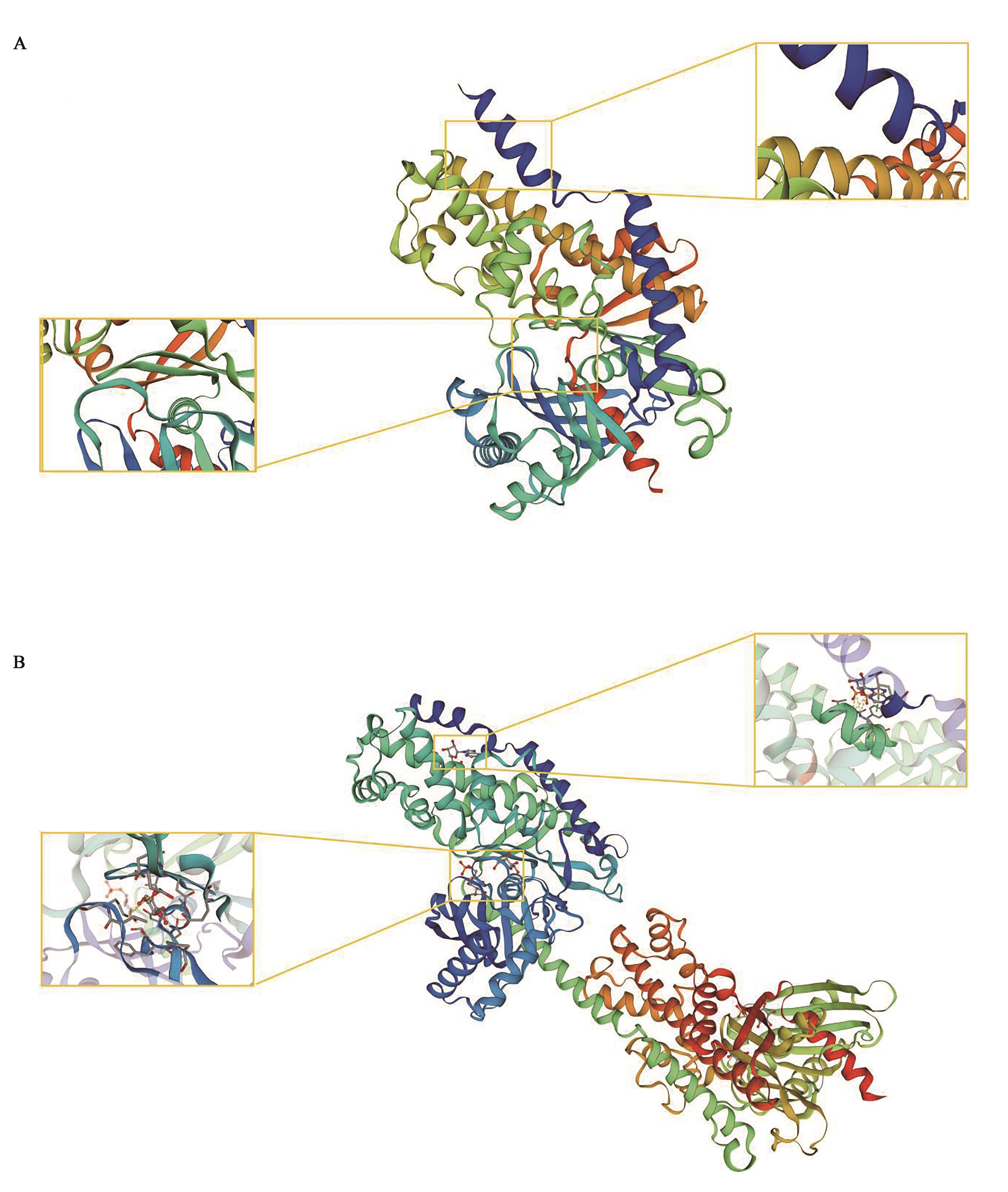

Fig. 3 3D structure prediction of SiHKA：SiHK protein from Strongylocentrotus intermedius；B：HK protein from Homo spains；in the yellow framed area， the club structure represents the phosphate group recognition site， the surrounding protein structure is the enzyme active center， and the yellow dotted line represents the salt bridge.

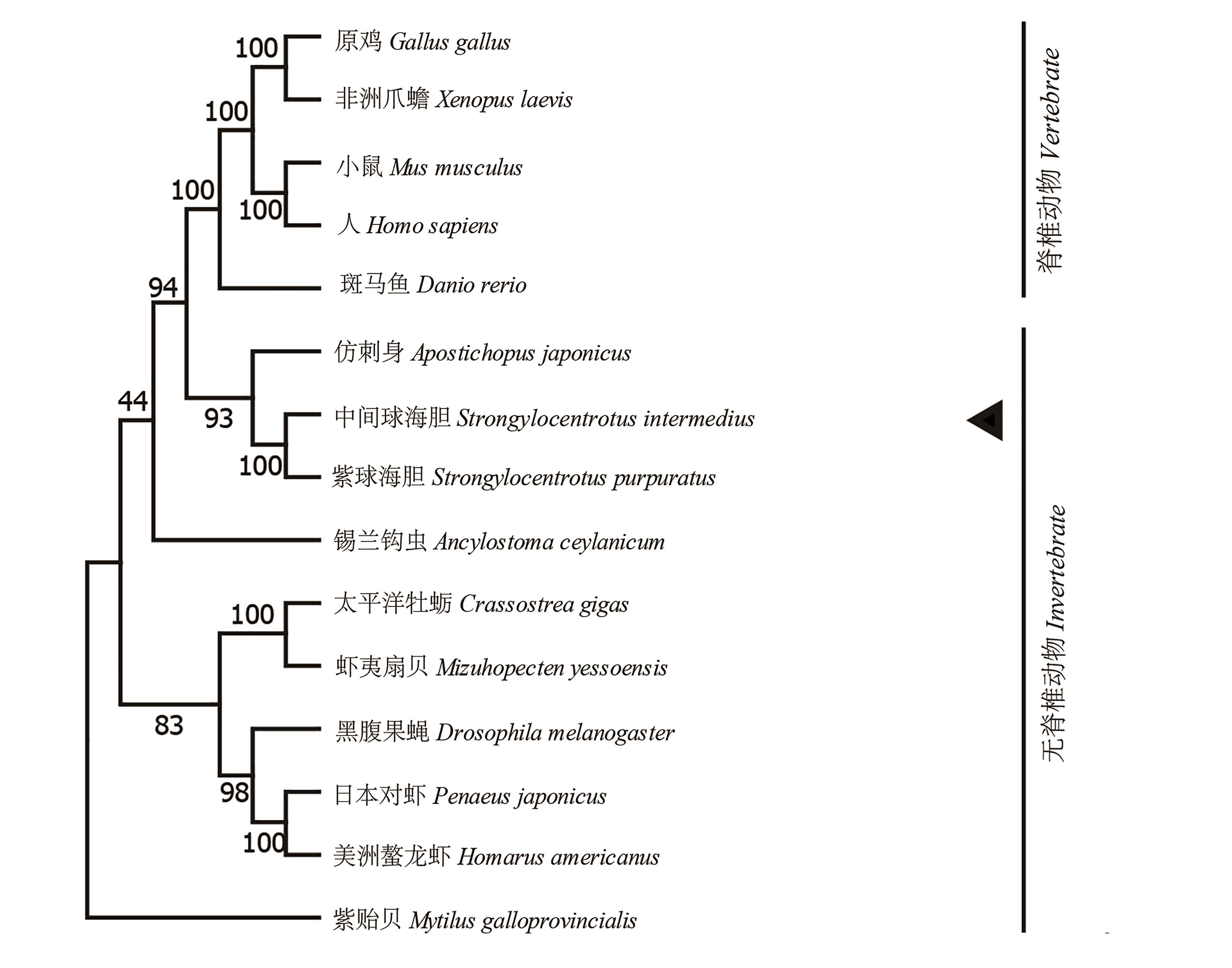

Fig. 4 Phylogenetic analysis of deduced amino acid sequences of SiHKNote：SiHK is marked with black arrow， the numbers at the tree nodes indicate the percentage of bootstrapping after 1 000 replicates.

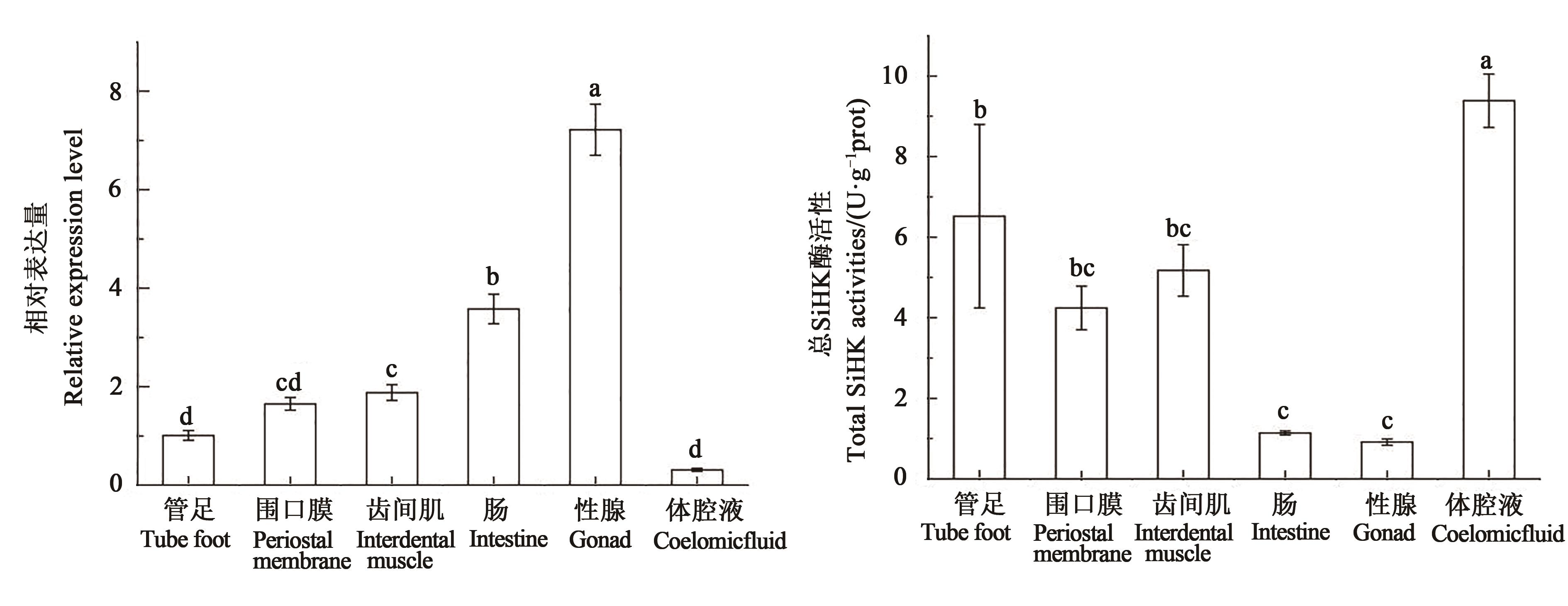

Fig. 5 Relative expression of SiHK and total SiHK activities in different tissues of Strongylocentrotus intermediusNote：Different lowercase letters indicate significant differences between different tissues at P<0.05 level.

Table 3 Two-way ANOVA of effects of high temperature-acidification stress on relative expression and total enzyme activities of SiHK

指标 Index	组织 Organ	因子Factor
指标 Index	组织 Organ	高温 High temperature	酸化Acidification	高温×酸化 High temperature×acidification
SiHK表达量 Relative expression level of SiHK	肠 Intestine	77.918^**	85.696^**	117.932^**
SiHK表达量 Relative expression level of SiHK	性腺 Gonad	0.320	4.173^*	29.133^**
总SiHK酶活力 Total SiHK activity	肠 Intestine	9.217^*	2.553	3.690
总SiHK酶活力 Total SiHK activity	性腺 Gonad	13.046^*	0.486	101.034^**

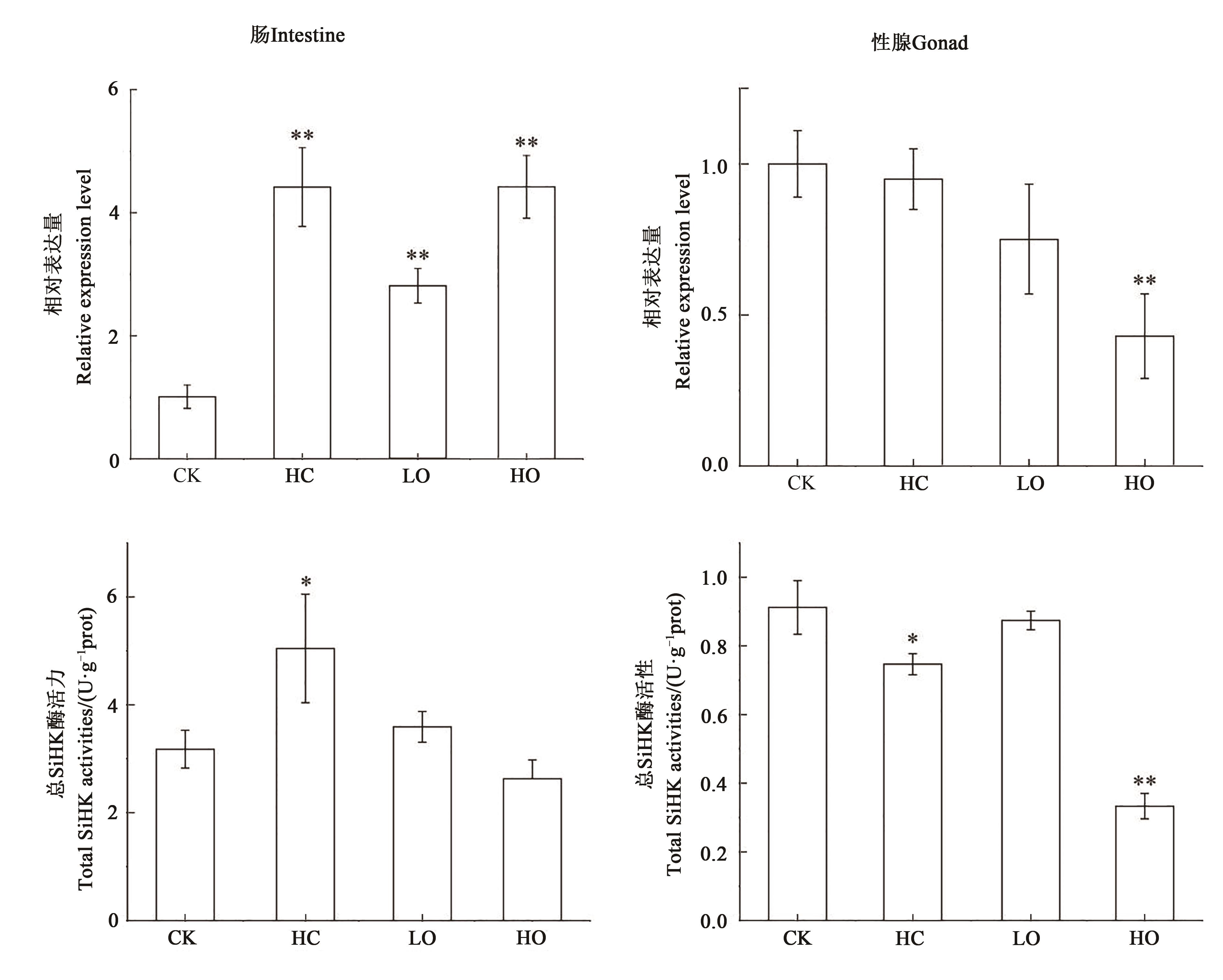

Fig. 6 Relative expression level of SiHK and the total SiHK activities under different treatmentsNote：* and ** indicate significant differences between treatment CK at P<0.05 and P<0.01 levels， respectively.

References 33

1	CALDEIRA K, WICKETT M E. Oceanography: anthropogenic carbon and ocean pH [J]. Nature, 2003, 425(6956):365-365.
2	石莉,桂静,吴克勤.海洋酸化及国际研究动态[J].海洋科学进展,2011,29(1):122-128.
	SHI L, GUI J, WU K Q. Developments in international studies on ocean acidification [J]. Adv. Mar. Sci., 2011, 29(1):122-128.
3	HESTER K C, PELTZER E T, KIRKWOOD W J, et al.. Unanticipated consequences of ocean acidification: a noisier ocean at lower pH [J]. Geophys. Res. Lett., 2008, 35(19):402-411.
4	RIEBESELL U. Climate change: acid test for marine biodiversity [J]. Nature, 2008, 454(7200):46-47.
5	秦艳杰,宋晓楠,李霞,等.海洋酸化和升温对中间球海胆幼虫发育和生长的影响[J].大连海洋大学学报,2013,28(5):450-455.
	QIN Y J, SONG X N, LI X, et al.. Effects of ocean acidification and warming on growth and development in larval sea urchin Strongylocentrotus intermedius [J]. J. Dalian Ocean Univ., 2013, 28(5):450-455.
6	卢羽洁.海洋酸化及变暖对刺参主要生理生态过程和免疫的影响[D].大连:大连海洋大学, 2017.
	LU Y J. Effects of ocean acidification and warming on physio-ecological process and immune responses of sea cucumber Apostichopus japonicus (Selenka) [D]. Dalian: Dalian Ocean University, 2017.
7	尹文露,崔东遥,李莹莹,等.中间球海胆丙酮酸激酶(PK)基因克隆及其对海水酸化的响应[J].大连海洋大学学报,2020,35(3):360-367.
	YIN W L, CUI D Y, LI Y Y, et al.. Cloning and response of pyruvate kinase (PK) gene to seawater acidification in sea urchin Strongylocentrotus intermedius [J]. J. Dalian Ocean Univ., 2020, 35(3):360-367.
8	李笑.海水酸化和升温对日本鼓虾和马粪海胆氧化应激和能量代谢的影响[D].烟台:中国科学院大学,2020.
	LI X. Effects of seawater acidification and thermal sterss on the antioxidant responses and energy metabolism of Alpheus japonicus miers [D]. Yantai: Chinese Academy of Sciences, 2020.
9	GREENBERG D M, MATSUO Y, ROTHSTEIN M. Metabolic pathways of homoserine in the mammal [J]. J. Biol. Chem.. 1956, 221(2):679-687.
10	汝玉涛.柞蚕EcR、USP和HK基因的克隆及表达研究[D].沈阳:沈阳农业大学,2018.
	RU Y T. The clone and expression research of ecdysone receptor and the ultraspiracle and hexokinase gene of Antheraea pernyi [D]. Shenyang: Shenyang Agricultural University, 2018.
11	王倩.己糖激酶1(HK1)在鹅肥肝形成中的作用及调控研究[D].扬州:扬州大学,2019.
	WANG Q. Study on the expression of hexokinase-1 in the development of goose fatty liver and the regulation of its function [D]. Yanghzou: Yangzhou University, 2018
12	刘雅,王庆恒,郑哲,等.马氏珠母贝(Pinctada fucata martensii)Pm-HK基因的克隆及其对温度胁迫的响应[J].基因组学与应用生物学,2019,38(2):503-510.
	LI Y, WANG Q H, ZHENG Z, et al.. Cloning of Pm-HK gene of Pinctada fucata martensii and its response to temperature stress [J]. Gen. App. Biol., 2019, 38(2):503-510.
13	郭彪,王芳,侯纯强,等.温度突变对凡纳滨对虾己糖激酶和丙酮酸激酶活力以及热休克蛋白表达的影响[J].中国水产科学,2008,15(5):885-889.
	GUO B, WANG F, HOU C Q, et al.. Effects of acute temperature fluctuation on HK and PK activity, HSP70 relative content in Litopenaeus vannamei [J]. J. Fish. Sci. China, 2008, 15(5):885-889.
14	常亚青,丁君,宋坚,等.海参海胆生物学研究与养殖[M].北京:海洋出版社,2004:211-216.
	CHANG Y Q, DING J, SONG J, et al.. Biological Study and Breeding of Sea Cucumber and Sea Urchin [M].Beijing: Maritime Press, 2004:211-216.
15	WANG H, ZHAO W F, DING B C, et al.. Comparative lipidomics profiling of the sea urchin, Strongylocentrotus intermedius [J/OL]. Comp. Biochem. Physiol. Part D, 2021, 40:100900 [2021-10-05]. .
16	湛垚垚,黄显雅,段立柱,等.实验室模拟海水酸化系统[P].中华人民共和国国家知识产权局,ZL201320267332.7
17	STOCKER T F, QIN D, PLATTNER G K, et al.. Contribution of working group to the fifth assessment report of the intergovernmental panel on climate change [C]// IPCC. Climate change 2013: the physical science basis. Cambridge: Cambridge University Press, 2007.
18	余舜武,刘鸿艳,罗利军.利用不同实时定量PCR方法分析相对基因表达差异[J].作物学报,2007,33(7):1214-1218.
	YU S W, LIU H Y, LUO L J. Analysis of relative gene expression using different real-time quantitative PCR [J]. Acta Agron. Sin., 2007, 33(7):1214-1218.
19	崔东遥,任丽媛,邢冬飞,等.中间球海胆乳酸脱氢酶基因克隆及其对海水酸化的响应[J].水产学报,2019,43(6):1423-1437.
	CUI D Y, REN L Y, XING D F, et al.. Identification and characterization of LDH gene and its response to seawater acidification in the sea urchin (Strongylocentrotus intermedius) [J]. J. Fish. China, 2019, 43(6):1423-1437.
20	HU M Y, KATHARINA M, KREISS C M, et al.. Temperature modulates the effects of ocean acidification on intestinal ion transport in Atlantic Cod, Gadus morhua [J/OL]. Front. Physiol., 2016, 7:198 [2021-10-05]. .
21	KURIHARA H, YIN R, NISHIHARA G N, et al.. Effect of ocean acidification on growth, gonad development and physiology of the sea urchin Hemicentrotus pulcherrimus [J]. Aquat. Biol., 2013, 18(3):281-292.
22	STUMPP M, WREN J, MELZNER F, et al.. CO₂ induced seawater acidification impacts sea urchin larval development I: Elevated metabolic rates decrease scope for growth and induce developmental delay [J]. Comp. Biochem. Physiol. A Mol. Integr. Physiol., 2011, 160(3):331-340.
23	YUAN X, SHAO S, DUPONT S, et al.. Impact of CO₂-driven acidification on the development of the sea cucumber Apostichopus japonicas (Selenka) (Echinodermata: Holothuroidea) [J]. Mar. Pollut. Bull., 2015, 95(1):195-199.
24	WOOD H, SPICER J, WIDDICOMBE S. Ocean acidification may increase calcification rates, but at a cost [J]. Proc. Biol. Sci., 2008, 275(1644):1767-1773.
25	郭蔼光.基础生物化学[M].第2版.北京:高等教育出版社,2009:151-158.
	GUO A G. Fundamentals of Biochemistry [M]. 2nd Ed n. Beijing: Higher Education Press, 2009:151-158.
26	KATZEN H M, SCHIMKE R T. Multiple forms of hexokinase in the rat: tissue distribution, age dependency, and properties [J]. Proc. Natl. Acad. Sci. USA, 1965, 54:1218-1225.
27	DOBRETSOV S, COUTINHO R, RITTSCHOF D, et al.. The oceans are changing: impact of ocean warming and acidification on biofouling communities [J]. Biofouling, 2019, 35(5):1-11.
28	许冰,贾爱芳,赵文献.温度对酶活性的影响[J].临床合理用药杂志,2010,3(7):28-28.
29	常亚青,王子臣,王国江.温度和藻类饵料对虾夷马粪海胆摄食及生长的影响[J].水产学报,1999,23(1):69-76.
	CHANG Y Q, WANG Z C, WANG G J. Effect of temperature and algae on feeding and growth in sea urchin Strongylocentrotus intermedius [J]. J. Fish. China, 1999, 23(1):69-76.
30	马红悦,李玲,李艳艳,等.沙葱萤叶甲己糖激酶基因的克隆、相对表达量及RNA干扰效应[J].植物保护学报,2020,47(6):1211-1218.
	MA H Y, LI L, LI Y Y, et al.. Cloning, relative expression, and RNAi effects of the hexokinase gene in Galeruca daurica (Coleoptera: Chrysomelidae) [J]. J. Plant Prot., 2020, 47(6):1211-1218.
31	童欢, AKIBER C W,袁海荣,等.酸化温度对玉米秸秆厌氧水解酸化性能的影响[J].可再生能源,2020,38(8):995-1000.
	TONG H, AKIBER C W, YUAN H R, et al.. Effect of acidification temperature on anaerobic hydrolysis and acidogenesis of corn straw [J]. Renew. Energy Resour., 2020, 38(8):995-1000.
32	ZHAN Y, CUI D, XING D, et al.. CO₂-driven ocean acidification repressed the growth of adult sea urchin Strongylocentrotus intermedius by impairing intestine function [J/OL]. Mar. Pollut. Bull., 2020, 153:110944 [2021-10-05]. .
33	UTHICKE S, LIDDY M, NGUYEN H D, et al.. Interactive effects of near-future temperature increase and ocean acidification on physiology and gonad development in adult Pacific sea urchin, Echinometra sp. A [J]. Coral Reefs., 2014, 33(3):831-845.
