Effects of Modified Cellulose on Germination and Dryland Soil Physicochemical Properties of Upland Rice

doi:10.13304/j.nykjdb.2021.0850

Abstract

Abstract:

Water shortage and low nutrient utilization have always been important factors restricting the development of dryland agriculture in China. Modified cellulose can effectively hold soil moisture and nutrients， and also has a slow-release effect to promote crop growth. This study explored the effect of carboxymethyl cellulose （CMC） on dryland soil properties and its practical effect in the process of plant growth， so as to provide scientific basis for the application amount and method of carboxymethyl cellulose in dryland soil. The effects of CMC-NH₄， CMC-Na and CMC-K at 0.05%， 0.10%， 0.30% and 0.50% on germination， soil moisture， physical properties and nutrients of upland rice were studied by pot experiment. The results showed that compared with the control group， the application of 0.05% of the three modified cellulose could promote the germination and increase the aboveground biomass by 214.29% to 316.33%. Adding modified cellulose could reduce soil water loss in the early stage of the experiment， and had no significant effect on soil cumulative water loss. However， it could increase soil hardness and soil compactness， especially CMC-NH₄ and CMC-Na. In addition， the application of CMC-NH₄ tended to decrease soil pH value， while the application of CMC-Na and CMC-K tended to increase soil pH value. As for soil nutrients， the contents of nitrate and ammonium nitrogen in soil increased 202.45%~1 017.79% and 48.20%~172.60% by applying CMC-NH₄， respectively. The content of soil available phosphorus was increased by modified cellulose treatment to different extent. What’s more， the application of CMC-K could significantly increase the content of soil available potassium， up to 344.94%~1 458.73%. Therefore， the application amount of the three modified cellulose at 0.05% is beneficial to crop growth and soil nutrients increase， and can be used as soil amendments in dryland.

Key words: modified celluloser, soil nutrient, soil moisture, upland rice growth

摘要：

水资源短缺和养分利用率低一直是制约我国旱地农业发展的重要因素，而改性纤维素能够有效固持土壤水分和养分，同时还具有缓释作用促进作物生长。探究了羧甲基纤维素（Carboxymethyl cellulose，CMC）对旱地土壤性质的影响及其在植株生长过程中的实际应用效果，为羧甲基纤维素在旱地土壤中施用量、施用方法提供科学依据。通过旱稻盆栽试验，研究CMC-NH₄、CMC-Na和CMC-K施加量为0.05%、0.10%、0.30%和0.50%时对旱稻萌发、土壤水分、物理性质、养分的影响。结果表明，与对照组相比，施加0.05%的3种改性纤维素均可以促进旱稻萌发和增加地上部生物量，达214.29%~316.33%。施加改性纤维素能降低培养前期土壤水分流失量，但对土壤累积水分流失量无显著性影响；其对土壤物理性质影响较大，尤其是CMC-NH₄和CMC-Na可以增加土壤硬度以及土壤紧实度。施加CMC-NH₄有降低土壤pH的趋势，而施加CMC-Na和CMC-K有增加土壤pH的趋势。施加CMC-NH₄可以增加土壤硝态氮和铵态氮含量，分别达202.45%~1 017.79%和48.20%~172.60%；3种改性纤维素均在不同程度上提高了土壤速效磷含量；仅施加CMC-K可以显著增加土壤速效钾含量，达344.94%~1 458.73%。因此，3种改性纤维素施加量为0.05%时有利于作物生长和土壤养分的增加，可以作为旱地土壤改良剂应用。

关键词: 改性纤维素, 土壤养分, 土壤水分, 旱稻生长

CLC Number:

S156.2

Hongyuan LIU, Zhihua ZHOU, Guangxin ZHAO, Yanjun WANG, Nana WANG. Effects of Modified Cellulose on Germination and Dryland Soil Physicochemical Properties of Upland Rice[J]. Journal of Agricultural Science and Technology, 2023, 25(5): 168-175.

刘宏元, 周志花, 赵光昕, 王艳君, 王娜娜. 改性纤维素对旱稻萌发和旱地土壤性质的影响[J]. 中国农业科技导报, 2023, 25(5): 168-175.

Figures/Tables 7

Table 1 Treatment of pot experiment

处理 Treatment	纤维素类型 Cellulose type	施加比例 Proportion/%	处理 Treatment	纤维素类型 Cellulose type	施加比例 Proportion/%
CK	—	0.00	B3	CMC-Na	0.30
A1	CMC-NH₄	0.05	B4	CMC-Na	0.50
A2	CMC-NH₄	0.10	C1	CMC-K	0.05
A3	CMC-NH₄	0.30	C2	CMC-K	0.10
A4	CMC-NH₄	0.50	C3	CMC-K	0.30
B1	CMC-Na	0.05	C4	CMC-K	0.50
B2	CMC-Na	0.10

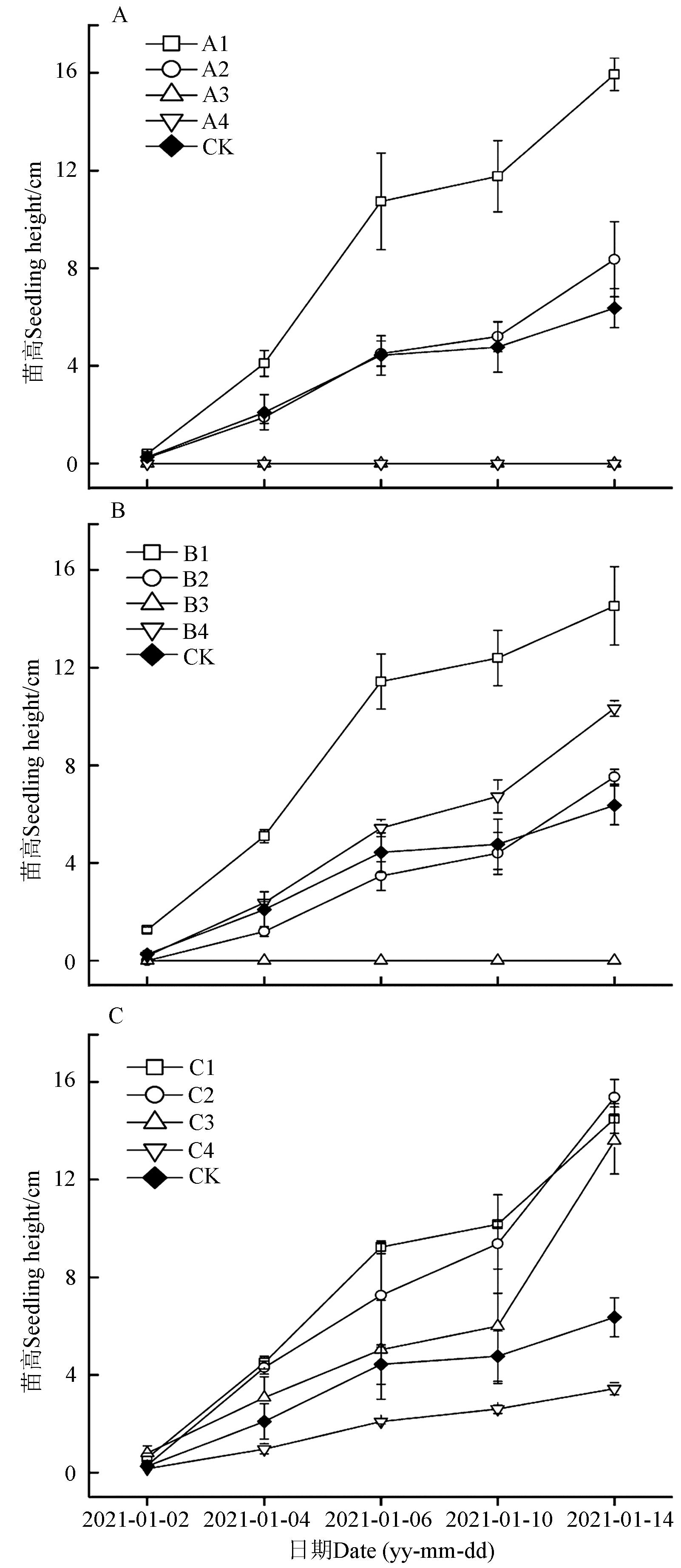

Fig. 1 Changes of CMC?NH4，CMC?Na，CMC?K application on plant height

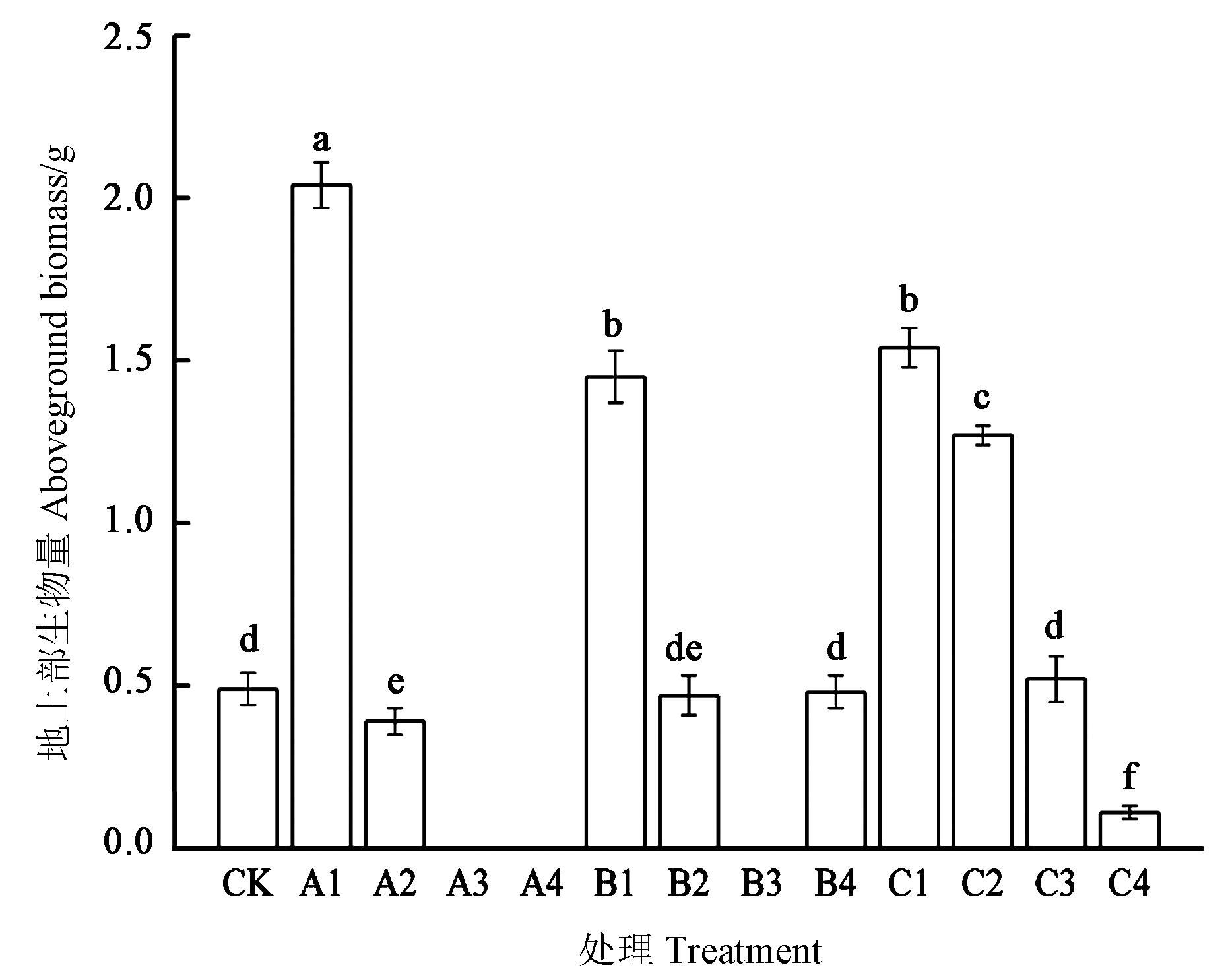

Fig. 2 Aboveground biomass in each treatmentNote：Different lowercase letters indicate significant differences among treatments at P<0.05 level.

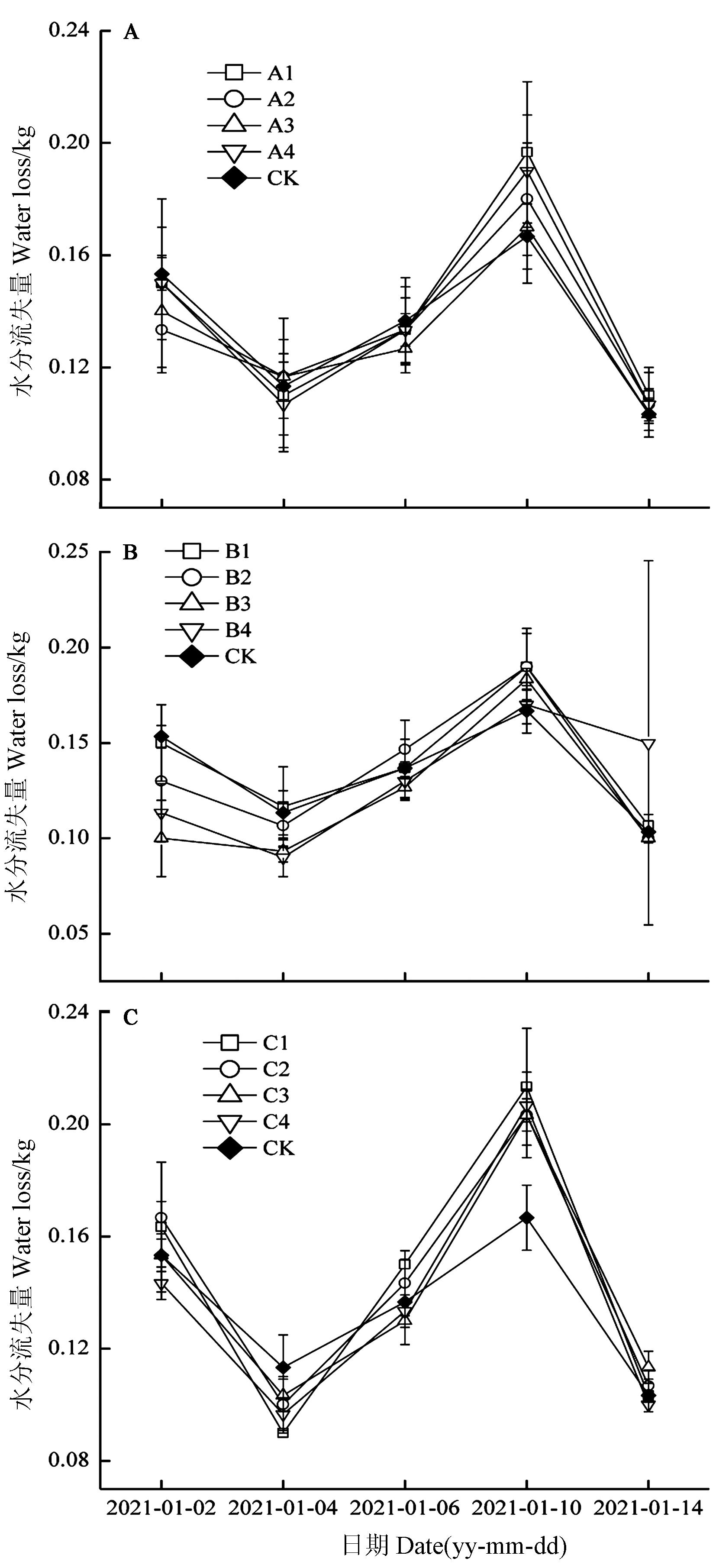

Fig. 3 Changes of CMC?NH4，CMC?Na，CMC?K application on soil water loss

Table 2 Cumulative water loss in each treatment

处理 Treatment	失水量 Water loss/kg	处理 Treatment	失水量 Water loss/kg
CK	0.67±0.02	B3	0.65±0.02
A1	0.70±0.02	B4	0.65±0.09
A2	0.67±0.02	C1	0.72±0.04
A3	0.66±0.03	C2	0.72±0.01
A4	0.69±0.03	C3	0.70±0.01
B1	0.70±0.03	C4	0.68±0.01
B2	0.67±0.03

Table 3 Physical and chemical properties in each treatment

处理 Treatment	pH	土壤紧实度 Soil compaction/kPa	硬度与土壤成块性 Hardness and fragmentation	表面结皮厚度 Surface crust thickness/mm
CK	8.06±0.14 de	905.96±12.69 fg	土壤松软，未结块 Soil is loose， no agglomeration	0.00±0.00 d
A1	7.95±0.15 ef	1 035.82±12.36 ef	土壤较硬，未结块 Soil is hard， no agglomeration	1.77±0.42 bc
A2	7.94±0.08 ef	1 053.53±50.74 e	土壤较硬，少许板结、结块 Soil is hard， there is a small amount of soil caking	2.73±0.64 bc
A3	7.90±0.13 ef	1 146.94±21.43 e	土壤较硬，较多板结、结块 Soil is hard， there is a large amount of soil caking	2.90±0.17 bc
A4	7.77±0.17 f	1 286.14±59.10 d	土壤硬，较多板结、结块 Soil is hard， there is a large amount of soil caking	3.07±0.23 b
B1	8.33±0.12 bc	1 781.54±107.12 c	土壤坚硬，形成小结块 Soil agglomerate hardness is slightly harder	1.53±0.21 c
B2	8.42±0.14 b	1 905.46±111.02 c	土壤坚硬，形成小结块 Soil agglomerate hardness is slightly harder	2.50±0.26 c
B3	8.50±0.16 b	2 119.97±96.21 b	土壤非常坚硬，形成大结块 Soil is very hard and forms thick caking	3.83±0.06 bc
B4	8.84±0.10 a	2 313.36±202.74 a	土壤非常坚硬，形成大结块 Soil is very hard and forms thick caking	3.93±0.15 bc
C1	8.09±0.12 de	874.30±15.37 g	表层较硬，下层松软 Surface is hard and the bottom soil is loose	1.57±0.06 c
C2	8.19±0.18 cd	900.87±23.26 g	表层较硬，下层松软 Surface is hard and the bottom soil is loose	1.83±0.21 bc
C3	8.45±0.17 b	930.75±31.05 fg	表层较硬，下层较为松软 Surface is hard and the bottom soil is a little loose	2.03±0.15 b
C4	8.47±0.09 b	927.75±7.88 fg	表层较硬，下层较为松软 Surface is hard and the bottom soil is a little loose	2.57±0.12 a

Table 4 Soil nutrients in each treatment

处理 Treatment	铵态氮 NH $4 +$ -N	硝态氮 NO $3 -$ -N	速效磷 Available phosphorus	速效钾 Available potassium
CK	1.63±0.23 de	29.23±5.40 fg	12.30±1.42 e	161.67±7.02 e
A1	1.92±0.35 de	31.51±0.60 efg	15.47±2.89 cde	197.00±56.35 e
A2	4.93±1.18 c	43.32±1.55 cd	14.17±0.49 de	171.33±14.74 e
A3	15.40±0.59 b	64.09±0.98 b	19.26±2.21 b	173.33±3.21 e
A4	18.22±1.09 a	79.68±10.18 a	19.06±1.63 b	170.67±8.08 e
B1	1.16±0.34 ef	43.51±3.43 cd	18.60±3.16 bc	157.33±5.13 e
B2	1.01±0.13 f	37.01±3.28 de	16.70±3.18 bcd	162.33±6.03 e
B3	1.73±0.20 de	27.20±1.66 g	14.31±3.60 de	156.33±5.77 e
B4	2.09±0.56 d	12.82±1.14 h	13.07±1.11 e	158.33±4.51 e
C1	0.74±0.19 f	48.37±5.03 c	20.13±0.95 b	719.33±24.01 d
C2	0.68±0.14 f	34.54±5.68 efg	19.43±0.40 b	783.67±10.07 c
C3	0.86±0.19 f	35.10±6.48 ef	19.77±1.88 b	1 073.33±85.20 b
C4	2.28±0.16 d	36.63±2.46 def	24.87±1.88 a	2 520.00±233.88 a

Table 4 Soil nutrients in each treatment

处理 Treatment	铵态氮 NH $4 +$ -N	硝态氮 NO $3 -$ -N	速效磷 Available phosphorus	速效钾 Available potassium
CK	1.63±0.23 de	29.23±5.40 fg	12.30±1.42 e	161.67±7.02 e
A1	1.92±0.35 de	31.51±0.60 efg	15.47±2.89 cde	197.00±56.35 e
A2	4.93±1.18 c	43.32±1.55 cd	14.17±0.49 de	171.33±14.74 e
A3	15.40±0.59 b	64.09±0.98 b	19.26±2.21 b	173.33±3.21 e
A4	18.22±1.09 a	79.68±10.18 a	19.06±1.63 b	170.67±8.08 e
B1	1.16±0.34 ef	43.51±3.43 cd	18.60±3.16 bc	157.33±5.13 e
B2	1.01±0.13 f	37.01±3.28 de	16.70±3.18 bcd	162.33±6.03 e
B3	1.73±0.20 de	27.20±1.66 g	14.31±3.60 de	156.33±5.77 e
B4	2.09±0.56 d	12.82±1.14 h	13.07±1.11 e	158.33±4.51 e
C1	0.74±0.19 f	48.37±5.03 c	20.13±0.95 b	719.33±24.01 d
C2	0.68±0.14 f	34.54±5.68 efg	19.43±0.40 b	783.67±10.07 c
C3	0.86±0.19 f	35.10±6.48 ef	19.77±1.88 b	1 073.33±85.20 b
C4	2.28±0.16 d	36.63±2.46 def	24.87±1.88 a	2 520.00±233.88 a

References 31

1	CHIANG F, MAZDIYASNI O, AGHAKOUCHAK A. Evidence of anthropogenic impacts on global drought frequency, duration, and intensity [J]. Nat. Commun., 2021, 12(1): 1-10.
2	CAO Y, ZHANG W, REN J. Efficiency analysis of the input for water-saving agriculture in China [J]. Water, 2020, 12(1): 207.
3	WANG W S, YANG S Q, ZHANG A P, et al.. Synthesis of a slow-release fertilizer composite derived from waste straw that improves water retention and agricultural yield [J]. Sci. Total Environ., 2021, 768(1):144978 .
4	杨世琦,邢磊,刘宏元,等.羧甲基纤维素铵对黄土高原新造耕地土壤性质的影响[J].西北农林科技大学学报(自然科学版), 2021, 49(5):74-80.
	YANG S Q, XING L, LIU H Y, et al.. Effects of applying ammonium carboxymethyl cellulose on soil properties of new cultivated farmland in Loess Plateau [J]. J. Northwest A & F Univ. (Nat. Sci.), 2021, 49(5):74-80.
5	廖人宽,杨培岭,任树梅.高吸水树脂保水剂提高肥效及减少农业面源污染[J].农业工程学报, 2012, 28(17):1-10.
	LIAO R K, YANG P L, REN S M. High water absorbing resin water retention agent improves fertilizer efficiency and reduces agricultural non-point source pollution [J]. Trans. Chin. Soc. Agric. Eng., 2012, 28(17):1-10.
6	苟春林,王新爱,李永胜,等.保水剂与氮肥的相互影响及节水保肥效果[J].中国农业科学, 2011, 44(19):4015-4021.
	GOU C L, WANG X A, LI Y S, et al.. Interaction between water retaining agent and nitrogen fertilizers and the effect of water and fertilizer conservation [J]. Sci. Agric. Sin., 2011, 44(19):4015-4021.
7	侯贤清,李荣,何文寿,等.保水剂施用量对旱作土壤理化性质及马铃薯生长的影响[J].水土保持学报, 2015, 29(5):325-330.
	HOU X Q, LI R, HE W S, et al.. Effect of water-retaining agent application rate on soil physical and chemical properties and potato growth in dry farming [J]. J. Soil Water Conserv., 2015, 29(5):325-330.
8	SHI Z, ZHANG Y, PHILLIPS G, et al.. Utilization of bacterial cellulose in food [J]. Food Hydrocolloid., 2014, 35(1):539-545.
9	PRADO H J, MATULEWICZ M C. Cationization of polysaccharides: a path to greener derivatives with many industrial applications [J]. Eur. Polym. J., 2014, 52:53-75.
10	HOKKANEN S, BHATNAGAR A, SILLANPAA M. A review on modification methods to cellulose-based adsorbents to improve adsorption capacity [J]. Water Res., 2016, 91:156-173.
11	WANG W S, YANG S Q, ZHANG A P, et al.. Preparation and properties of novel corn straw cellulose-based superabsorbent with water-retaining and slow-release functions [J]. J. Appl. Polym. Sci., 2020, 137(32): 48951.
12	王惟帅,杨世琦.羧甲基纤维素钠制备及改性研究[J].合成纤维, 2018, 47(10):24-30.
	WANG W S, YANG S Q. Study on the preparation and modification of carboxymethyl cellulose [J]. Synthetic Fiber, 2018, 47(10):24-30.
13	LIU H Y, LI H B, ZHANG A P, et al.. Inhibited effect of biochar application on N₂O emissions is amount and time-dependent by regulating denitrification in a wheat-maize rotation system in North China [J]. Sci. Total Environ., 2020, 721: 137636.
14	王化琪.旱稻二十一世纪新粮源[J].中国农村小康科技, 1998(7):26-27.
15	邢磊.改性纤维素对黄土高原农田土壤及作物的影响研究[D].北京:中国农业科学院, 2019.
	XING L. Effects of modified cellulose on farmland soil and crops in Loess Plateau [D].Beijing :Chinese Academy of Agricultural Sciences, 2019.
16	杨永辉,吴普特,武继承,等.保水剂对冬小麦不同生育阶段土壤水分及利用的影响[J].农业工程学报, 2010, 26(12):19-26.
	YANG Y H, WU P T, WU J C, et al.. Impacts of water-retaining agent on soil moisture and water use in different growth stages of winter wheat [J]. Trans. Chin. Soc. Agric. Eng., 2010, 26(12):19-26.
17	王琰,井大炜,付修勇,等.保水剂施用量对杨树苗土壤物理性状与微生物活性的影响[J].水土保持通报, 2017, 37(3):53-58.
	WANG Y, JING D W, FU X Y, et al.. Effects of application amount of super-absorbent polymer on soil physical characteristics and microbial activity under poplar seedlings [J]. Bull. Soil Water Conserv., 2017, 37(3):53-58.
18	许紫峻,韩舒,师庆东.不同保水剂对土壤物理性质影响的探究[J].节水灌溉, 2016(10):10-14.
	XU Z J, HAN S, SHI Q D. Effect of different super absorbent polymer on soil physical properties [J]. Water Sav. Irrig., 2016(10):10-14.
19	纪冰祎,李娜,王云跃.保水剂对土壤物理性质影响的研究进展[J].水土保持应用技术, 2018(5):29-31.
	JI B Y, LI N, WANG Y Y. Research progress on effects of water retaining agents on soil physical properties [J]. Technol. Soil Water Conserv., 2018(5):29-31.
20	邢磊,杨世琦.改性纤维素的吸附性能及应用研究进展[J].中国农学通报, 2020, 36(3):59-65.
	XING L, YANG S Q. Adsorption properties and application of modified cellulose: a review [J]. Chin. Agric. Sci. Bull., 2020, 36(3):59-65.
21	倪芳,蔡卫兵,蒲双双,等.保水剂对土壤含水量及黑麦草种子萌发的影响[J].安徽农业科学, 2016, 44(27):52-54.
	NI F, CAI W B, PU S S, et al.. Effects of water retaining agent on total soil moisture content and seed germination of perennial rye-grass [J]. J. Anhui Agric. Sci., 2016, 44(27):52-54.
22	黄志勇,赵春燕,倪佳东,等.吡啶酮改性纤维素吸附剂对金属离子的吸附性能[J].离子交换与吸附, 2016, 32(5):440-448.
	HUANG Z Y, ZHAO C Y, NI J D, et al.. Metal cation adsorption properties of pyridone functionalized cellulosic adsorbent [J]. Ion. Exch. Adsorpt., 2016, 32(5):440-448.
23	杨世琦,邢磊,刘宏元,等.羧甲基纤维素钠对黄土高原新造耕地土壤改良效果[J].中国农业大学学报, 2021, 26(4):185-191.
	YANG S Q, XING L, LIU H Y, et al.. Effects of sodium carboxymethyl cellulose application on soil properties of new cultivating farmland in Loess Plateau [J]. J. China Agric. Univ., 2021, 26(4):185-191.
24	白文波,李茂松,赵虹瑞,等.保水剂对土壤积水入渗特征的影响[J].中国农业科学, 2010, 43(24):5055-5062.
	BAI W B, LI M S, ZHAO H R, et al.. Effect of water retaining agent on infiltration characteristics of soil water accumulation [J]. Sci. Agric. Sin., 2010, 43(24):5055-5062.
25	王惟帅,杨正礼,张爱平,等.玉米秸秆基纤维素保水缓释肥制备及应用[J].农业工程学报, 2020, 36(2):236-244.
	WANG W S, YANG Z L, ZHANG A P, et al.. Preparation and application of corn straw cellulose-based fertilizer with integration of water-retaining and slow-release [J]. Trans. Chin. Soc. Agric. Eng., 2020, 36(2):236-244.
26	KANMANI P, ARAVIND J, KAMARAJ M, et al.. Environmental applications of chitosan and cellulosic biopolymers: a comprehensive outlook [J]. Bioresource Technol., 2017(242):295-303.
27	OMER A M, ELGARHY G S, EL-SUB R UITI G M, et al.. Fabrication of novel iminodiacetic acid-functionalized carboxymethyl cellulose microbeads for efficient removal of cationic crystal violet dye from aqueous solutions [J]. Int. J. Biol. Macromol., 2020, 148:1072-1083.
28	邢磊,杨世琦.改性纤维素对盆栽小麦生长及土壤水分和养分的影响[J].西北农业学报, 2019, 28(4):536-545.
	XING L, YANG S Q. Effects of modified cellulose on growth of potted wheat and soil moisture and nutrients [J]. Acta. Agric. Bor-Occid. Sin., 2019, 28(4):536-545.
29	杨静静,王秀峰,魏珉,等.保水剂吸水、‍释水及吸肥特性研究[J].山东农业大学学报(自然科学版), 2016, 47(5):696-700.
	YANG J J, WANG X F, WEI M, et al.. Study on characteristics of absorption,release and fertilizer absorption of water retaining agent [J]. J. Shandong Agric. Univ. (Nat. Sci.), 2016, 47(5):696-700.
30	LU S, LIU W, WANG Y, et al.. An adsorbent based on humic acid and carboxymethyl cellulose for efficient dye removal from aqueous solution [J]. Int. J. Biol. Macromol., 2019, 134:790-797.
31	UGAWA S, INAGAKI Y, KARIBU F, et al.. Effects of soil compaction by a forestry machine and slash dispersal on soil N mineralization in Cryptomeria japonica plantations under high precipitation [J]. New For., 2020, 51(5):1-21.
