Effect of Biochar on Mechanical Properties of Zein/Polypropylene Composites

doi:10.13304/j.nykjdb.2022.0572

Abstract

Abstract:

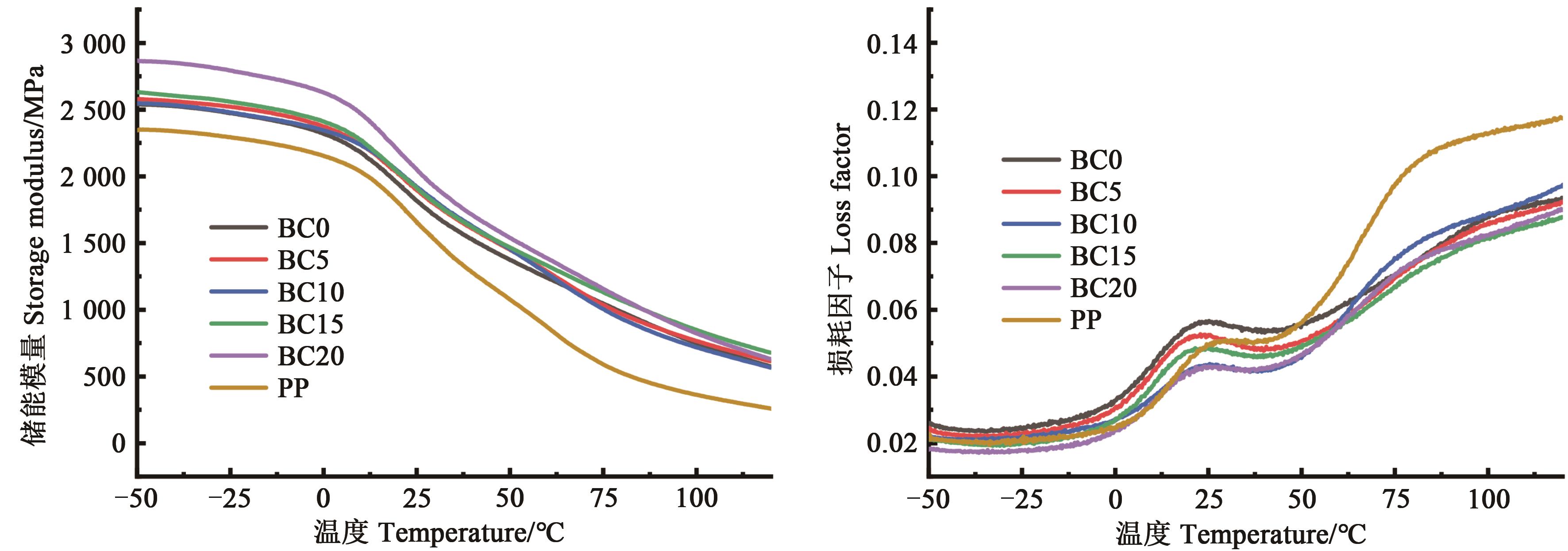

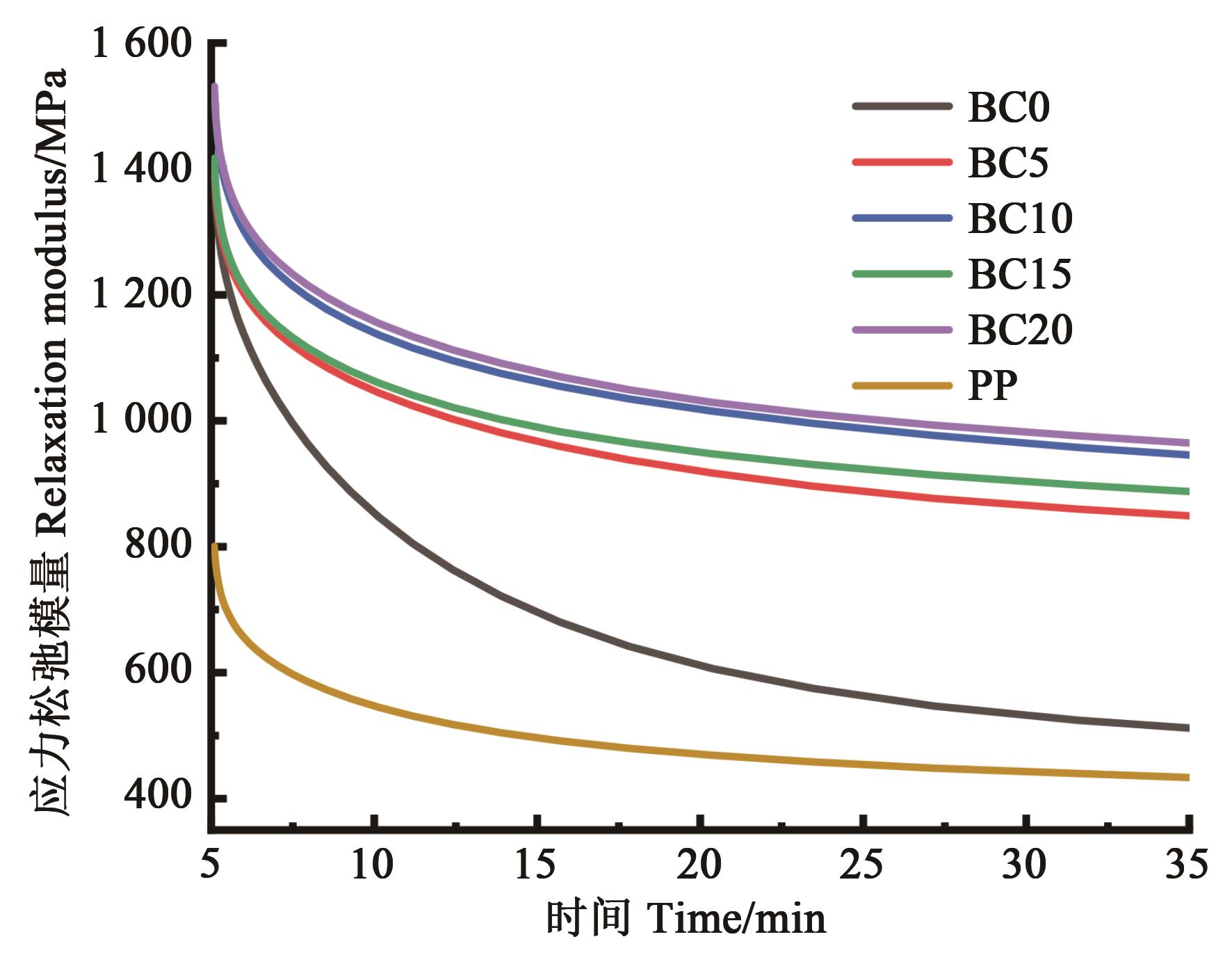

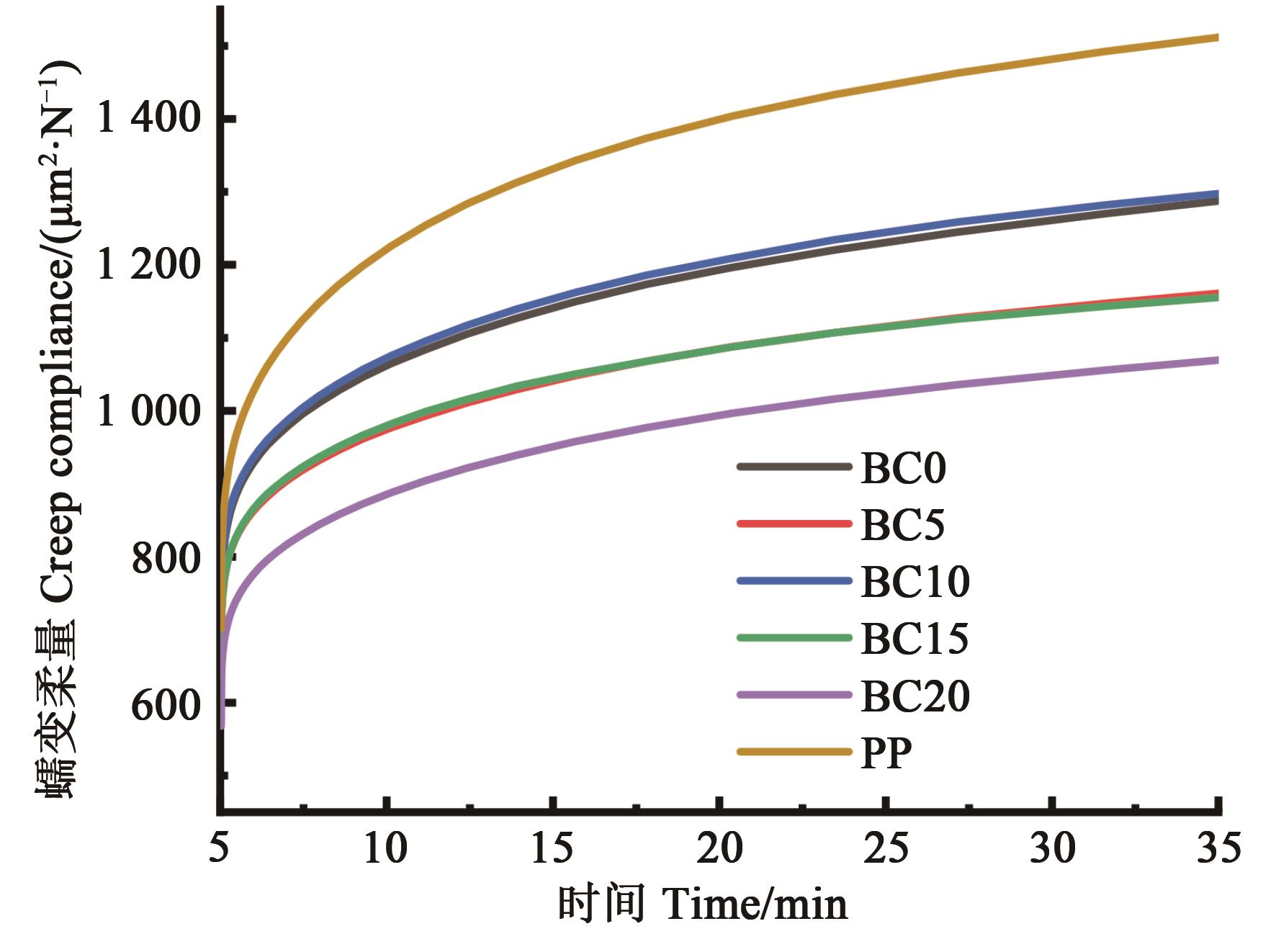

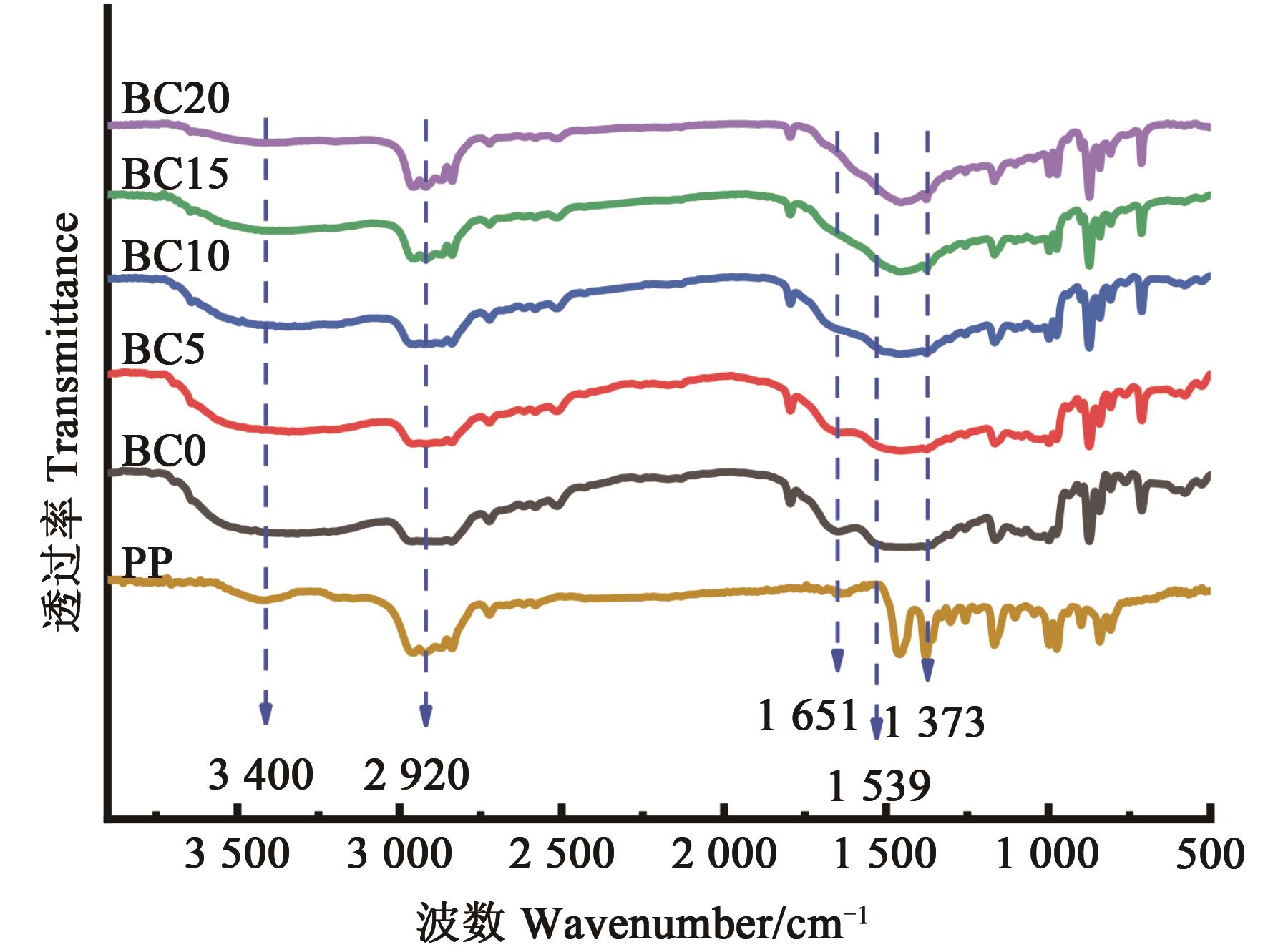

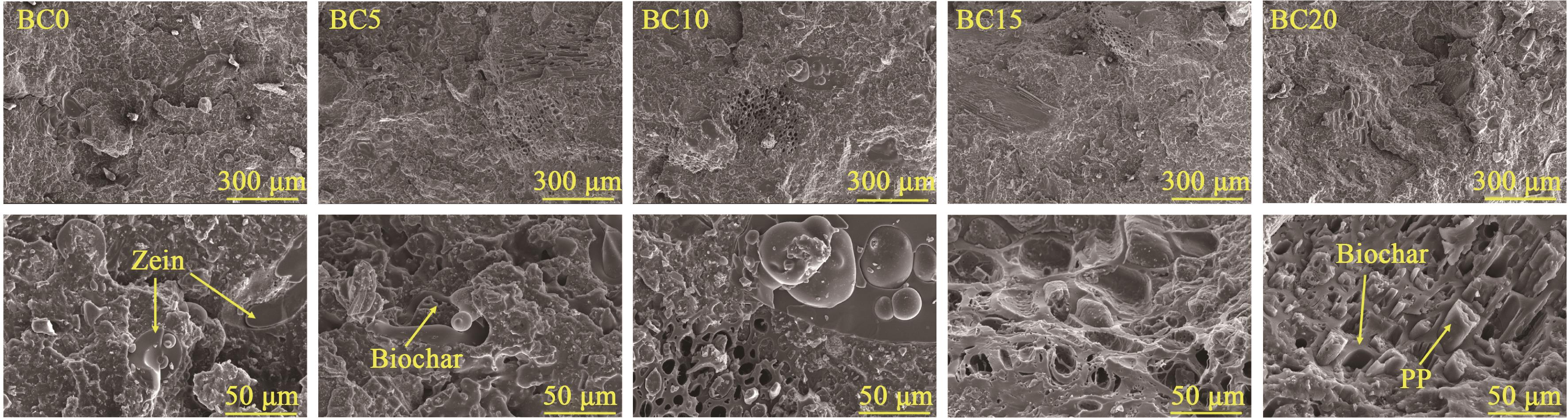

In order to realize material utilization of zein， the composite was prepared using biochar， polypropylene （PP） and zein， and the effect of biochar on mechanical properties of Zein/PP composite was studied. The results showed that the increase of biochar did not change the crystal structure of PP and reduced the relative crystallinity of Zein/PP composites. The stable interface structure formed by biochar pores and PP matrix improved the flexural properties， tensile properties， impact strength， rigidity， elasticity， and dimensional stability of Zein/PP composites. When the content of biochar was 15%， the composites obtained the best mechanical properties， and the flexural strength， flexural modulus， tensile strength， tensile modulus， elongation at break and impact strength were 44.68 MPa， 2.66 GPa， 24.27 MPa， 0.29 GPa， 7.07% and 6.10 kJ·m^-2， respectively. The results provided a basis for improving the properties of Zein/PP composites.

Key words: biochar, zein, polypropylene, composites, mechanical properties

摘要：

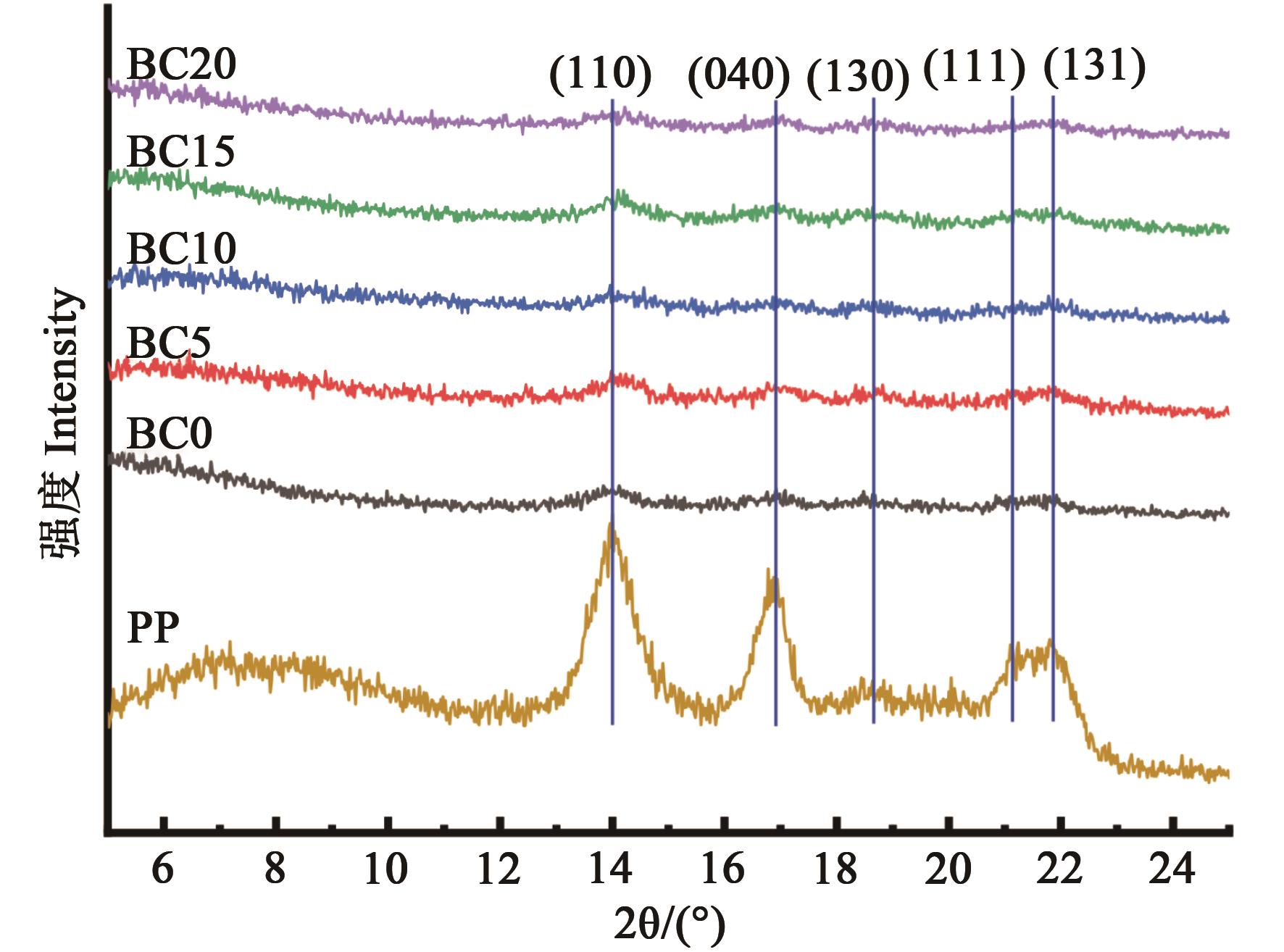

为实现玉米醇溶蛋白（Zein）的材料化利用，以生物炭、聚丙烯（polypropylene，PP）、Zein为原料制备复合材料（Zein/PP），探究生物炭对Zein/PP复合材料力学性能的影响。结果表明，生物炭与Zein均没有改变PP的晶面结构，生物炭降低了Zein/PP复合材料的相对结晶度；生物炭的多孔结构与PP形成了一种稳定的界面结构，进而改善了Zein/PP复合材料的弯曲性能、拉伸性能、冲击强度、刚性、弹性、尺寸稳定性。当生物炭的含量为15%时，复合材料的综合力学性能最佳，其弯曲强度、弯曲模量、拉伸强度、拉伸模量、断裂伸长率、冲击强度分别为44.68 MPa、2.66 GPa、24.27 MPa、0.29 GPa、7.07%、6.10 kJ·m^-2。试验结果可为Zein/PP复合材料性能的改善提供依据。

关键词: 生物炭, 玉米醇溶蛋白, 聚丙烯, 复合材料, 力学性能

CLC Number:

TM332

Yuyong WEI, Qingfa ZHANG, Kuichuan SHENG. Effect of Biochar on Mechanical Properties of Zein/Polypropylene Composites[J]. Journal of Agricultural Science and Technology, 2022, 24(10): 161-168.

魏俞涌, 张庆法, 盛奎川. 生物炭对玉米醇溶蛋白/聚丙烯复合材料力学性能的影响[J]. 中国农业科技导报, 2022, 24(10): 161-168.

Figures/Tables 8

References 39

1	李静雯, 张博明, 孙义亮, 等. 不同铺层方式下连续玻璃纤维/聚丙烯复合材料波纹夹芯板的力学性能[J]. 复合材料学报, 2019, 36(5): 1074-1082.
	LI J W, ZHANG B M, SUN Y L, et al.. Mechanical properties of continuous glass fiber/polypropylene corrugated sandwich boards under different laminates [J]. Acta Mater. Compos. Sin., 2019, 36(5): 1074-1082.
2	迟晓红, 俞利, 郑杰, 等. 蒙脱土/聚丙烯复合材料结晶形态及耐电树枝化特性[J]. 复合材料学报, 2015, 32 (1): 76-84.
	CHI X H, YU L, ZHENG J, et al.. Crystallization morphology and electrical tree resistance characteristics of montmorillonite/polypropylene composites [J]. Acta. Mater. Compos. Sin., 2015,32 (1): 76-84.
3	KAYA G G, YILMAZ E, DEVECI H. Sustainable bean pod/calcined kaolin reinforced epoxy hybrid composites with enhanced mechanical, water sorption and corrosion resistance properties [J]. Constr. Build. Mater., 2018, 162: 272-279.
4	GOORANORIMI O, SUARIS W, DAUER E, et al.. Microstructural investigation of glass fiber reinforced polymer bars [J]. Compos. Part-B Eng., 2017, 110: 388-395.
5	ELGABBAS F, VINCENT P, AHMED E A, et al.. Experimental testing of basalt-fiber-reinforced polymer bars in concrete beams [J]. Compos. Part-B Eng., 2016, 91: 205-218.
6	ENAYATI M S, BEHZAD T, SAJKIEWICZ P Ł, et al.. Theoretical and experimental study of the stiffness of electrospun composites of poly (vinyl alcohol), cellulose nanofibers, and nanohydroxy apatite [J]. Cellulose, 2018, 25(1): 65-75.
7	TREINYTE J, BRIDZIUVIENE D, FATARAITE-URBONIENE E, et al.. Forestry wastes filled polymer composites for agricultural use [J]. J. Clean. Prod., 2018, 205: 388-406.
8	SEPE R, BOLLINO F, BOCCARUSSO L, et al.. Influence of chemical treatments on mechanical properties of hemp fiber reinforced composites [J]. Compos. Part-B Eng., 2018, 133: 210-217.
9	BARCZWSKI M, MATYKIEWICZ D, PIASEKI A, et al.. Polyethylene green composites modified with post agricultural waste filler: thermo-mechanical and damping properties [J]. Compos. Interface., 2018, 25(4): 287-299.
10	JIANG Y, WANG D, LI F, et al.. Cinnamon essential oil pickering emulsion stabilized by zein-pectin composite nanoparticles: characterization, antimicrobial effect and advantages in storage application [J]. Int. J. Boil. Macromol., 2020, 148: 1280-1289.
11	张庆法, 杨科研, 蔡红珍, 等. 稻壳/高密度聚乙烯复合材料与稻壳炭/高密度聚乙烯复合材料性能对比[J]. 复合材料学报, 2018, 35(11): 3044-3050.
	ZHANG Q F, YANG K Y, CAI H Z, et al.. Comparison of properties between rice husk/high density polyethylene and rice husk biochar/high density polyethylene composites [J]. Acta Mater. Compos. Sin., 2018, 35(11): 3044-3050.
12	王海莹, 余晓, 李穗奕, 等. 热塑性塑料/生物炭复合材料研究进展[J]. 工程塑料应用, 2018, 46(12): 139-142.
	WANG H Y, YU X, LI S Y, et al.. Research progress of thermoplastic/biomass charcoal composites [J]. Eng. Plast. Appl., 2018, 46(12):139-142.
13	陈温福, 张伟明, 孟军, 等. 生物炭应用技术研究[J]. 中国工程科学, 2011, 13(2): 83-89.
	CHEN W F, ZHANG W M, MENG J, et al.. Researches on biochar application technology [J]. Eng. Sci., 2011, 13(2): 83-89.
14	ZHAO B, O’CONNOR D, ZHANG J, et al.. Effect of pyrolysis temperature, heating rate, and residence time on rapeseed stem derived biochar [J]. J. Clean. Prod., 2018, 174: 977-987.
15	DAS O, BHATTACHRYYA D, HUI D, et al.. Mechanical and flammability characterisations of biochar/polypropylene biocomposites [J]. Compos. Part-B Eng., 2016, 106: 120-128.
16	张庆法, 徐航, 任夏瑾, 等. 农林废物生物炭/高密度聚乙烯复合材料的制备与性能[J]. 复合材料学报, 2021, 38(2): 1-8.
	ZHANG Q F, XU H, REN X J, et al.. Preparation and properties of agroforestry wastes biochar/high density polyethylene composites [J]. Acta. Mater. Compos. Sin., 2021, 38(2): 1-8.
17	POULOSE A M, ELNOUR A Y, ANIS A, et al.. Date palm biochar-polymer composites: an investigation of electrical, mechanical, thermal and rheological characteristics [J]. Sci. Total Environ., 2018, 619: 311-318.
18	ZHANG Q, ZHANG D, XU H, et al.. Biochar filled high-density polyethylene composites with excellent properties: towards maximizing the utilization of agricultural wastes [J/OL]. Ind. Crop. Prod., 2020, 146: 112185 [2022-06-10]. .
19	BAZJWA D S, ADHIKARI S, SHOJAEIARANI J, et al.. Characterization of bio-carbon and ligno-cellulosic fiber reinforced bio-composites with compatibilizer [J]. Constr. Build. Mater., 2019, 204: 193-202.
20	杨荔, 刘洪波, 张东升, 等. 竹炭/酚醛树脂复合导电材料的制备与性能[J]. 复合材料学报, 2011, 28(2): 70-76.
	YANG L, LIU H B, ZHANG D S, et al.. Preparation and properties of bamboo charcoal/phenolic resin conductive composite [J]. Acta. Mater. Compos. Sin., 2011, 28(2): 70-76.
21	OGUNSONA E O, MISRA M, MOHANTY A K. Accelerated hydrothermal aging of biocarbon reinforced nylon biocomposites [J]. Polym. Degrad. Stabil., 2017, 139: 76-88.
22	GIORCELLI M, KHAN A, PUGNO N M, et al.. Biochar as a cheap and environmental friendly filler able to improve polymer mechanical properties [J]. Biomass. Bioenergy, 2019, 120: 219-223.
23	LIN Y, LIU Y, ZHANG D, et al.. Radiation resistance of polypropylene composites by incorporating reduced graphene oxide and antioxidant: a comparison study [J]. Compos. Sci. Technol., 2017, 146: 83-90.
24	ZHANG C, FU Z, LIU Y C, et al.. Ionic liquid-functionalized biochar sulfonic acid as a biomimetic catalyst for hydrolysis of cellulose and bamboo under microwave irradiation [J]. Green. Chem., 2012, 14(7): 1928-1934.
25	WANG K, WU K, XIAO M, et al.. Structural characterization and properties of konjac glucomannan and zein blend films [J]. Int. J. Boil. Macromol., 2017, 105: 1096-1104.
26	RAO J, BAO L, WANG B, et al.. Plasma surface modification and bonding enhancement for bamboo composites[J]. Compos. Part B-Eng., 2018, 138: 157-167.
27	张庆法, 张东红, 雷寒武, 等. 不同炭化温度的稻壳炭对稻壳炭/高密度聚乙烯复合材料的影响[J]. 高分子材料科学与工程, 2020, 36(7): 67-72.
	ZHANG Q F, ZHANG D H, LEI H W, et al.. Effect of rice husk biochar obtained at different carbonized temperatures on rice husk biochar/high density polyethylene composites [J]. Polym. Mater. Sci. Eng., 2020, 36(7): 67-72.
28	DAS O, KIM N K, KALAMKAROV A L, et al.. Biochar to the rescue: balancing the fire performance and mechanical properties of polypropylene composites [J]. Polym. Degrade. Stabil., 2017, 144: 485-496.
29	张庆法, 任夏瑾, 吴娟娟, 等. 活性炭/高密度聚乙烯复合材料的力学性能[J]. 复合材料学报, 2020, 37(11): 2816-2824.
	ZHANG Q F, REN X J, WU J J, et al.. Mechanical properties of activated carbon/high density polyethylene composites [J]. Acta Mater. Compos. Sin., 2020, 37(11): 2816-2824.
30	GEZAHEGN S, LAI R, HUANG L, et al.. Porous graphitic biocarbon and reclaimed carbon fiber derived environmentally benign lightweight composites [J]. Sci. Total Environ., 2019, 664: 363-373.
31	HO M P, LAU K T. Enhancement of impact resistance of biodegradable polymer using bamboo charcoal particles [J]. Mater. Lett., 2014, 136: 122-125.
32	HILMI A R, FAUZIYAH N A, PRATAPA S. A temperature-dependent storage modulus model for filler-dispersed PEG/silica composites [J/OL]. Compos. Part-B Eng., 2019, 173: 106868 [2022-06-10]. .
33	LI S, WANG H, CHEN C, et al.. Size effect of charcoal particles on the properties of bamboo charcoal/ultra‐high molecular weight polyethylene composites [J/OL]. J. Appl. Polym. Sci., 2017, 134(47): 45530 [2022-06-10]. .
34	YOU Z, LI D. The dynamical viscoelasticity and tensile property of new highly filled charcoal powder/ultra-high molecular weight polyethylene composites [J]. Mater. Lett., 2013, 112: 197-199.
35	DAVIS A M, HANZLY L E, DEBUTTS B L, et al. Characterization of dimensional stability in flax fiber reinforced polypropylene composites [J]. Polym. Compos., 2019, 40(1): 132-140.
36	OBAID N, KORTSCHOT M T, SAIN M. Predicting the stress relaxation behavior of glass-fiber reinforced polypropylene composites [J]. Compos. Sci. Technol., 2018, 161: 85-91.
37	IKRAM S, DAS O, BHATTACHARYYA D. A parametric study of mechanical and flammability properties of biochar reinforced polypropylene composites [J]. Compos. Part A-Appl. Sci., 2016, 91: 177-188.
38	LI S, LI X, CHEN C, et al.. Development of electrically conductive nano bamboo charcoal/ultra-high molecular weight polyethylene composites with a segregated network [J]. Compos. Sci. Technol., 2016, 132: 31-37.
39	BARTOLI M, ROSSO C, GIORCELLI M, et al.. Effect of incorporation of microstructured carbonized cellulose on surface and mechanical properties of epoxy composites [J/OL]. J. Appl. Polym. Sci., 2020, 137(27): 48896 [2022-06-10]. .

样品 Sample	BC0	BC5	BC10	BC15	BC20
聚丙烯 PP	60	60	60	60	60
玉米醇溶蛋白 Zein	20	15	10	5	0
碳酸钙 CaCO₃	20	20	20	20	20
生物炭 Biochar	0	5	10	15	20

样品 Sample	BC0	BC5	BC10	BC15	BC20
聚丙烯 PP	60	60	60	60	60
玉米醇溶蛋白 Zein	20	15	10	5	0
碳酸钙 CaCO₃	20	20	20	20	20
生物炭 Biochar	0	5	10	15	20

力学性能 Mechanical property	PP	BC0	BC5	BC10	BC15	BC20
弯曲强度 Flexural strength/MPa	36.01±0.84	40.69±1.18	41.81±0.43	41.45±0.46	44.68±0.32	45.03±0.18
弯曲模量 Flexural modulus/GPa	1.33±0.07	2.70±0.11	2.28±0.15	2.36±0.10	2.66±0.06	2.54±0.05
拉伸强度 Tensile strength/MPa	23.19±1.79	20.71±0.55	22.41±0.17	24.00±0.25	24.27±0.05	23.64±0.23
拉伸模量 Tensile modulus/GPa	0.23±0.01	0.33±0.02	0.27±0.03	0.37±0.01	0.29±0.02	0.36±0.10
断裂伸长率 Elongation/%	8.71±0.17	5.97±0.18	6.71±0.22	7.00±0.41	7.07±0.13	7.26±0.22
冲击强度 Impact strength/（kJ·m^-2）	8.57±2.26	4.70±0.37	6.59±0.56	6.11±0.85	6.10±0.53	4.59±0.87

力学性能 Mechanical property	PP	BC0	BC5	BC10	BC15	BC20
弯曲强度 Flexural strength/MPa	36.01±0.84	40.69±1.18	41.81±0.43	41.45±0.46	44.68±0.32	45.03±0.18
弯曲模量 Flexural modulus/GPa	1.33±0.07	2.70±0.11	2.28±0.15	2.36±0.10	2.66±0.06	2.54±0.05
拉伸强度 Tensile strength/MPa	23.19±1.79	20.71±0.55	22.41±0.17	24.00±0.25	24.27±0.05	23.64±0.23
拉伸模量 Tensile modulus/GPa	0.23±0.01	0.33±0.02	0.27±0.03	0.37±0.01	0.29±0.02	0.36±0.10
断裂伸长率 Elongation/%	8.71±0.17	5.97±0.18	6.71±0.22	7.00±0.41	7.07±0.13	7.26±0.22
冲击强度 Impact strength/（kJ·m^-2）	8.57±2.26	4.70±0.37	6.59±0.56	6.11±0.85	6.10±0.53	4.59±0.87
