Comparative Study on Pancreatic Lipase Inhibitory Activity and Antioxidant Activity of Gingerol Before and After Purification

doi:10.13304/j.nykjdb.2021.0855

Abstract

Abstract:

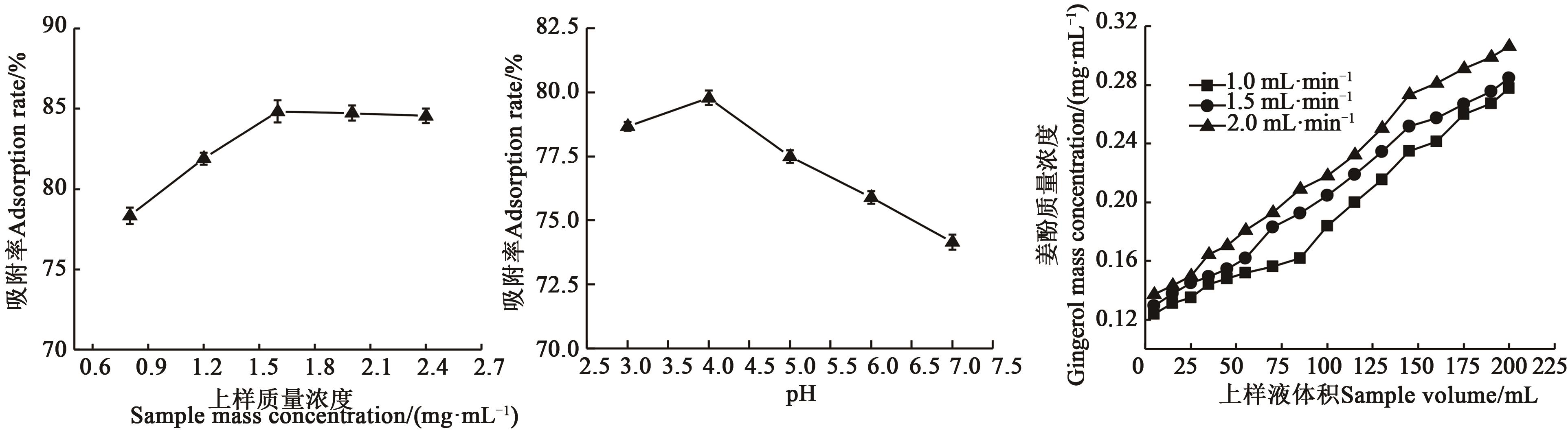

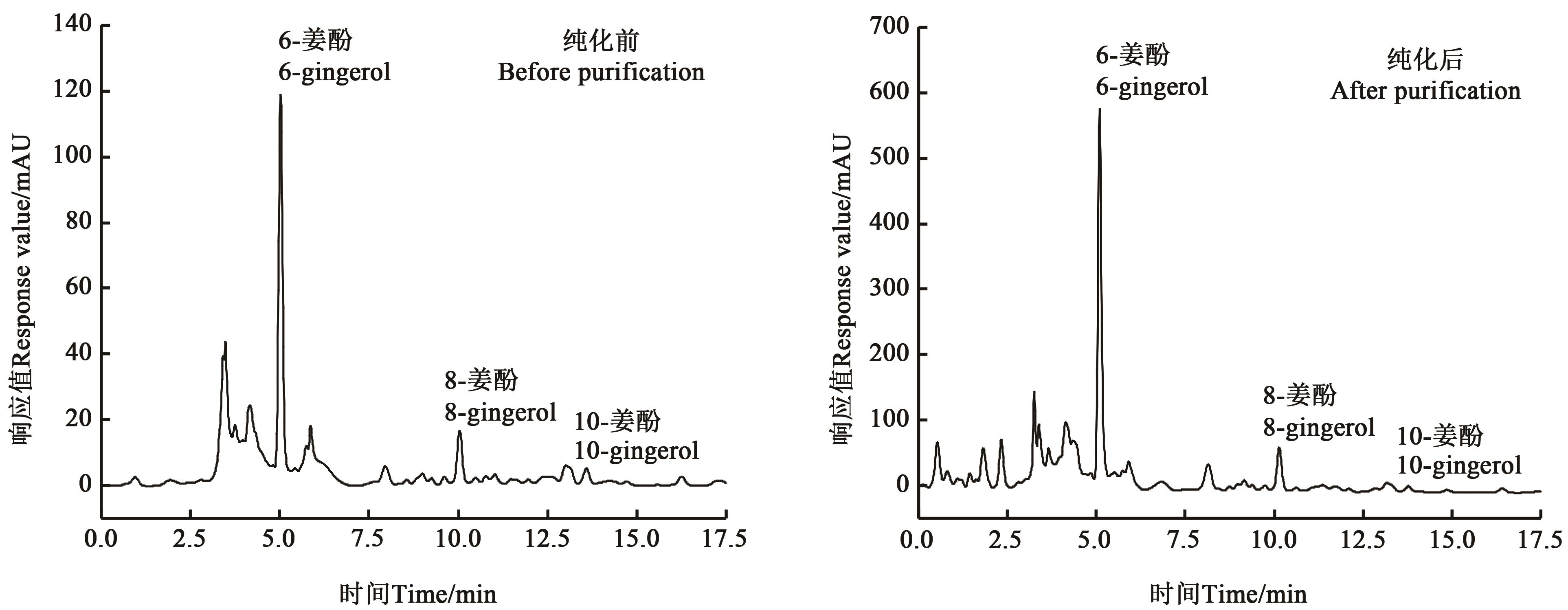

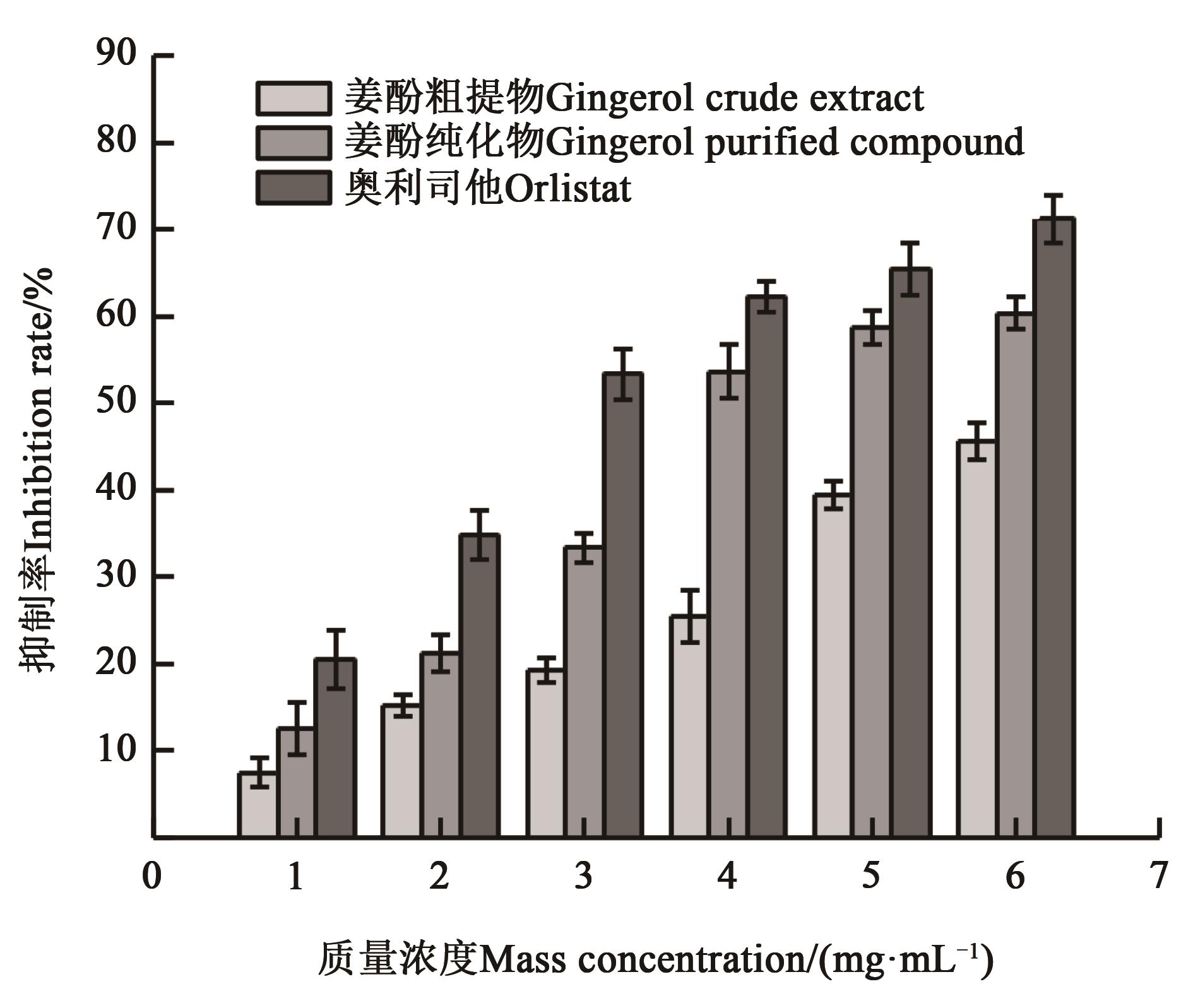

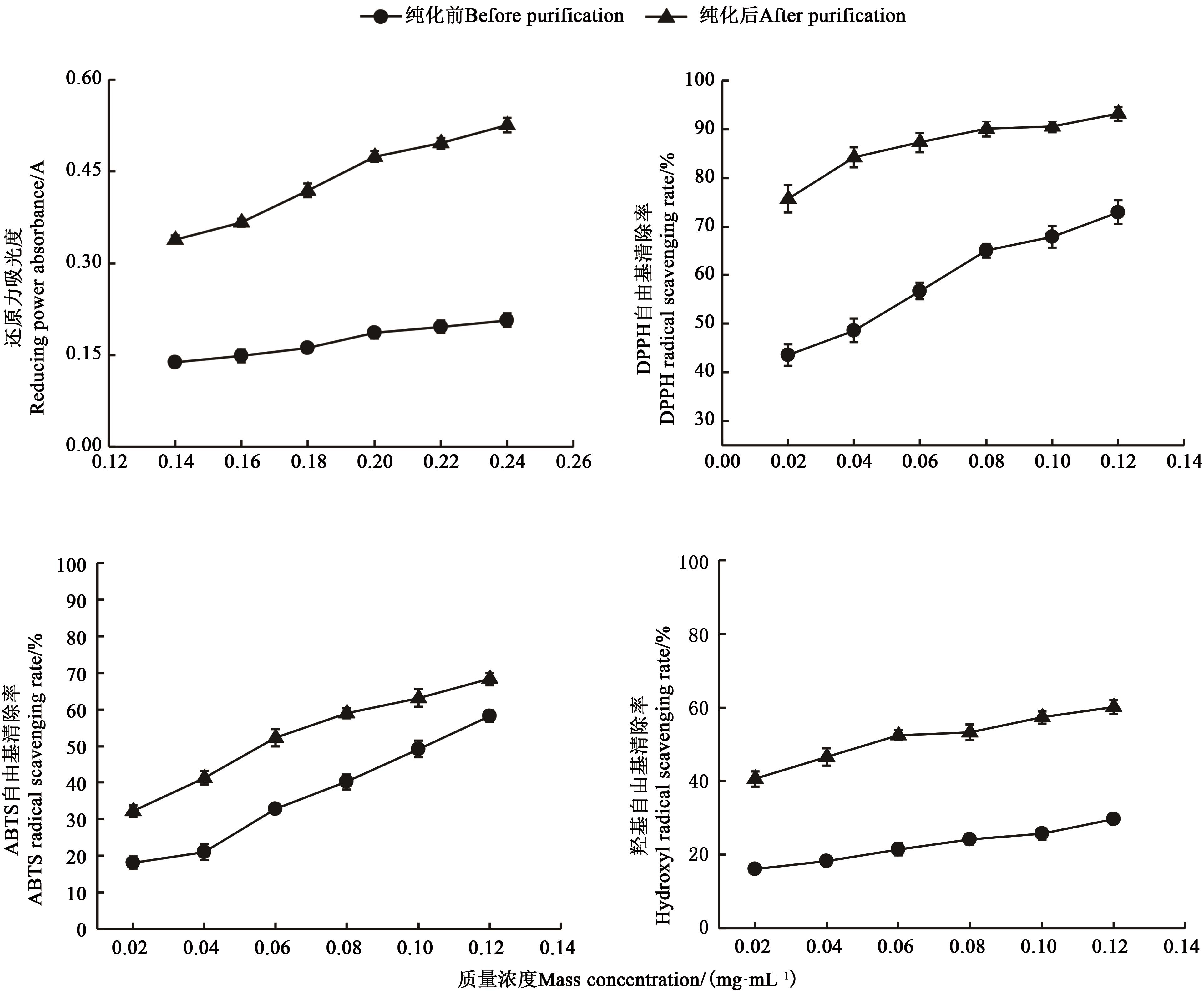

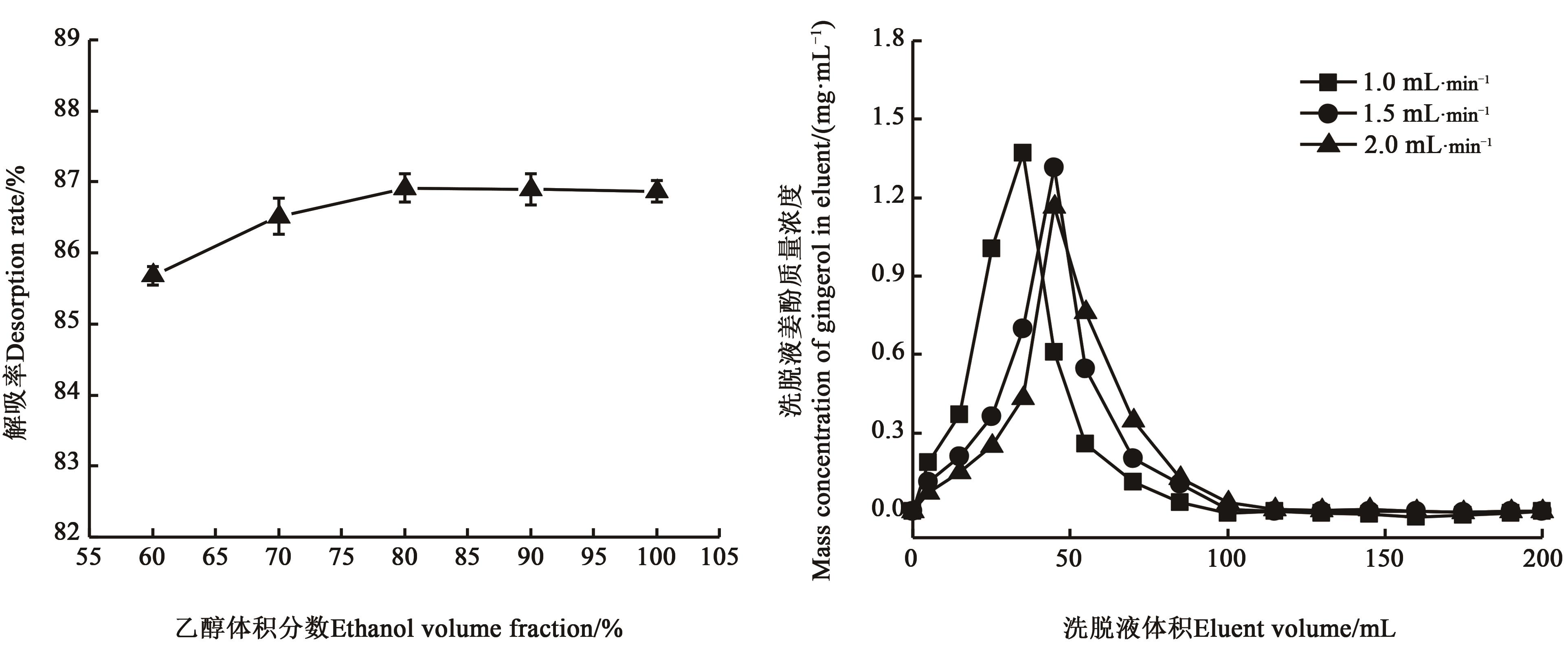

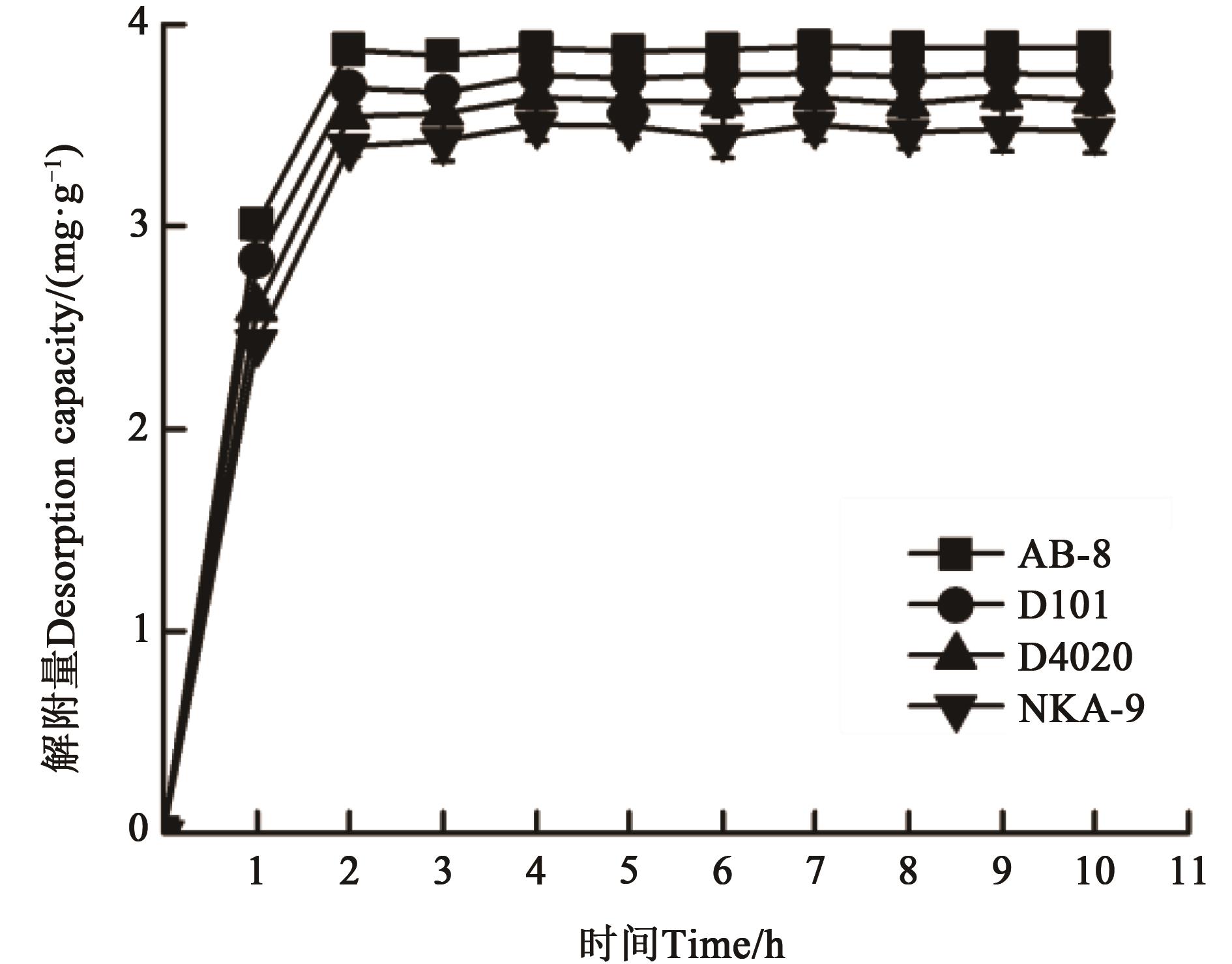

In order to explore the purification method of gingerol by macroporous resin， four different polar resins （NKA-9， AB-8， D4020 and D101） were selected to study the static adsorption-desorption kinetics. The results showed that AB-8 was the best resin which was used as adsorbent. The optimum purification process of gingerol was discussed， and the scavenging ability of gingerol to 1,1-diphenyl-2-trinitrophenylhydrazine （DPPH） radical， 2,2-diazo-bis（3-ethyl-benzothiazole-6-sulfonic acid） diammonium （ABTS） radical and its inhibitory activity to pancreatic lipase were compared before and after purification. The contents of 6-gingerol， 8-gingerol and 10-gingerol in the crude extract before purification and after purification were determined by HPLC. The results showed that the optimum conditions for dynamic purification of gingerol by AB-8 resin were as follows： sample mass concentration 1.6 mg·mL^-1， pH=4， sample flow rate 1.5 mL·min^-1， elution rate 1.5 mL·min^-1 at 80% ethanol solution. The purity of gingerol after purification was increased by 3.3 times. The results of high performance liquid chromatography showed that the content of three gingerol monomers was more than 3 times higher than that before purification. The inhibition rate and free radical scavenging ability of purified gingerol on porcine pancreatic lipase were significantly higher than those before purification， indicating that AB-8 resin had a good effect on the separation and purification of gingerol and could achieve the enrichment of components， which was of great significance to improve the added value of gingerol utilization.

Key words: macroporous resin, gingerol, adsorption, desorption, antioxidation, inhibition of pancreatic lipase

摘要：

为了探讨姜酚的大孔树脂纯化方法，选择4种不同极性树脂（NKA-9、AB-8、D4020 和D101）作静态吸附-解吸动力学研究。结果表明，AB-8为最佳树脂，以AB-8树脂为吸附剂，对其最佳纯化工艺进行探讨，并比较纯化前后姜酚对1，1-二苯基-2-三硝基苯肼（1，1-diphenyl-2-trinitrophenylhydrazine， DPPH）自由基、2，2-联氮-二（3-乙基-苯并噻唑-6-磺酸）二铵盐（2，2-diazo-bis （3-ethyl-benzothiazole-6-sulfonic acid） diammonium，ABTS）自由基等的清除能力和对胰脂肪酶抑制活性，采用高效液相色谱法测定纯化前粗提物和纯化后纯化物中6-姜酚、8-姜酚、10-姜酚含量。结果表明，AB-8树脂动态纯化姜酚最佳条件为：上样质量浓度1.6 mg·mL^-1，pH=4，上样流速1.5 mL·min^-1，以80%乙醇溶液流速1.5 mL·min^-1洗脱，经纯化后姜酚纯度为纯化前的3.3倍，高效液相色谱分析结果表明3种姜酚类单体物质含量相比纯化前提高了3倍以上，纯化后的姜酚对猪胰脂肪酶的抑制率和自由基清除能力明显高于纯化前，说明AB-8树脂对姜酚有较好的分离纯化作用，能够实现成分的富集，对提高姜酚的利用附加值具有重要意义。

关键词: 大孔树脂, 姜酚, 吸附, 解吸, 抗氧化, 抑制胰脂肪酶

CLC Number:

Q946

Jing XU, Xiufen WANG, Xiaoyan LIU. Comparative Study on Pancreatic Lipase Inhibitory Activity and Antioxidant Activity of Gingerol Before and After Purification[J]. Journal of Agricultural Science and Technology, 2023, 25(5): 96-105.

徐菁, 王秀芬, 刘晓燕. 姜酚纯化前后对胰脂肪酶抑制活性、抗氧化活性比较研究[J]. 中国农业科技导报, 2023, 25(5): 96-105.

Figures/Tables 13

References 26

1	黄慧福,张玉丽.罗平小黄姜姜脯的工艺研究[J].食品研究与开发,2016,37(8):120-123.
	HUANG H F, ZHANG Y L. Process of candied ginger in Luoping [J].Food Res. Dev., 2016, 37(8):120-123.
2	KIM E C, MIN J K, KIM T Y, et al.. 6-gingerol a pungent ingredient of ginger, inhibits angiogen esis in vitro and in vivo [J]. Bio-Chem. Biophys. Res. Commun., 2005, 335(2):300-308.
3	王少鹏,杨光.姜酚生物活性研究进展[J].中国公共卫生,2013,29(10):1549-1552.
4	郭靖婷.筛选并研究姜酚中降胆固醇的成分及其调控机制[D].广州:暨南大学,2019.
	GUO J T. Screening and investigation of hypocholesterolemic componentsfrom the gingerols [D]. Guangzhou: Jinan University, 2019.
5	李宇彬,胡敏贤.混合溶剂-超声波法提取姜酚及其抗氧化性研究[J].云南化工,2018,45(4):104-105.
	LI Y B, HU M X. Study on extraction process of gingerol by mixed solvent-ultrasound and their antioxidant activity [J]. Yunnan Chem. Ind., 2018,45(4):104-105.
6	马龙利,李岗,叶菲菲,等.6-姜酚的分离纯化及抗氧化能力研究[J].食品科技,2016,41(8):206-209.
	MA L L, LI G, YE F F, et al.. Separation purification and antioxidant capacities of 6-gingerol [J]. Food Sci. Technol., 2016, 41(8):206-209.
7	于海,马龙利,陈可可,等.柱层析纯化6-姜酚的工艺研究[J].湖北农业科学,2017,56(19):3717-3719, 3735.
	YU H, MA L L, CHEN K K, et al.. Process study on purification of 6-gingerol by column chromatography [J]. Agric. Hubei Sci., 2017, 56(19):3717-3719, 3735.
8	刘军伟,李啸晨,侯婴惠,等.大孔树脂纯化生姜多酚的研究[J].食品研究与开发,2017,38(17):35-39.
	LIU J W, LI X C, HOU Y H, et al.. Purification of phenols from ginger by macroporous resin [J]. Food Res. Dev., 2017, 38(17):35-39.
9	徐菁,刘晓燕,郭银萍,等.镇宁小黄姜姜酚提取工艺优化及其抗氧化活性研究[J].中国调味品,2021,46(10):94-99, 104.
	XU J, LIU X Y, GUO Y P, et al.. Optimization of extraction process and antioxidant activity of gingerol from Zhenning Globba racemosa Smith [J]. Chin. Condiment., 2021, 46(10):94-99, 104.
10	巫永华,张建萍,赵节昌,等.大孔树脂纯化黄精多酚及其抗氧化性与组成分析[J].农业工程学报,2020,36(1):318-326.
	WU Y H, ZHANG J P, ZHAO J C, et al.. Antioxidantion and composition analysis of purified Polygonatum sibiricum polyphenols using macroporous resin [J]. Trans. Chin. Soc. Agric. Eng., 2020, 36(1):318-326.
11	谭敏华,廖志强,冯卫华,等.紫色百香果果皮多酚存在形式及抗氧化活性[J].食品研究与开发,2021,42(16):53-58, 76.
	TAN M H, LIAO Z Q, FENG W H, et al.. Existing forms and antioxidant activities of purple passion fruit peel polyphenols [J]. Food Res. Dev. ,2021, 42(16):53-58, 76.
12	任旭,谢蔓莉,叶发银,等.烫漂方式对苹果脆片褐变和多酚及其抗氧化活性的影响[J].食品与发酵工业,2022,48(1):161-168.
	REN X, XIE M L, YE F Y, et al.. Effects of blanching treatments on browning, polyphenolcomposition and antioxidant activity of apple slices [J]. Food Ferment. Ind., 2022,48(1):161-168.
13	刘文颖,冯晓文,程青丽,等.小麦低聚肽的结构特征及其体外抗氧化活性[J].现代食品科技,2021,37(12):72-79.
	LIU W Y, FENG X W, CHENG Q L, et al.. Structural characteristics and in vitro antioxidative activity of wheat oligopeptides [J]. Mod. Food Sci. Technol., 2021, 37(12):72-79.
14	裴文清,吕泸楠,王靖宇,等.木瓜皮多酚和黄酮提取工艺优化及酪氨酸酶与胰脂肪酶抑制活性研究[J].食品工业科技,2022,43(1):188-195.
	PEI W Q, LYU L N, WANG J Y, et al.. Optimization of extraction of polyphenols and flavonoids from papaya peel and its anti-tyrosinase and anti-pancreatic lipase [J]. Sci. Technol. Food Ind., 2022, 43(1):188-195.
15	段宙位,陈婷,何艾,等.大孔树脂纯化沉香叶黄酮工艺优化及纯化前后抗氧化性比较[J].食品工业科技,2020,41(17):161-166.
	DUAN Z W, CHEN T, HE A, et al.. Optimization of purification of flavonoids from aloes leaves with macroporous resin and comparison of antioxidant capacity of crude and purified flavonoids [J]. Sci. Technol. Food Ind., 2020, 41(17):161-166.
16	栾朝霞.肉苁蓉总多酚纯化工艺及其抗运动性疲劳作用研究[J].食品工业科技,2020,41(15):59-64.
	LUAN C X. Purification and anti-motor fatigue effect of total polyphenols from cistanche extraction [J]. Sci. Technol. Food Ind., 2020, 41(15):59-64.
17	孙敬敬,杨瑞金,杨进洁,等.核桃种皮多酚的大孔树脂法分离与液质联用法鉴定[J]. 食品与发酵工业,2022,48(11):136-142.
	SUN J J, YANG R J, YANG J J, et al.. Walnut pellicle polyphenols: separation with macroporous resin and identification with UPLC-TOF-MS/MS [J]. Food Ferment. Ind., 2022, 48(11):136-142.
18	林宝妹,邱珊莲,张帅,等.大孔树脂纯化嘉宝果叶片多酚及其生物活性和组成分析[J]. 热带亚热带植物学报,2021,29(5):563-572.
	LIN B M, QUE S L, ZHANG S, et al.. Biological activities and composition analysis of polyphenols in jaboticaba leaves purified with macroporous resin [J]. J. Tropical Subtropical Bot., 2021, 29(5):563-572.
19	武芸,王春林,王丽朋,等.黑果枸杞多酚吸附分离特性及抗氧化性研究[J].食品与发酵工业,2021,47(2):70-77.
	WU Y, WANG C L, WANG L P, et al.. Lycium ruthenicum Murr. polyphenols adsorption separation properties and oxidation resistance [J]. Food Ferment. Ind., 2021, 47(2):70-77.
20	巫永华,刘恩岐,张建萍,等.山楂叶多酚的纯化及其抗氧化特性与组分分析[J].食品与发酵工业,2020,46(2):165-172.
	WU Y H, LIU E Q, ZHANG J P, et al.. Purification, antioxidant capacity and component analysis of hawthorn leaf polyphenols [J]. Food Ferment. Ind., 2020, 46(2):165-172.
21	刘伟,周春丽,赵婧,等.大孔吸附树脂纯化生姜提取物中6-姜酚工艺优化[J].农业机械学报,2014,45(6):237-241, 328.
	LIU W, ZHOU C L, ZHAO J, et al.. Purification of 6-gingerol from oleoresin with macroporous resin [J]. Trans. Chin. Soc. Agric. Mach., 2014, 45(6):237-241, 328.
22	张沛,吴楠,宋志军,等.响应面法优化大孔树脂纯化黄芪毛蕊异黄酮工艺[J].食品工业科技,2021,42(10):209-214.
	ZHANG P, WU N, SONG Z J, et al.. Purification of calycosin from Astragalusme mbranceus with macroporous resins by response surface analysis [J]. Sci. Technol. Food Ind., 2021, 42(10):209-214.
23	于艳静,锁然,于艳敏,等.大孔吸附树脂纯化生姜中6-姜酚的研究[J].中国食品学报,2013,13(8):155-160.
	YU Y J, SUO R, YU Y M, et al.. Purification of 6-gingerol from zingibers with macroporus resin [J]. J. Chin. Ins. Food Sci. Technol., 2013, 13(8):155-160.
24	黄雪薇,雷嗣超,涂芬,等.板栗壳黄酮结构分析及其对胰脂肪酶活力的抑制作用[J].食品科学,2021,42(21):111-118.
	HUANG X W, LEI S C, TU F, et al.. Structural analysis and anti-pancreatic lipase activity of flavonoids from chestnut shells [J]. Food Sci., 2021, 42(21):111-118.
25	陈永丽,黄俊僮,王玲,等.桑叶多糖的化学组成及其对胰脂肪酶的抑制作用研究[J].食品科技,2021,46(3):162-166.
	CHEN Y L, HUANG J T, WANG L, et al.. Chemical composition of mulberry leaf polysaccharide and its inhibitory effect on pancreatic lipase [J]. Food Sci. Technol., 2021, 46(3):162-166.
26	杨文艺,高春燕.地参结合酚提取物对α-葡萄糖苷酶和胰脂肪酶的抑制作用[J].食品工业科技,2018,39(23):111-116.
	YANG W Y, GAO C Y. Inhibitory effects of bound phenolic extracts from Lycopus lucidus Turcz.on α-glucosidase and pancreatic lipase [J]. Sci. Technol. Food Ind., 2018, 39(23):111-116.

时间Time/min	流动相Mobile phase
时间Time/min	A（0.1%磷酸溶液） A（0.1% phosphoric acid）/%	B（乙腈） B（Acetonitrile）/%
0.00	14	86
7.00	12	88
17.50	10	90

时间Time/min	流动相Mobile phase
时间Time/min	A（0.1%磷酸溶液） A（0.1% phosphoric acid）/%	B（乙腈） B（Acetonitrile）/%
0.00	14	86
7.00	12	88
17.50	10	90

组号 Group number	样品 Sample	胰脂肪酶 Pancreatic lipase	对硝基苯磷酸二钠六水合物 PNPP	Tris-盐酸缓冲液 Tris-HCl
A₁	30	100	100	70
A₀	30	0	100	170
B₁	0	100	100	100
B₀	0	0	100	200

组号 Group number	样品 Sample	胰脂肪酶 Pancreatic lipase	对硝基苯磷酸二钠六水合物 PNPP	Tris-盐酸缓冲液 Tris-HCl
A₁	30	100	100	70
A₀	30	0	100	170
B₁	0	100	100	100
B₀	0	0	100	200

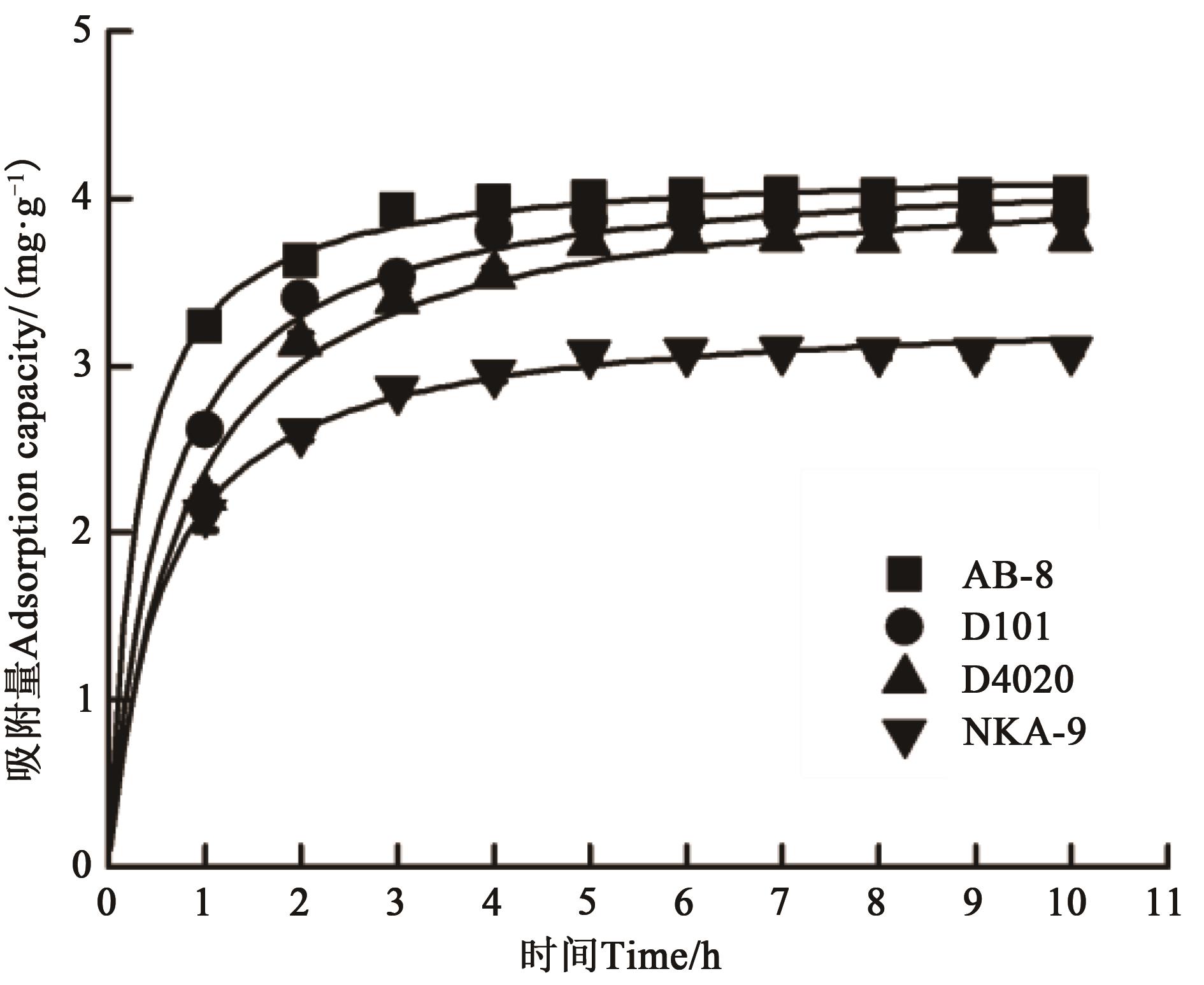

树脂型号 Resin type	方程类型 Equation type	拟合方程 Fitting equation	R²	动力学参数 Kinetic parameter
AB-8	一级动力学 First-order dynamic	In（Q_e-Q_t）=0.640-0.852t	0.876 9	Q_e=4.13 mg·g^-1， K₂=1.17
	二级动力学 Second-order dynamic	t/Q_t=0.050+0.242t	0.999 7
	颗粒内扩散 diffusion particle	Q_t=0.302t^1/2 +3.209	0.684 7
D101	一级动力学 First-order dynamic	In（Q_e-Q_t）=-0.572-0.807t	0.866 2
	二级动力学 Second-order dynamic	t/Q_t=0.101+0.244t	0.999 0	Q_e=4.09 mg·g^-1， K₂=0.59
	颗粒内扩散 diffusion particle	Q_t =0.487t^1/2 +2.572	0.714 3
D4020	一级动力学 First-order dynamic	In（Q_e-Q_t）=1.284-1.019t	0.862 6	Q_e=4.03 mg·g^-1， K₂=0.42
	二级动力学 Second-order dynamic	t/Q_t=0.248+0.146t	0.998 2
	颗粒内扩散 diffusion particle	Q_t=0.592t^1/2 +2.147	0.729 8
NKA-9	一级动力学 First-order dynamic	In（Q_e-Q_t）=0.768-0.952t	0.868 2	Q_e=3.25 mg·g^-1， K₂=0.71
	二级动力学 Second-order dynamic	t/Q_t=0.133+0.307t	0.999 3
	颗粒内扩散 diffusion particle	Q_t=0.388t^1/2 +2.325	0.759 0
