不同填充率与曝气工艺对滚筒堆肥效果的影响

doi:10.13304/j.nykjdb.2024.0187

中国农业科技导报 ›› 2025, Vol. 27 ›› Issue (9): 172-180.DOI: 10.13304/j.nykjdb.2024.0187

不同填充率与曝气工艺对滚筒堆肥效果的影响

吴疆¹^,²(), 程红胜²^,³, 丁京涛²^,³, 沈玉君¹^,², 周海宾²^,³, 郭文袖¹^,², 张迎²^,³

^1.黑龙江八一农垦大学工程学院，黑龙江大庆 163319
^2.农业农村部规划设计研究院农村能源与环保研究所，北京 100125
^3.农业农村部规划设计研究院，资源循环利用技术与模式重点实验室，北京 100125

收稿日期:2024-03-12 接受日期:2024-04-07 出版日期:2025-09-15 发布日期:2025-09-24
通讯作者: 沈玉君
作者简介:吴疆 E-mail：1667469373@qq.com；
基金资助:
河北省重点研发计划项目(21327214D);院自主研发项目(SP202405)

Effects of Different Filling Rate and Aeration Technology on Composting Effect of Roller

Jiang WU¹^,²(), Hongsheng CHENG²^,³, Jingtao DING²^,³, Yujun SHEN¹^,², Haibin ZHOU²^,³, Wenxiu GUO¹^,², Ying ZHANG²^,³

^1.College of Engineering，Heilongjiang Bayi Agricultural University，Heilongjiang Daqing 163319，China
^2.Institute of Energy and Environmental Protection，Chinese Academy of Agricultural Engineering Planning & Design，Ministry of Agriculture and Rural Affairs，Beijing 100125，China
^3.Key Laboratory of Technology and Model for Cyclic Utilization，Chinese Academy of Agricultural Engineering Planning & Design，Ministry of Agriculture and Rural Affairs，Beijing 100125，China

Received:2024-03-12 Accepted:2024-04-07 Online:2025-09-15 Published:2025-09-24
Contact: Yujun SHEN

摘要/Abstract

摘要：

为全面评价不同填充率、曝气工艺对滚筒堆肥效果的影响，采用猪粪和秸秆为原料，以堆肥无害化处理效果、肥料品质及经济环保性为评价指标，研究不同填充率（0.60和0.75）、曝气工艺（分段曝气工艺和恒定曝气工艺）对堆肥效果的影响。结果表明，填充率对滚筒堆肥效果有显著影响，高填充率（0.75）有助于提高产肥率，提升单位体积反应器物料处理量，但会延长无害化处理时间，降低肥料品质，增加硫化氢气体（H₂S）排放，物料前期难以混匀是影响高填充率堆肥效果的主要原因；低填充率（0.60）能够更好地促进物料快速无害化，提高肥料品质，但会提高氨气（NH₃）排放，但处理效率和产肥率相对较低，影响滚筒经济性。不同曝气工艺对堆肥效果影响显著，采用分段曝气工艺更有利于提升物料无害化处理效果，缩短无害化处理时间，提高肥料品质，降低运行能耗和氨气（NH₃）排放，但会增加硫化氢气体（H₂S）排放。以上研究结果为滚筒堆肥技术工程化应用提供技术支撑。

关键词: 填充率, 曝气工艺, 滚筒堆肥, 好氧发酵

Abstract:

In order to comprehensively evaluate the effects of different filling rates and aeration processes on the effect of roller compost， the pig manure and straw were used as raw materials， and took the harmless compost treatment effect， fertilizer quality and economic and environmental protection as evaluation indexes， the effects of different filling rates （0.60 and 0.75） and aeration processes （staged aeration process and constant aeration process） on the compost effect were studied. The results showed that the filling rate had a significant impact on the effect of roller composting. The high filling rate （0.75） was helpful to improve the fertilizer yield and increase the material handling capacity per unit volume reactor， but it would prolong the harmless treatment time， reduced the quality of fertilizer， and increased the emission of hydrogen sulfide gas （H₂S）. The main reason affecting the effect of high filling rate composting was that the material was difficult to mix in the early stage. Low filling rate （0.60） could better promote the rapid harmless material and improve the quality of fertilizer， but it would increase ammonia （NH₃） emissions， but the treatment efficiency and fertilizer production rate were relatively low， affecting the economy of the drum. Different aeration processes had a significant impact on the composting effect. The use of segmentation aeration process was more conducive to improve the harmless treatment effect of materials， shorten the harmless treatment time， improve fertilizer quality， and reduce operation energy consumption and ammonia （NH₃） emission， but increasing hydrogen sulfide （H₂S） emission. Above results provided technical support for the engineering application of roller composting technology.

Key words: filling rate, aeration process, roller compost, aerobic fermentation

中图分类号:

S141.4

吴疆, 程红胜, 丁京涛, 沈玉君, 周海宾, 郭文袖, 张迎. 不同填充率与曝气工艺对滚筒堆肥效果的影响[J]. 中国农业科技导报, 2025, 27(9): 172-180.

Jiang WU, Hongsheng CHENG, Jingtao DING, Yujun SHEN, Haibin ZHOU, Wenxiu GUO, Ying ZHANG. Effects of Different Filling Rate and Aeration Technology on Composting Effect of Roller[J]. Journal of Agricultural Science and Technology, 2025, 27(9): 172-180.

图/表 12

表1 试验材料基础理化性质

Table 1 Basic physical and chemical properties of test materials

材料

Material

碳含量

Carbon content/%

氮含量

Nitrogen content/%

含水率

Moisture content/%

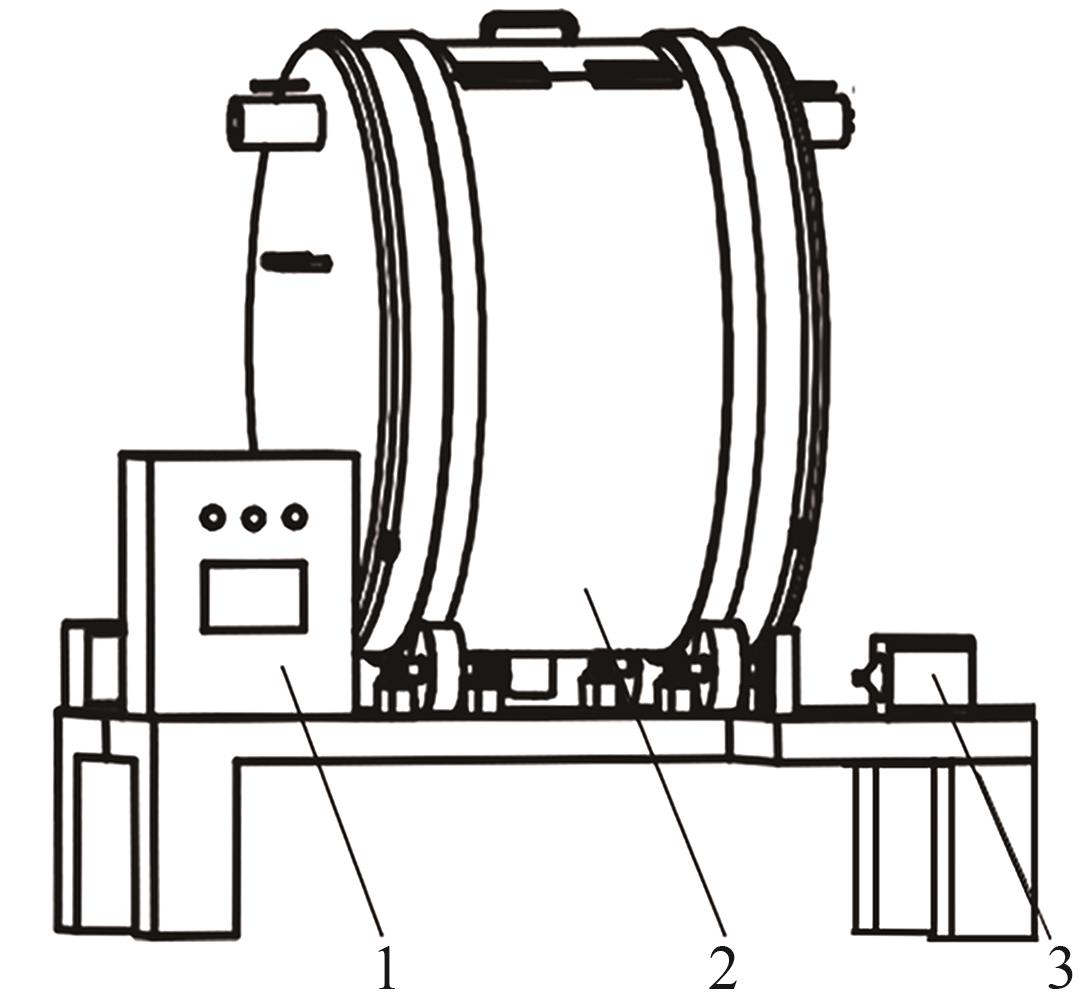

图1 试验台结构注： 1—控制系统；2—滚筒；3—曝气风机。

Fig.1 Schematic of test bedNote： 1—Control system； 2—Roller； 3—Aeration fan.

表2 试验方案

Table 2 Experimental scheme

处理

Treatment

通风方式

Ventilation mode

填充率

Filling rate

通风速率

Ventilation rate/（L·min^‒1·kg^‒1 TS）

持续通12 min、停18 min

Keep on 12 min， stop 18 min

0.60

8.5

升温期通5 min、停25 min；高温期通12 min停18 min；降温期通8 min停22 min

Heating period on 5， stop 25；high temperature period on 12 min， stop 18 min；cooling period on 8 min， stop 22 min

0.60

8.5

持续通12 min停18 min

Keep on 12 min， stop 18 min

0.75

8.5

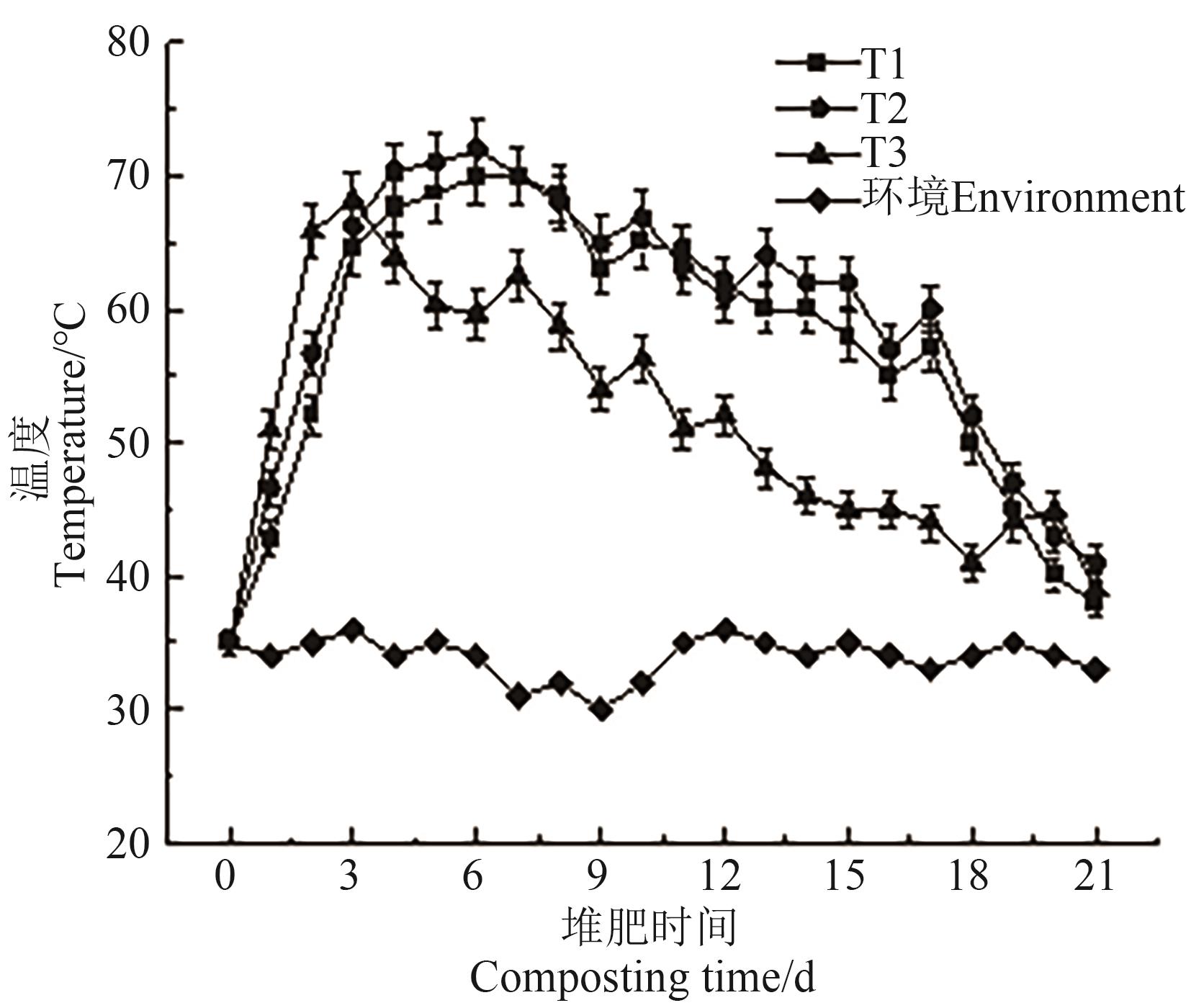

图2 堆肥过程中温度

Fig. 2 Temperature during composting

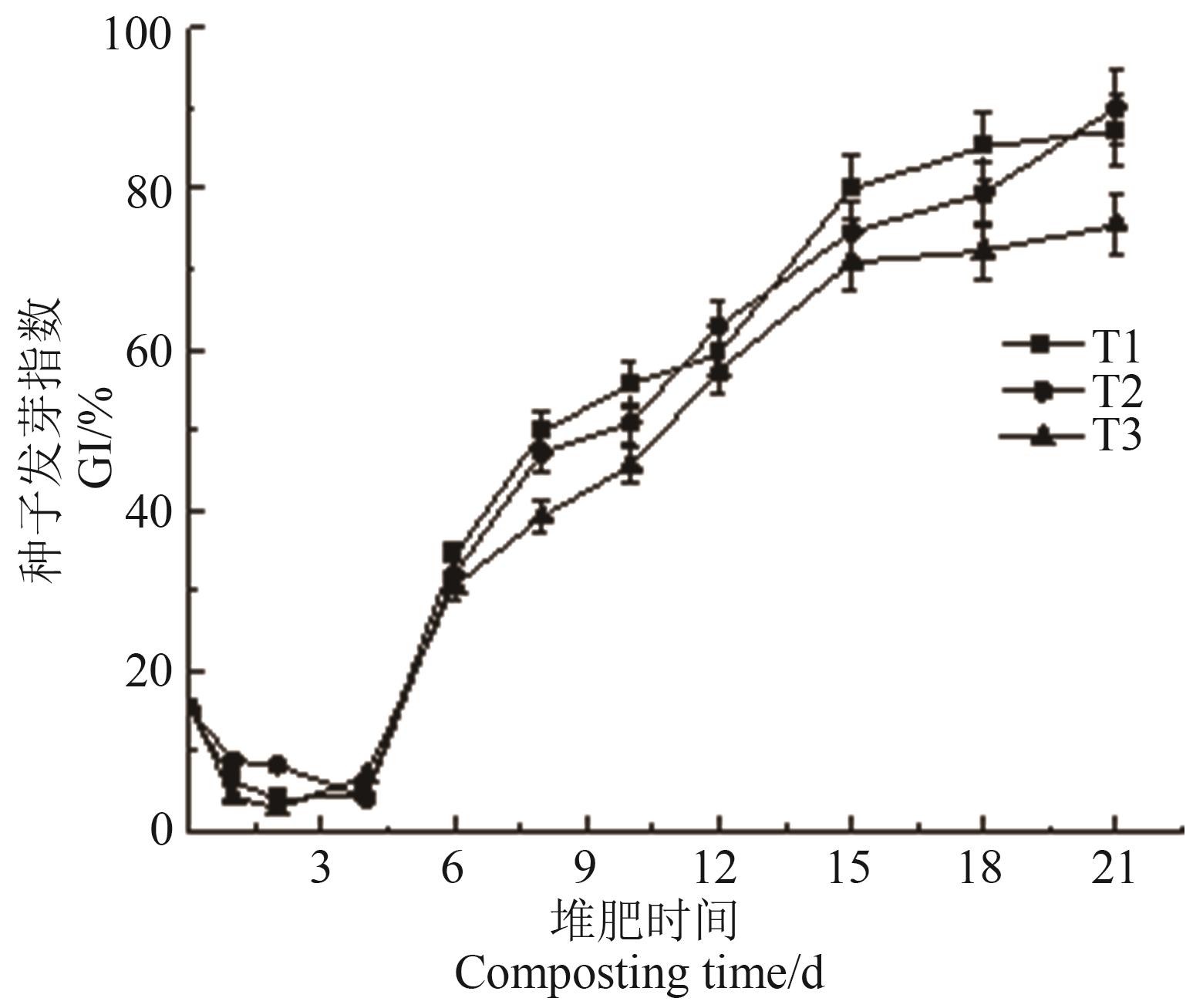

图3 堆肥过程中种子发芽指数

Fig. 3 GI value during composting

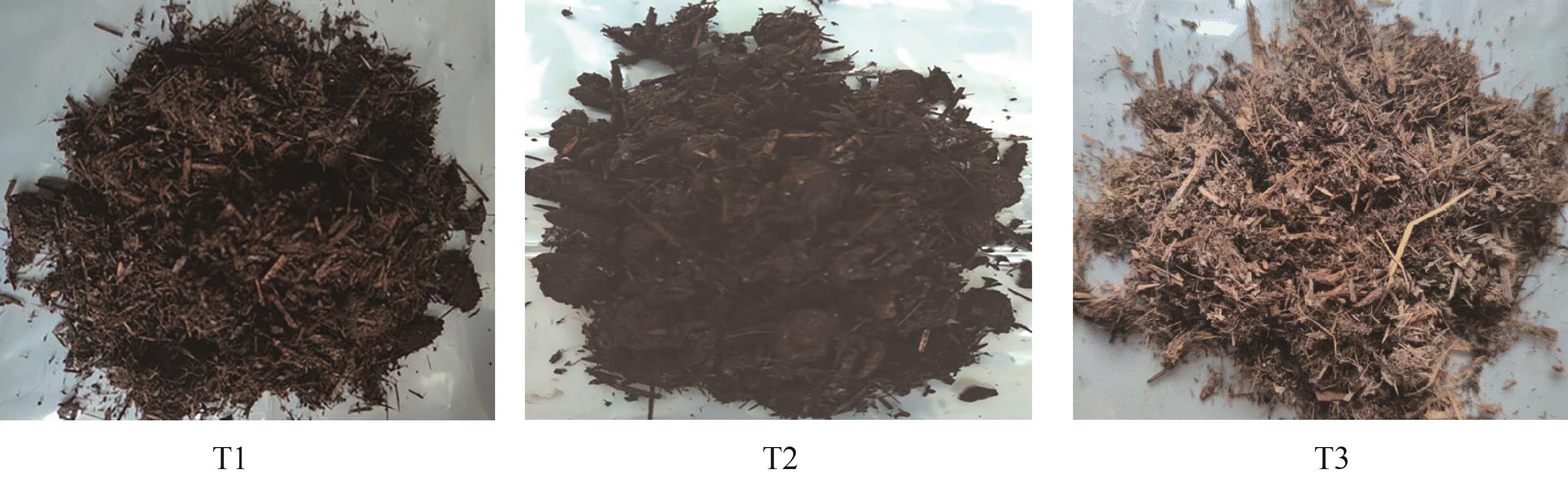

图4 堆肥结束物料腐熟情况

Fig. 4 After composting， the material is decomposed

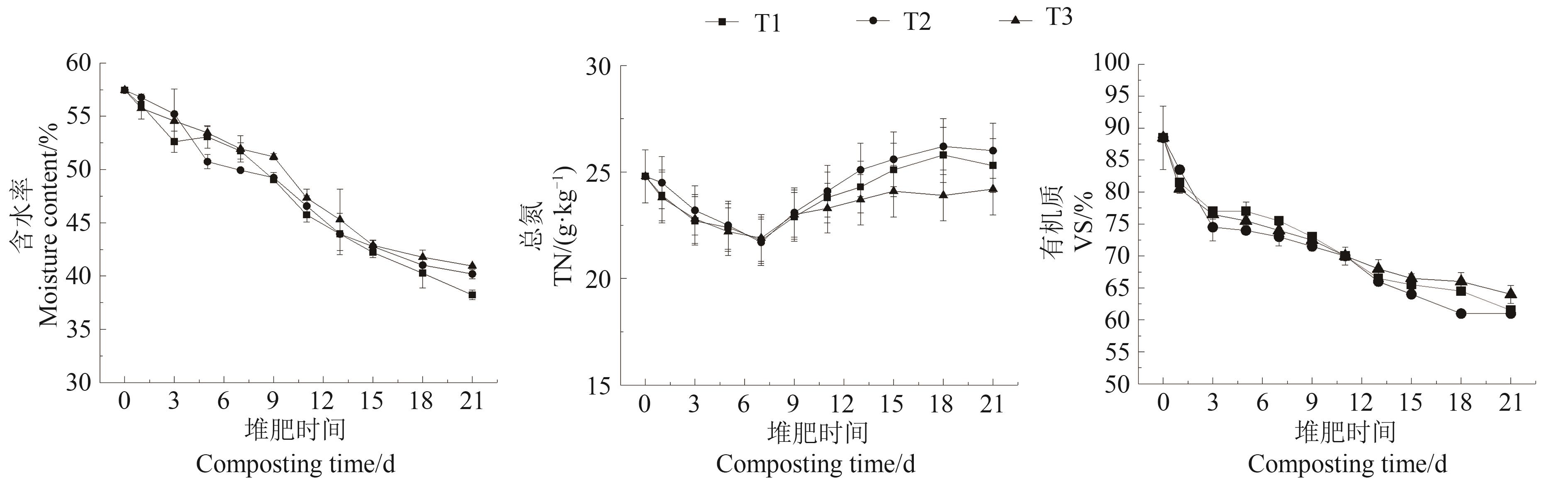

图5 堆肥肥料品质

Fig. 5 Quality of composting products

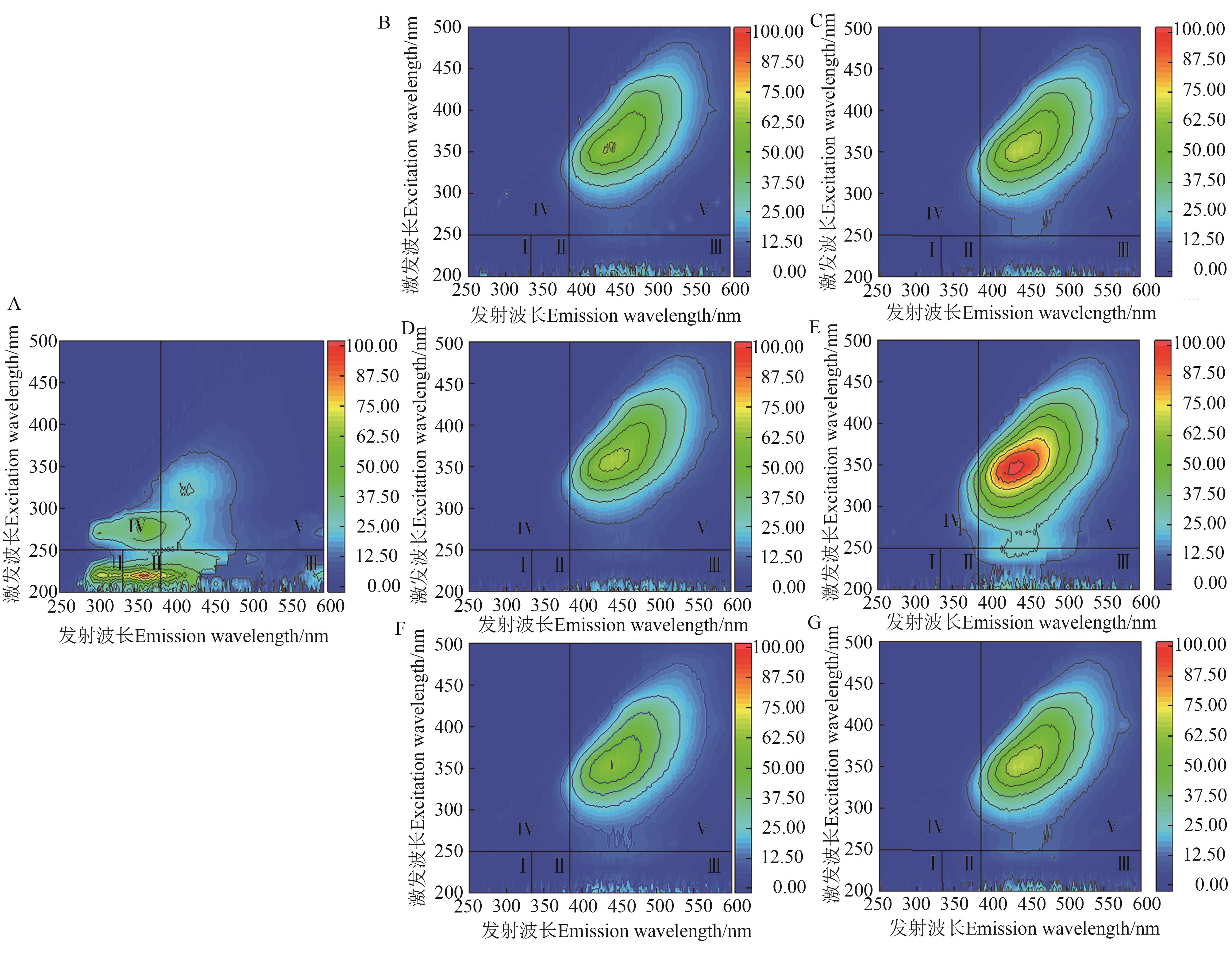

图6 堆肥过程中DOM的三维荧光光谱变化A：物料初始DOM状态；B和C、D和E、F和G分别为T1、T2、T3处理第15和21 天的DOM状态。Ⅰ—类酪氨酸；Ⅱ—类色氨酸；Ⅲ—类富里酸；Ⅳ—可溶性微生物代谢产物；Ⅴ—类胡敏酸物质；图右侧标尺为荧光强度

Fig. 6 3D fluorescence spectral change of DOM during compostingA： Initial DOM state of the material； A and B， C and D， E and F are the DOM states of T1， T2， T3 treatments for the 15th and 21th day， respectively. Ⅰ—Tyrosine-like；Ⅱ—Tryptophan-like；Ⅲ—Fulvic acid-like；Ⅳ—Soluble microbial byproduct；Ⅴ—Humic acid-like components； the bar in the right of each figure is fluorescence intensity

表3 不同处理产肥率

Table 3 Fertilizer yield under different treatments

处理 Treatment	物料干质量Dry material quality/kg		产肥率 Fertilizer production rate/%
处理 Treatment	初始Initial	堆肥后After composting	产肥率 Fertilizer production rate/%
T1	14.90±0.22 b	11.32±0.34 b	76.00±3.41 b
T2	14.90±0.22 b	11.02±0.28 b	74.00±2.97 b
T3	18.74±0.42 a	15.06±0.49 a	80.00±0.81 a

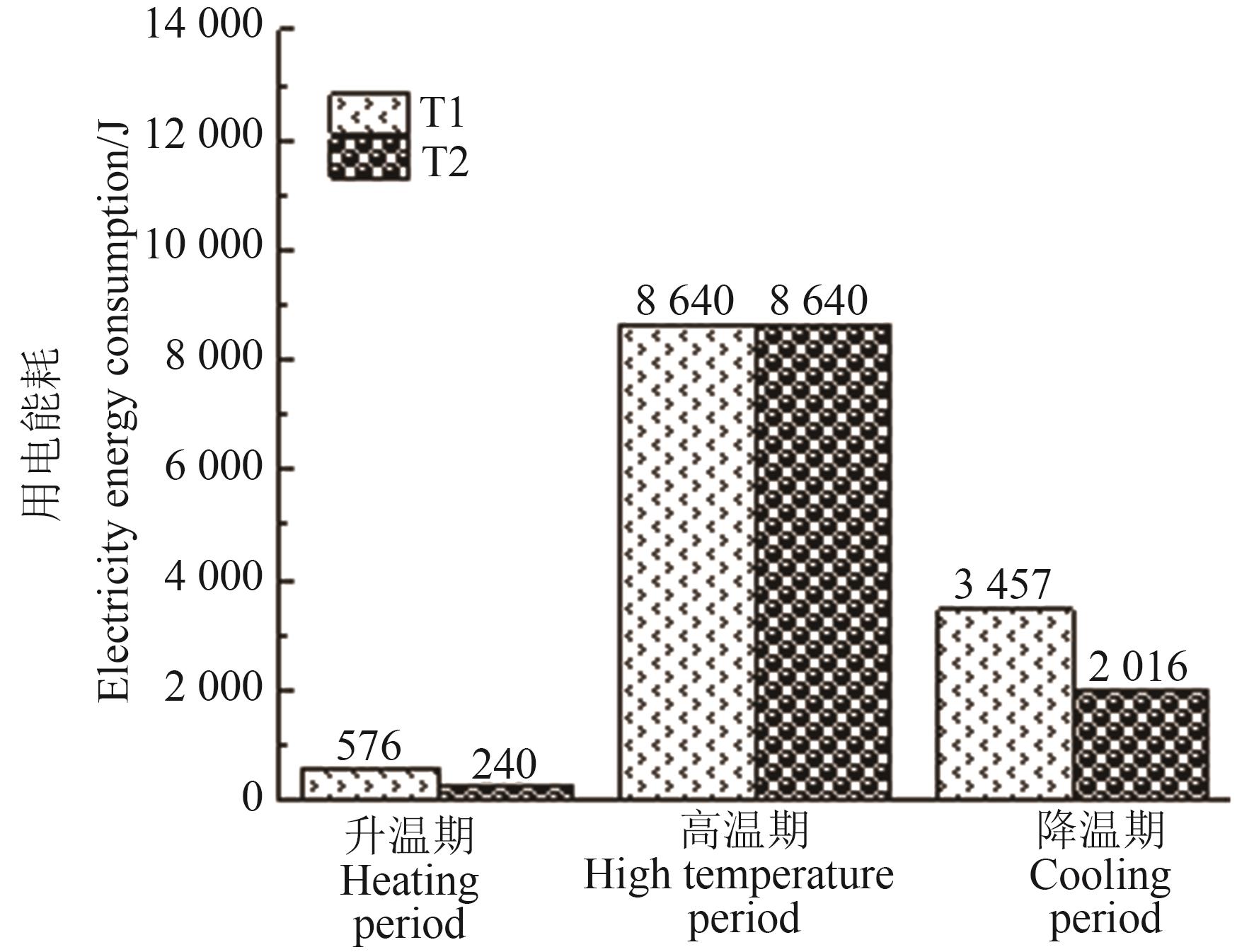

图6 堆肥过程中用电能耗

Fig.6 Energy consumption in composting process

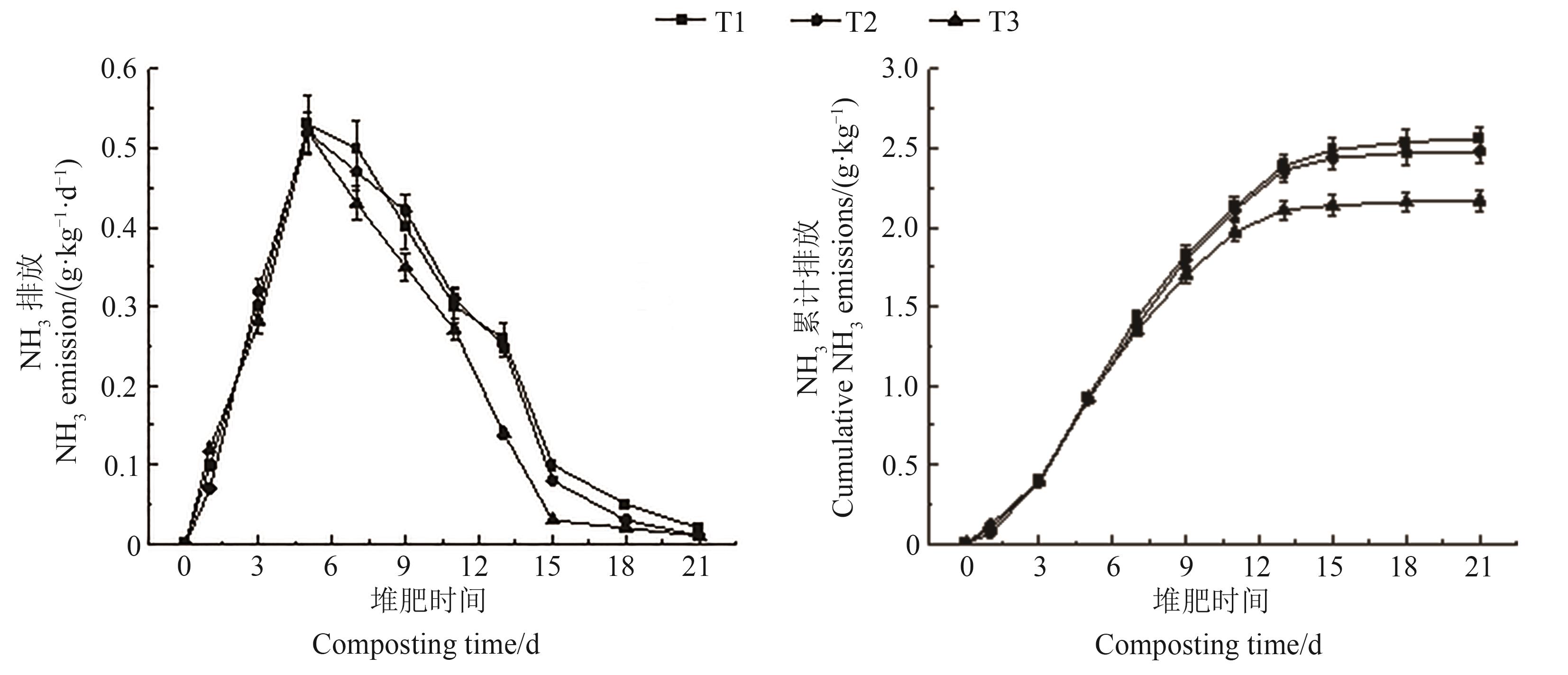

图7 堆肥过程中NH3排放及累计排放量

Fig. 7 NH3 emission and cumulative emission during composting

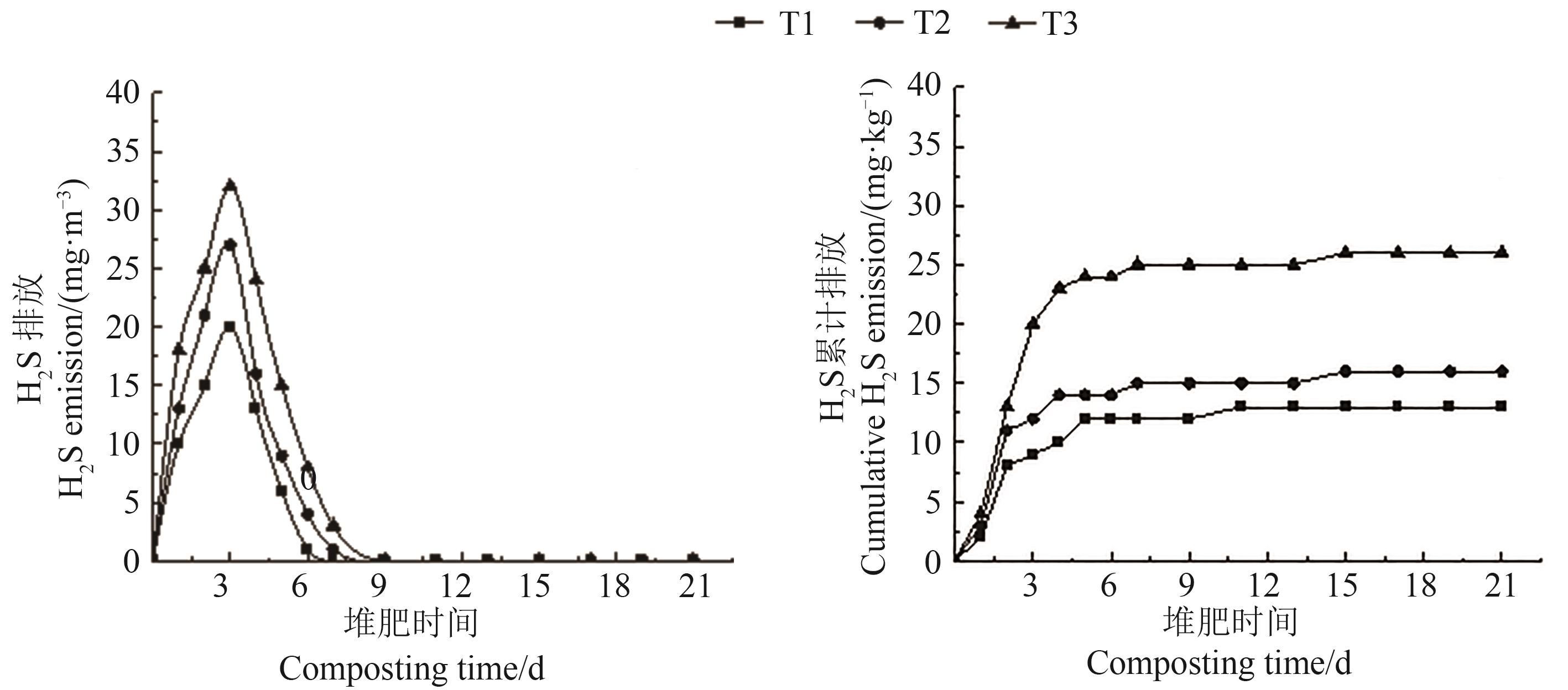

图8 堆肥过程中H2S排放及累计排放量

Fig. 8 H2S emission and cumulative emission during composting

参考文献 32

[1]	BARI Q H, KOENIG A. Effect of air recirculation and reuse on composting of organic solid waste [J]. Resour. Conserv. Recycl., 2001,33(2):93-111.
[2]	张锐,韩鲁佳.好氧堆肥反应器系统在废弃物处理中的应用[J].农机化研究,2006,28(10):173-175, 178.
	ZHANG R, HAN L J. Large-scale aerobic composting reactor systems and its application in residues treatment [J]. J. Agric. Mech. Res., 2006, 28(10):173-175, 178.
[3]	冯明谦,蒋培志.卧式发酵滚筒的设计与研究[J].环境卫生工程,2000(3):97-100.
	FENG M Q, JIANG P Z. Design and study of horizontal composting cylinder [J]. Environ. Sanitation Eng., 2000(3):97-100.
[4]	马蔷,王奎升,李秀金,等.用于城市生活垃圾好氧堆肥的滚筒式生物反应器研制[J].环境工程,2013,31(3):110-112, 138.
	MA Q, WANG K S, LI X J, et al.. Design of the rotary drum biological reactor used in municipal solid waste composting [J]. Environ. Eng., 2013,31(3):110-112, 138.
[5]	周艳文.动态滚筒式污泥堆肥一体化设备的研制和应用[J].污染防治技术,2016,29(2):49-52.
[6]	于海涵,肖爱平.滚筒发酵实验设备设计及实验研究[J].林业机械与木工设备,2020,48(1):13-17.
	YU H H, XIAO A P. Design and experimental study of drum fermentation experimental equipment [J]. For. Mach. Woodwork. Equip., 2020,48(1):13-17.
[7]	程红胜,隋斌,孟海波,等.滚筒式沼渣好氧发酵反应器中试装置设计与性能试验[J].农业工程学报,2018,34(24):224-231.
	CHENG H S, SUI B, MENG H B, et al.. Design and performance test of aerobic fermentation rotary reactorpilot plant for biogas residue [J]. Trans. Chin. Soc. Agric. Eng., 2018,34(24):224-231.
[8]	施亮.滚筒式智能型好氧堆肥反应器的设计及试验研究[D].合肥:安徽农业大学,2023.
	SHI L. Design and experimental study of a drum type intelligent aerobic composting reactor [D]. Hefei: Anhui Agricultural University, 2023.
[9]	邹亚东,程红胜,沈玉君,等.不同抗粘抄板对滚筒式堆肥反应器堆肥效果影响[C]//中国环境科学学会2021年科学技术年会,2021:6.
	ZOU Y D, CHENG H S, SHEN Y J, et al.. Effect of different anti flights on composting effect of drum composting reactor [C]// Chinese Society for Environmental Science 2021 Annual Scientific and Technical Conference, 2021:6.
[10]	王盼柳,曹哲,李浩,等.利用牛粪生产垫料的滚筒结构优化[J].中国农业大学学报,2021,26(9):189-196.
	WANG P L, CAO Z, LI H, et al.. Structure optimization of a drum recycling solid cow manure as bedding [J]. J. China Agric. Univ., 2021,26(9):189-196.
[11]	张远澄.污泥与绿化废物滚筒反应器好氧堆肥过程控制研究[D].北京:清华大学,2014.
	ZHANG Y C. The composting process control of sewage sludge and greening waste in a rotary drum reactor [D]. Beijing: Tsinghua University, 2014.
[12]	刘幸福,盛金良.大型滚筒式好氧发酵反应器筒体及支撑件结构分析[J].机械设计与制造,2016(3):1-4, 9.
	LIU X F, SHENG J L. The structural analysis of shell and support parts of large-scale aerobic fermentation rotary reactor [J]. Mach. Des. Manuf., 2016(3):1-4, 9.
[13]	REN X N, WANG Q, LI R H, et al.. Effect of clay on greenhouse gas emissions and humification during pig manure composting as supported by spectroscopic evidence [J/OL]. Sci. Total Environ., 2020,737:139712 [2024-02-10]. .
[14]	徐鹏翔,王越,杨军香,等.好氧堆肥中通风工艺与参数研究进展[J].农业环境科学学报,2018,37(11):2403-2408.
	XU P X, WANG Y, YANG J X, et al..Advances in ventilation systems and parameter choices during aerobic composting [J]. J. Agro-Environ. Sci., 2018, 37(11):2403-2408.
[15]	周飞梅,曹志勇,汤治,等.采用离子色谱法检测电除尘飞灰中的氨含量[J].浙江电力,2014,33(6):43-47.
	ZHOU F M, CAO Z Y, TANG Z, et al..Application of ion-chromatography method in detecting ammonia content in electrostatic precipitator fly ash [J].Zhejiang Electr. Power, 2014, 33(6):43-47.
[16]	郭嘉,陈玉柱.亚甲基蓝分光光度法测定水中硫化物不确定度的评定研究[J].黑龙江科学,2023,14(18):52-55.
	GUO J, CHEN Y Z. Uncertainty evaluation of methylene blue spectrophotometry for determination of sulfide in water [J]. Heilongjiang Sci., 2023, 14(18):52-55.
[17]	李季,彭生平.堆肥工程实用手册[M]. 第2版.北京:化学工业出版社,2011:1-216.
[18]	田有国,李季,沈其荣,等. 有机肥料: [S].北京:中国标准出版社,2021.
[19]	李季,杨军香,李国学,等. 畜禽粪便堆肥技术规范: [S].北京:中国农业出版社,2019.
[20]	COOK K L, RITCHEY E L, LOUGHRIN J H,et al.. Effect of turning frequency and season on composting materials from swine high-rise facilities [J]. Waste Manage., 2015, 39:86-95.
[21]	ZENG J F, SHEN X L, YIN H J, et al..Oxygen dynamics, organic matter degradation and main gas emissions during pig manure composting: effect of intermittent aeration [J/OL]. Bioresour. Technol., 2022,361:127697 [2024-02-10]..
[22]	GABHANE J, WILLIAM S P, BIDYADHAR R, et al.. Additives aided composting of green waste: Effects on organic matter degradation, compost maturity, and quality of the finished compost [J]. Bioresour. Technol., 2012, 114:382-388.
[23]	赵世淏,程琼仪,孟海波.不同通风工艺对猪粪好氧堆肥腐熟效果的影响[J].环境工程,2023,41():1242-1246.
	ZHAO S H, CHENG Q Y, MENG H B. Effects of different ventilation techniqes on the decomposition effect of aerobic composting of pig manure [J]. Environ. Eng., 2023, 41(S2):1242-1246.
[24]	YU Z P, HUANG Q, XIE X H, et al.. Experimental study and failure criterion analysis of plain concrete under combined compression-shear stress [J]. Constr. Build. Mater., 2018,179:198-206.
[25]	XIN L Q, QIN Y, LOU T R, et al.. Rapid start-up and humification of kitchen waste composting by an innovative biodrying-enhanced process [J/OL]. Chem. Eng. J., 2023,452:139459 [2024-02-10]. .
[26]	张玉冬,张红玉,顾军,等.翻堆频率对厨余垃圾堆肥过程中H₂S和NH₃排放的影响[J].环境工程,2016,34(4):127-131.
	ZHANG Y D, ZHANG H Y, GU J, et al.. Effect of turning frequency on emission of H₂S and NH₃ in kitchen waste composting [J]. Environ.Eng., 2016, 34(4):127-131.
[27]	沈玉君,孟海波,张朋月,等.猪粪堆肥挥发性有机物的产生规律与影响因素[J].农业工程学报,2017,33(5):211-216.
	SHEN Y J, MENG H B, ZHANG P Y, et al.. Generation law and influencing factors of volatile organic compounds during pig manure composting [J]. Trans. Chin. Soc. Agric. Eng., 2017, 33(5):211-216.
[28]	衣淑娟,邵浩宸,沈玉君,等.牛粪和玉米秸秆混合好氧堆肥过程分层规律[J].农业工程学报,2023,39(3):180-189.
	YI S J, SHAO H C, SHEN Y J, et al.. Stratification law of the mixed aerobic composting process of cow manure and maize stovers [J]. Trans. Chin. Soc. Agric. Eng., 2023, 39(3):180-189.
[29]	沈玉君,张朋月,孟海波,等.通风方式对猪粪堆肥主要臭气物质控制的影响研究[J].农业工程学报,2019,35(7):203-209.
	SHEN Y J, ZHANG P Y, MENG H B, et al.. Effects of ventilation modes on control of main odor substances in pig manure composting [J]. Trans. Chin. Soc. Agric. Eng., 2019, 35(7):203-209.
[30]	张玉冬,张红玉,顾军,等.通风量对厨余垃圾堆肥过程中H₂S和NH₃排放的影响[J].农业环境科学学报,2015,34(7):1371-1377.
	ZHANG Y D, ZHANG H Y, GU J, et al.. Influence of ventilation on H₂S and NH₃ emissions during kitchen waste compositing [J]. J. Agro-Environ. Sci., 2015, 34(7):1371-1377.
[31]	路一鸣,李军,代雨,等.翻堆对好氧堆肥腐殖质电子转移能力的影响[J].中国环境科学,2022,42(12):5748-5757.
	LU Y M, LI J, DAI Y, et al.. Effects of turning on the electron transfer capacity of humic substances in aerobic composting [J]. China Environ. Sci., 2022, 42(12):5748-5757.
[32]	曹玉博,张陆,王选,等.畜禽废弃物堆肥氨气与温室气体协同减排研究[J].农业环境科学学报,2020,39(4):923-932.
	CAO Y B, ZHANG L, WANG X, et al.. Synergistic mitigation of ammonia and greenhouse gas emissions during livestock waste composting [J]. J. Agro-Environ. Sci., 2020, 39(4):923-932.
